SKU # 1000136542

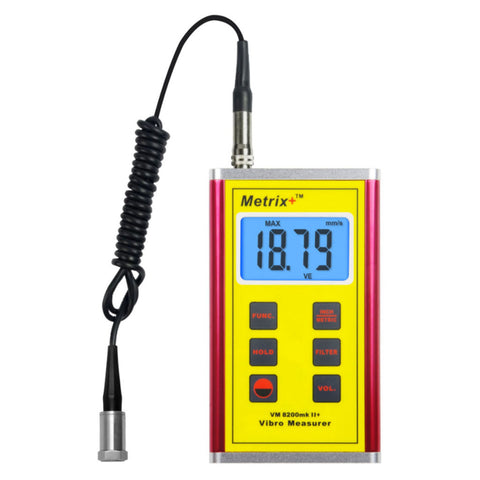

Metrix Plus Vibration Meter VM 8200mkII+

Metrix Plus Vibration Meter VM 8200mkII+

Visit the Metrix Plus Store

₹ 28,730.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Sturdy metal body Vibration Meter with measuring range upto 400mm/s and wide frequency range in acceleration mode

  • Features

  • Individual high-quality accelerometer for accurate and repeatable measurement

  • Used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines

  • Acceleration, velocity and displacement measurements

  • Sturdy metal body for rugged operation

  • Wide frequency range in acceleration mode

  • RPM and frequency measurements

  • Backlit LCD display

  • Applications

  • A vibration meter is used in manufacturing for machine condition monitoring, product testing and quality assurance

  • A vibration meter also can be used in civil engineering to measure the vibration of structures such as buildings, roads and bridges

  • Measuring Principle

  • Vibration Meter employs a piezoelectric transducer to measure vibrations of a material and displays it in one or more of displacement, velocity or acceleration values for analyzing

ProductSpecification

Brand

Metrix Plus

Product Type

Vibration Meter

Product Model

VM 8200mkII+

Display

4-digit backlit LCD

Transducer

Piezo electric accelerometer

Velocity

0.01 ~ 400.0 mm/s ; 0.000 ~ 16 inch/s

Acceleration

0.1 ~ 400.0 m/s2, 0.3 ~ 1312 ft/s2 equivalent peak

Displacement

0.001 ~ 4.000 mm equivalent peak-peak; 0.04 ~ 160.0 mil

RPM

60 ~ 99,990 r/min

Frequency

1 ~ 20kHz

Frequency Range For Measuring

Acceleration

Velocity

Displacement

Accuracy

+5% of reading + 2d

APO

Enabled by user

Maximum Hold

Peak Hold

Analog Output

AC output 0 ~ 2.0V peak full scale(load resistance above 10k)

Power Supply

1.5V x 2 AA battery

Operating Condition

Temperature : 0-50oC ; Humidity : below 95% RH

Standard Accessories

Powerful rare earth magnet, measurement probe, stinger probe(cone), stinger probe(ball), manual, batteries, carrying case

Optional Accessories

PC interface

Dimensions

130 x 70 x 30 mm

Weight

305 g

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

10 x 7 x 3

Unit Of Measurement

1 Piece

Weight

0.305 kg

Generic Type

Vibration Meters

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
