SKU # 1000015222

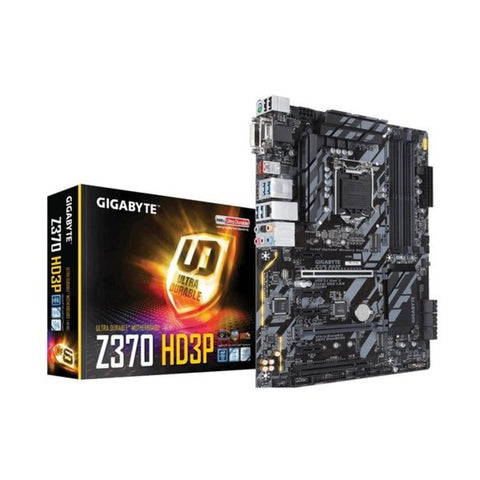

Gigabyte Motherboard Z370-HD3P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Supports 8th Gen Intel® Core™ Processors
-
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
-
Intel® Optane™ Memory Ready
-
ASMedia 3142 USB 3.1 Gen2 with USB Type-C™ and Type-A
-
Front USB 3.1 Gen1 Type-C™ Header
-
2-Way CrossFire™ Multi-Graphics with PCIe Armor and Ultra Durable™ Design
-
ALC1220 120dB SNR HD Audio with Smart Headphone Amp
-
Intel® Gigabit LAN with cFosSpeed Internet Accelerator Software
-
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
-
Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
-
RGB FUSION supports RGB LED strips in 7 colors
-
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
-
Anti-Sulfur Resistors Design
-
APP Center Including EasyTune™ and Cloud Station™ Utilities
-
Memory
-
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
-
Dual channel memory architecture
-
Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
-
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
-
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-
Support for Extreme Memory Profile (XMP) memory modules
-
Onboard Graphics
-
Integrated Graphics Processor-Intel® HD Graphics support
-
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
-
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter -
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2 -
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB -
Storage Interface
-
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)\
-
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G)
-
6 x SATA 6Gb/s connectors
-
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors -
Intel® Optane™ Memory Ready
-
USB
-
Chipset+ASMedia® USB 3.1 Gen 2 Controller
-
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
-
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
-
Chipset
-
1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
-
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
-
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Product Specification
|
Brand |
Gigabyte |
|
Chipset |
Intel® Z370 Express Chipset |
|
CPU |
Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package. L3 cache varies with CPU |
|
LAN |
Intel® GbE LAN chip (10/100/1000 Mbit) |
|
Audio |
Realtek® ALC1220 code High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
Bundle Software |
Norton® Internet Security (OEM version) cFosSpeed |
|
Operating System |
Support for Windows 10 64-bit |
|
Form Factor |
ATX Form Factor; 30.5cm x 22.5cm |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Z370-HD3P |
Manufacturer Details |
A-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
Packer Details |
Gigabyte Technology India Private Limited B-411, 4th Floor, Bsel Tech Park Plot No. 39/5 & 39/5A, Opposite Vashi Railway Station, Vashi Navi Mumbai 400705 |
Importer Details |
Gigabyte Technology India Private Limited B-411, 4th Floor, Bsel Tech Park Plot No. 39/5 & 39/5A, Opposite Vashi Railway Station, Vashi Navi Mumbai 400705 |
Country of Origin |
Taiwan |
