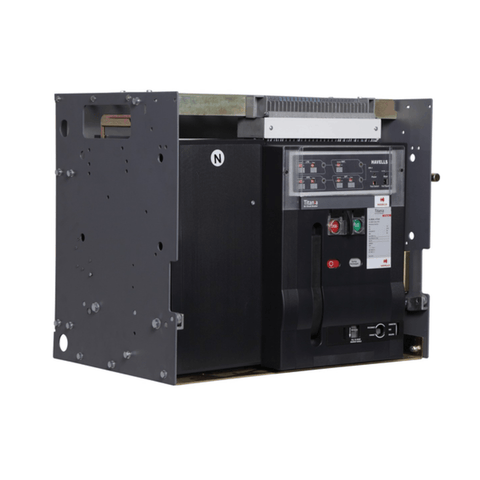

Havells Manual Fixed ACB With Four Pole Having Microprocessor Based Release IPR 1 Ranging From 630A – 4000A

Havells Manual Fixed ACB With Four Pole Having Microprocessor Based Release IPR 1 Ranging From 630A – 4000A


₹ 74,420.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Range 630-4000A, Breaking Capacity 50-100kA in TP & FP

Different Current Rating provide selection option depending on varied Load Conditions

Basic Version

Circuit Breaker offers five basic protections such as Over Load, Short Circuit, Instantaneous, Ground fault and Function Blocking

Allows Current & Time Adjustment for all functions

The settings offer flexibility of usage for different applications

DETAILED FEATURES

Ground Fault Protection Available

Facility of Ground Fault Protection available

Precise and Ease of Adjustment

Current and Time Setting adjustment offered by Dip Switches

Function Check Facility Available

It allows to individually check the performance of respective functions of the release

Current & Time Setting Available

Setting of Current & Time Delay is totally error free & is user friendly

Monitors & Measures Actual Current

It offers True RMS sensing with total immunity to system disturbances

Close and Precise protection

It is Equipped with 16 bit micro controller, these are far more reliable and have high level of repeat accuracy when compared to thermal magnetic and static releases

No external Power Required

It is Self-Powered by built in current transformer

LED Indications Available

It gives LED indication for all the tripping faults

Product Specification

TECHNICAL SPECIFICATION

Basic Features

Ref. Standard: IS / IEC 60947-2

Rated operational voltage: 690V AC / 250V AC

Rated Insulation Voltage: 1000V AC

Rated impulse voltage: 12kV

Utilisation Category: B

Rated frequency: 50/60Hz

Operating altitude: 2000 metres

Humidity: 0 – 90%

Rating Range: 630A – 4000A

No. of Poles: Four

Breaking Capacity Withstand Capacity: Icu = Ics = Icw = 50kA & 65kA for 630A - 2000A; Icu = Ics = Icw = 75kA for 2500A; Icu = Ics = Icw = 100kA for 3200A – 4000A

Version: Fixed Type

Type of Operation: Manual

Current Rating

Breaking Capacity

Ordering Code

Manual

(A)

415V (kA)

Fixed

630

50

IHAFE11060**#

800

50

IHAFE11080**#

1000

50

IHAFE11100**#

1250

50

IHAFE11120**#

1600

50

IHAFE11160**#

2000

50

IHAFE11200**#

2500

75

IHAFH11250**#

3200

100

IHAFV11320**#

4000

100

IHAFV11400**#
