SKU # 1000142559

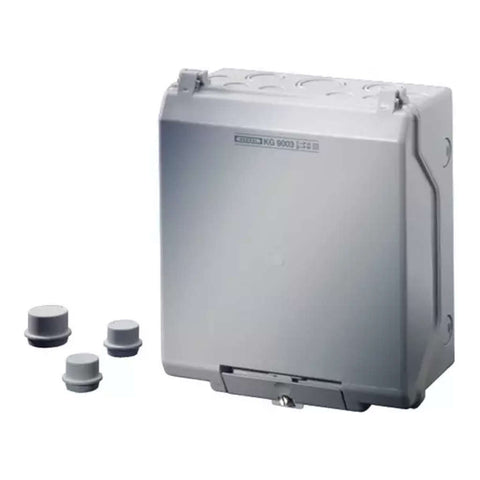

Hensel Thermal Plastic Box KG 9003IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
KG Empty boxes
-
For installation equipment on DIN rails or mounting plates
Product Specification
|
Brand |
Hensel |
|
Product Type |
Junction Box |
|
Product Model |
KG 9003IN |
|
Electrical Properties |
|
|
Rated Insulation Voltage |
Ui = 1000 V |
|
Protection Class |
II |
|
Power Dissipation Capability Pde |
Pde = 17.6 W |
|
Temperature Difference |
40 K |
|
Mechanical Properties |
|
|
Type Of Lid Fastening |
Tool operation |
|
Type Of Cover |
Hinged lid |
|
Transparent Cover |
No |
|
IP Degree Of Protection |
IP66IP
degree of protection of the included Grommets 2x ESM 25: IP55,
sealing range 9 mm – 17 mm |
|
Impact Strength |
IK08 |
|
Maximum Load |
|
|
Mounting Plate / Din Rail |
1.6 kg |
|
Lid |
1.6 kg |
|
Material Thickness |
|
|
Lid, Bottom Part |
3 mm |
|
Ambient Conditions |
|
|
Application Area |
Indoor installation |
|
Ambient Temperature |
-25 °C up to +60 °C |
|
Relative Humidity |
≤ 50 % at 40 °C, ≤ 100 % at 25 °C |
|
Material Properties |
|
|
Material |
Polystyrene |
|
Temperature Resistance |
-25 °C up to +60 °C |
|
Halogen-Free |
Yes |
|
Silicone-Free |
No |
|
Dimensions |
|
|
Mounting Height |
205 mm |
|
Mounting Width |
182 mm |
|
Height |
253 mm |
|
Width |
217 mm |
|
Depth |
115 mm |
|
Net Weight |
0.66 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) - L x W x H |
25.3 x 21.7 x 11.5 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.66 kg |
|
Generic Type |
Junction Box |
|
Manufacturer Details |
Hensel
Electric India Pvt Ltd info@hensel-electric.in |
|
Packer Details |
Hensel
Electric India Pvt Ltd info@hensel-electric.in |
|
Country Of Origin |
India |
