SKU # 1000096989

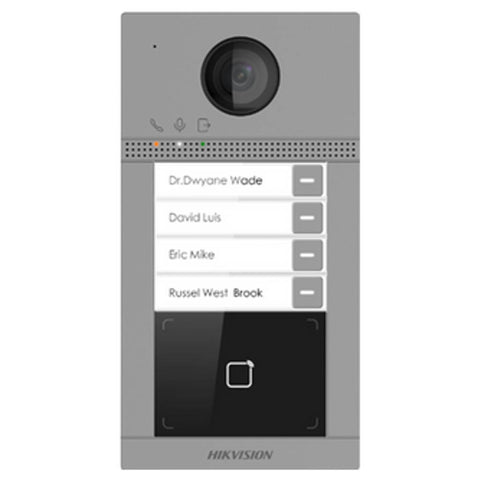

Hikvision Pro Series Video Intercom Villa Door Station DS-KV8413-WME1
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Standard PoE
-
2 MP HD camera
-
Noise suppression and echo cancellation
-
Low illumination
-
Access control functions
-
Tamper-proof
-
Configuration remotely via Web
-
2.4 GHz Wi-Fi
-
Protection level: IK08
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Video Intercom |
|
Product Code |
DS-KV8413-WME1 |
|
Series |
Pro |
|
System Parameters |
|
|
Operation System |
Embedded Linux operation system |
|
Operation Method |
4-button |
|
Flash |
32 M |
|
Ram |
256 M |
|
Video Parameters |
|
|
Camera |
2MP HD camera |
|
Night Vision |
Low illumination IR supplement mode:3 m |
|
Blc |
Support |
|
Dnr |
Support |
|
Wdr |
True WDR |
|
Field Of View |
Horizontal: 129° Vertical: 75° |
|
Video |
|
|
Compression |
H.264 |
|
Standard |
|
|
Stream |
Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps |
|
Resolution |
Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
|
Motion Detection |
Support |
|
Anti-Flicker Frequency |
50 Hz, 60 Hz |
|
Audio Parameters |
|
|
Audio Intercom |
Two-way audio communication |
|
Audio Input |
Built-in omnidirectional microphone |
|
Audio Output |
Built-in loudspeaker |
|
Audio Compression Standard |
G.711 U |
|
Audio Compression Rate |
64 Kbps |
|
Audio Quality |
Noise suppression and echo cancellation |
|
Network Parameters |
|
|
Wired Network |
10/100 Mbps Ethernet |
|
Network Protocol |
TCP/IP, RSTP |
|
Access Control Par |
ameters |
|
Reading Frequency |
13.56 MHz |
|
Card Type |
Mifare card |
|
Interfaces |
|
|
Rs-485 |
1 |
|
Wi-Fi |
2.4G Wi-Fi |
|
Debugging Port |
1 |
|
Tf Card |
0 |
|
Door Contact Input |
2 |
|
Exit Button Input |
2 |
|
Grounding |
1 |
|
Physical Button |
4 |
|
Tamper Switch |
1 |
|
Door Control |
2, breakdown voltage: 36 V |
|
Performances |
|
|
Card Capacity |
Max.10000 |
|
User Capacity |
Max.2000 |
|
Linked Indoor Station |
3 |
|
Linked Sub Door Station |
Max.16 |
|
Linked Doorphone |
Max. 8 |
|
Protocol |
ISAPI, RTSP, STMP, SNMP |
|
Unlock Door |
Unlock by presenting cards, unlock via Client Software, unlock via App, unlock via indoor station |
|
General |
|
|
Protection Level |
IP65, IK08 |
|
Indicator |
3 |
|
Power Supply |
IEEE802.3af, standard PoE 12 VDC |
|
Power Consumption |
< 10 W |
|
Working Temperature |
-40° C to 53° C(-40° F to 127.4° F) |
|
Working Humidity |
10% to 95% |
|
Installation |
Surface mounting/ Flush mounting |
|
Dimension |
174 mm × 91 mm × 29 mm |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Video Intercom Kit |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
