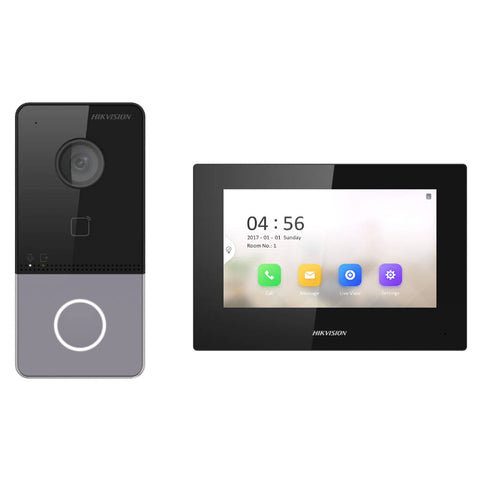

Hikvision Video Intercom Network Kit DS-KIS605-P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Indoor Station
-
User friendly design
-
7-inch colorful touch screen with resolution 1024 × 600
-
Standard PoE
-
Views live video of door stations and linked cameras
-
Villa Door Station
-
Standard PoE
-
2 MP HD Camera
-
Noise suppression and echo cancellation
-
Low illumination
-
Access control functions
-
Tamper-proof
-
Configuration remotely via Web
-
2.4 GHz Wi-Fi
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Video Intercom |
|
Product Code |
DS-KIS605-P |
|
Door Station |
|
|
Camera |
2MP HD camera |
|
Resolution |
Main stream: 1920 × 1080p, 720pSub stream: 704 ×576 |
|
Night Vision |
Low illumination IR supplement mode:3 m |
|
Wdr |
True WDR |
|
Field Of View |
Horizontal: 129 ° Vertical: 75° |
|
Video Compression Standard |
H.264 |
|
Stream |
Main stream: 1080p@30fps,720p@25fps Sub stream: D1@25fps |
|
Motion Detection |
Support |
|
Blc |
Support |
|
Dnr |
Support |
|
Anti-Flicker Frequency |
50 Hz, 60 Hz |
|
Door Station |
|
|
Audio Input |
Built-in omnidirectional microphone |
|
Audio Output |
Built-in loudspeaker |
|
Audio Quality |
Noise suppression and echo cancellation |
|
Audio Compression Standard |
G.711 U |
|
Audio Compression Rate |
64 Kbps |
|
Audio Intercom |
Two-way audio communication |
|
Door Station |
|
|
Rs-485 |
1 |
|
Alarm Input |
4 |
|
Debugging Port |
1 |
|
Grounding |
1 |
|
Tamper Switch |
1 |
|
Door Station |
|
|
Power Consumption |
< 10 W |
|
Working Temperature |
-40 ° C to +53 ° C(-40° F to 127.4° F) |
|
Working Humidity |
10% to 95% |
|
Dimension |
138 mm × 65 mm × 27 mm |
|
Installation |
Surface mounting |
|
Protection Level |
IP65 |
|
Button |
1 |
|
Indicator |
2 |
|
Power Supply |
IEEE802.3af, standard PoE 12 VDC |
|
Door Station |
|
|
Operation System |
Embedded Linux operation system |
|
Operation Mode |
Single-button |
|
Flash |
16 M, 32 M |
|
Ram |
256 M |
|
Door Station |
|
|
Relay |
1 |
|
Reading Frequency |
13.56MHz |
|
Door Station |
|
|
Network Protocol |
TCP/IP, RSTP |
|
Wired Network |
10/100 Mbps Ethernet |
|
Indoor Station |
|
|
Display Screen |
7-inch TFT LCD |
|
Display Resolution |
1024 × 600 |
|
Operation Method |
Capactive touch |
|
Indoor Station |
|
|
Audio Input |
Build-in omnidirectonal microphone |
|
Audio Output |
Built-in loudspeaker |
|
Audio Quality |
Noise suppression and echo cancellation |
|
Audio Compression Standard |
G.711U, G.711A |
|
Audio Compression Rate |
64 Kbps |
|
Indoor Station |
|
|
Network Interface |
RJ45, standard PoE for power supply |
|
Rs-485 |
1(Reserved) |
|
Alarm Input |
8 zones |
|
Relay Output |
2(Reserved) |
|
Power Input |
2 pins |
|
Indoor Station |
|
|
Power Supply |
12 VDC or standard PoE |
|
Power Consumption |
≤ 6 W |
|
Working Temperature |
-10 ° C to 50 ° C (-14 °F to 122 °F) |
|
Working Humidity |
0% to 90% |
|
Installation |
Wall mounting |
|
Indoor Station |
|
|
Operation System |
Embedded operation system RTOS |
|
Memory |
64 MB |
|
Flash |
16 MB |
|
Indoor Station |
|
|
Wired Network |
10/100 Mbps self-adaptive |
|
Protocol |
TCP/IP, SIP, RTSP |
|
Dimensions (w × H × D) |
200 mm × 140 mm × 15.1 mm (7.87" × 5.51" × 0.59") |
|
Weight |
683 g (with packaging) 355 g (without packaging) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Video Intercom Kit |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
