Out of Stock!
SKU # 1000134819

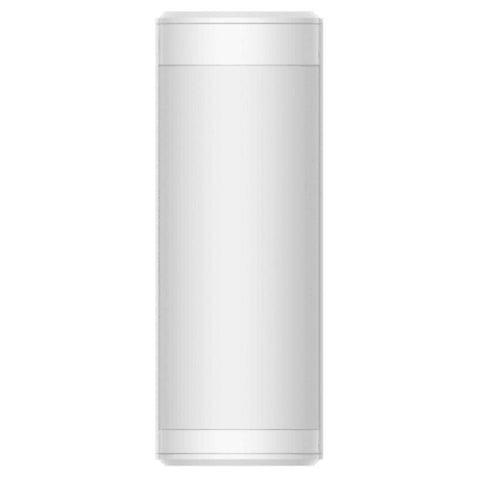

Hikvision Wireless Triple Signal AM Detector DS-PDTT15AM-LM-WB
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
PDTT15AM is a unique two-way wireless outdoor triple-siganl detector with anti-masking feature, designed to protect the outdoor areas of your property in most harsh environment and alarm before an intruder breaks in your house
-
Key Features
-
90°@180° adjustable coverage
-
IP65 weather resistance for outdoor application
-
Active IR anti-masking
-
Multiple enrollment methods and easy installation
-
Frequency hopping against jamming for reliable transmission
Product Specification
| Brand | Hikvision |
| Product Type | Triple Signal Detector |
| Product Model | DS-PDTT15AM-LM-WB |
| Detection Performance | |
| Detection Method | Passive infrared, microwave |
| Sensor Model | SFG323-711 |
| Detection Range | 15 m |
| Detection Angle | 90° @ 180°adjustable |
| Detection Zones | 92 |
| Detectable Speed | 0.3 to 2m/s |
| Sensitivity | Auto, low |
| White Light Filter | 10000lux |
| Pet Immunity | 40 kg |
| Microwave Frequency | 24 GHz (24.15 to 24.25 GHz) |
| Digital Temperature Compensation | Support |
| Anti-Masking | Support |
| Adaptable Coverage | Support, Pattern mask included |
| Feature | |
| Digital Processing | Tri-Signal logic |
| Sealed Optics | Support |
| Tamper Protection | Front, rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Anti-Sway Analytics | Support |
| Interface | |
| Power Switch | Power up enrolling |
| LED Indicator | Green(top PIR), red(microwave), orange(bottom PIR), green+orange(mask), blue(alarm) |
| Transmission | |
| Transmission Technology | Tri-X wireless |
| Transmission Method | Two-Way RF wireless |
| Transmission Frequency | 433 MHz |
| Transmission Security | AES-128 encryption |
| Transmission Range(Free Space) | 1 km |
| Frequency Hopping | Support |
| Enrolling Method | Power up, remote ID, QR code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures) |
| Power Supply | Battery powered |
| Battery Type | CR123A × 5 |
| Typical Voltage | 3 V |
| General | |
| Operation Temperature | -25°C to 60°C (-13°F to 140°F) |
| Storage Temperature | -25°C to 60°C (-13°F to 140°F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Mounting Method | Wall |
| Application Scenario | Outdoor |
| Mounting Height | 0.8 to 1.2 m |
| Dimension(WxHxD) | 75 mm × 202 mm × 73 mm |
| Weight | 600 g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 7.5 x 20.2 x 7.3 |
| Unit of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Type | Triple Signal Detector |
| Manufacturer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Packer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Country of Origin | India |
