SKU # 1000136622

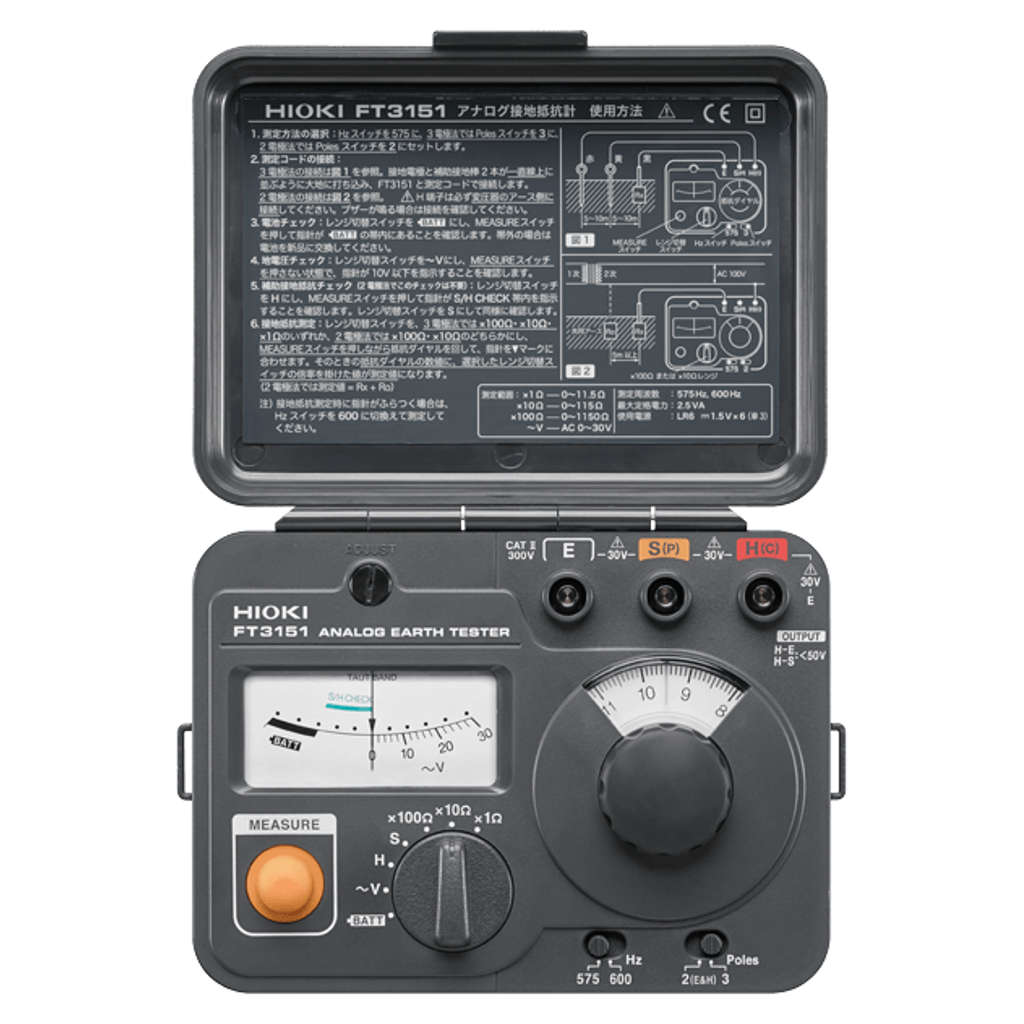

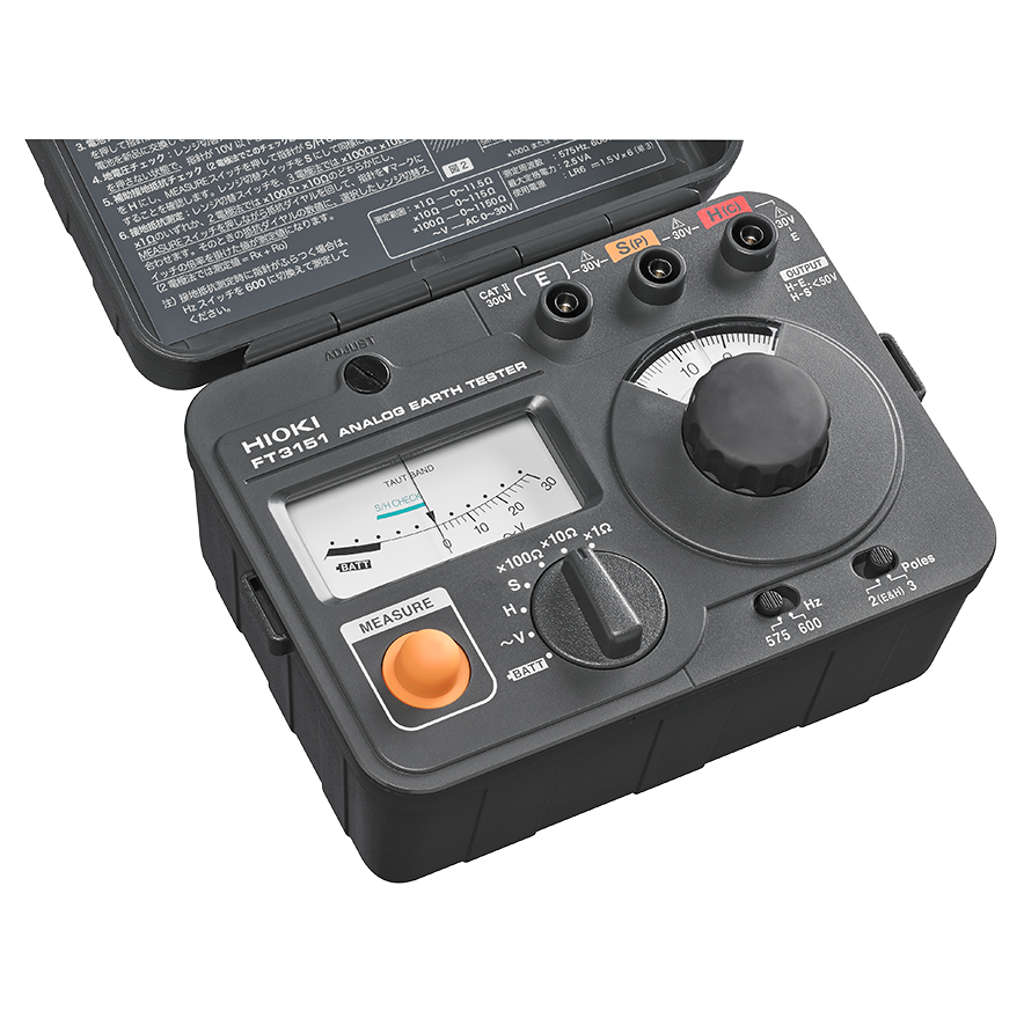

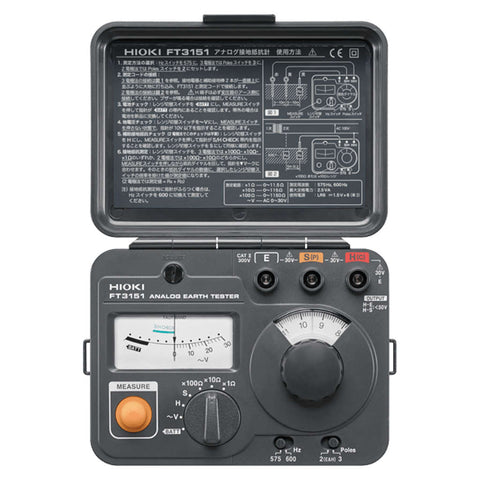

Hioki Analog Earth Tester FT3151

Hioki Analog Earth Tester FT3151

Visit the Hioki Store

₹ 41,980.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment

  • The FT3151 Analog EarthTester uses the AC phase differential system to measure earthing resistance, which assures that accurate measurements are unaffected by earth voltage and auxiliary earthing resistance

  • New innovate cord winders make clean up a breeze

  • Three-electrode method, Two-electrode method (Simple Measurement)

  • Wide measurement range for 0 to 1150 Ω, based on EN standard

  • Switchable measurement frequency to reduce the effects of power supply harmonics

  • Dramatically faster setup: Comes with improved earthing rods and cord winders

ProductSpecification

Brand

Hioki

Product Type

Earth Tester

Product Model

FT3151

Measurement System

AC potentiometer method, Three-electrode method/ two-electrode method (switchable)
Measuring frequency: 575 Hz/ 600 Hz
Measurement current: Three-electrode method: 15 mA rms or less; Two-electrode method: 3 mA rms or less
Open circuit voltage: 50 V AC rms or less

Measurement Range

10 Ω (0 to 11.5 Ω)

100 Ω (0 to 115 Ω)

1000 Ω (0 to 1150 Ω)

Nominal Deviation

±0.25 Ω

±2.5 Ω

±25 Ω

Functions

Auxiliary earth resistance check S (P)/ H(C)

Earth Potential Measurement

0 to 30 V, Nominal Deviation: ±3.0 % f.s.

Power Supply

LR6 (AA) Alkaline battery ×6, 1100 times operation (at 30 sec. measurement/ 30 sec. rest cycle)

Included Accessories

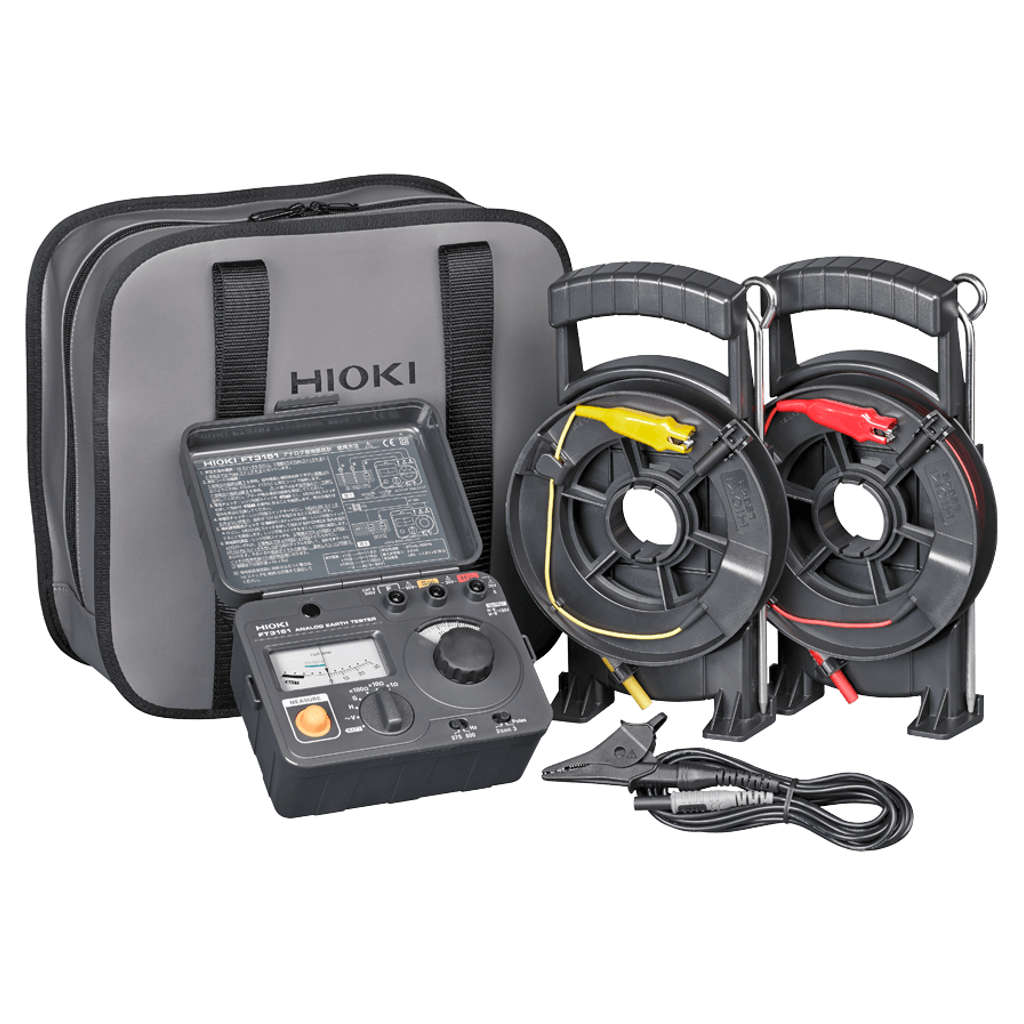

Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measuring cable L9841 (alligator clip, black 4 m (13.12 ft)), Measurement Cable L9842-11 (yellow 10 m (32.81 ft), equipped with winder), Measurement Cable L9842-22 (red 20 m (65.62 ft), equipped with winder) ×1, LR6 (AA) Alkaline battery ×6, Carrying Case C0106 ×1, Instruction manual ×1

Dimensions (W x H x D)

164 x 119 x 88 mm

6.46 x 4.69 x 3.46 Inch

Weight

760 / 26.8 oz

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) L x B x H

8.8 x 16.4 x 11.9

Unit Of Measurement

1 Piece

Weight

0.800 kg

Generic Name

Analog Earth Tester

Packer Details

Hioki

Unit No. 123 & 124, 1st Floor,

Suncity Business Tower, Golf Course Road,

Gurugram - 122003, Haryana, India

Phone : 08035948127

Importer Details

Hioki

Unit No. 123 & 124, 1st Floor,

Suncity Business Tower, Golf Course Road,

Gurugram - 122003, Haryana, India

Phone : 08035948127

Country Of Origin

India
