SKU # 1000047080

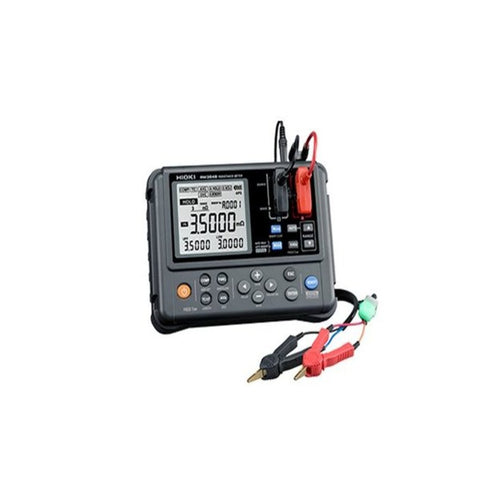

Hioki Digital Resistance Meter RM3548

Hioki Digital Resistance Meter RM3548

Visit the Hioki Store
Mid-Year Value Sale

₹ 103,670.00

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch In 10-14 Business days

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max

  • testing currentMeasure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ

  • Easily record up to 1,000 data points in memory simply by applying the instrument’s probes

  • Smoothly capture temperature-rise test data using interval measurement

  • Portable design is ideal for maintenance and testing of large equipment

Product Specification

Brand

Hioki

Model No

RM3548

Product Type

Digital Resistance Meter

Resistance range

3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max.,

100 Ω resolution), 10 steps
Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.

Testing current

[at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC

Open-terminal voltage

5.5 V DC max.

Temperature measurement

-10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy)

Measurement speed

Fixed

Display refresh rate

Without OVC: approx. 100ms, With OVC: approx. 230ms

Functions

Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS),
Averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC)

Memory storage

Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files)

Power supply

LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company’s conditions), Rated power consumption: 5 VA max.

Dimensions (W × H × D)

192 mm x 121 mm x 55 mm

Weight

770 g
