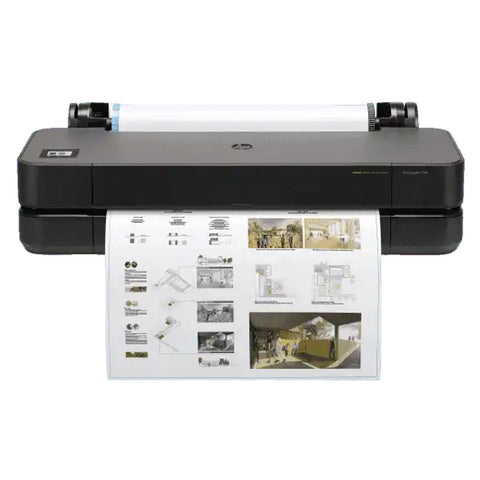

HP DesignJet T230 Large Format Compact Wireless Plotter Printer 24 Inch
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
A1 Color HP Designjet Large Format Printer, Perfect for Enterprise
-
35 sec/page on A1, 68 A1 prints per hour
-
USB, Ethernet, Wi-Fi
-
Extreme simplicity
-
Easy to use with an intuitive driver and true print preview
-
Print multi-size A3/B and A1/D
-
Without manually switching the media source
-
HP Click sofware
-
Send multiple files for prints in one click
-
HP Smart app
-
Print your jobs and manage your plotter from virtually anywhere
-
Sustainable design
-
Made with up to 30% recycled plastic, redusing CO2 emission up to 7.3 tons/year
-
HP Bright Office Inks
-
Up to 31% more line accuracy and up to 65% more gamut
-
High-speed printing
-
As fast as 30 seconds per A1/D plot
Product Specification
|
Brand |
HP |
|
Product Type |
Wireless Plotter Printer |
|
Product Model |
T230 |
|
Functions |
|
|
Print Technology |
HP Thermal Inkjet |
|
Print Languages |
JPEG, URF |
|
Model Size |
610 mm |
|
Theoretical Minimum Line Width |
0.02 mm |
|
Line Accuracy |
±0.1%[3] |
|
Print Speed |
35 sec/page on A1, 68 A1 prints per hour[1] |
|
Maximum Optical Density (Black) |
8 L* min/2.10 D[4] |
|
Print Quality Color (Best) |
Up to 2400 x 1200 optimized dpi |
|
Non-Printable Area (Cut-sheet) |
5 x 5 x 5 x 5 mm |
|
Non-Printable Area (Roll Media) |
5 x 5 x 5 x 5 mm |
|
Printer Drivers Included |
Raster driver for Windows and macOS |
|
Internal Storage |
None |
|
Memory |
512 MB |
|
Connectivity, Standard |
Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11 |
|
Power Consumption Description |
<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby) |
|
Power |
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
|
Number Of Print Cartridges |
4 (C, M, Y, K) |
|
Print Cartridge Volume Delivered |
80 ml (K); 38 ml (K); 29 ml (C, M, Y) |
|
Print Heads |
1 (cyan, magenta, yellow, black) |
|
Print Head Nozzles |
1376 |
|
Ink Drop |
5.5 pl (C, M, Y); 12 pl (K) |
|
Ink Types |
Dye-based (C, M, Y); pigment-based (K) |
|
Finished Output Handling |
Sheet feed, roll feed, automatic horizontal cutter |
|
Media Types |
Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene) |
|
Media Sizes Supported |
A4, A3, A2, A1 |
|
Media Sizes, Custom |
210 x 279 to 610 x 1897 mm |
|
Media Sizes Standard (Metric Rolls) |
279 to 610 mm |
|
Media Width, Maximum |
610 mm |
|
Media Weight, Recommended |
60 to 280 g/m2 |
|
Media Thickness |
Up to 11.8 mil |
|
Roll External Diameter |
100 mm |
|
Roll Maximum Input |
1 |
|
Roll Maximum Weight |
4.1 kg |
|
Supported Primary Applications |
Line drawings; Presentations; Renderings |
|
Operating Temperature Range |
5 to 40oC |
|
Storage Temperature Range |
-25 to 55oC |
|
Operating Humidity Range |
20 to 80% RH |
|
Non-Operating Humidity Range |
0 to 95% RH |
|
Acoustic Power Emissions |
5.8 B(A) (operating), <3.4 B(A) (idle) |
|
Acoustic Pressure Emissions |
42 dB(A) (operating), <16 dB(A) (idle) |
|
Software Included |
HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant |
|
Dimensions Without Stand (W X D X H) |
1013 x 440 x 285 mm |
|
Weight |
21.5 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
