SKU # 1000052669

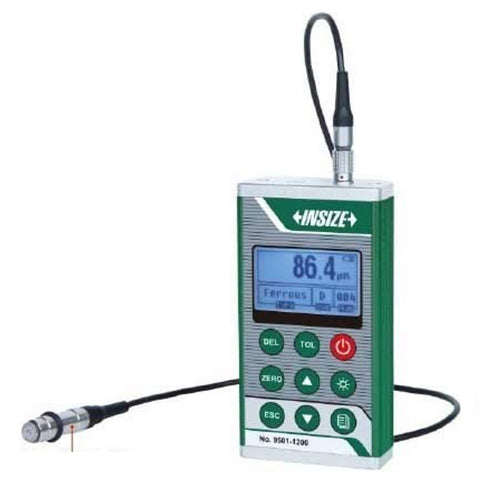

Insize Coating Thickness Gage 9501-1200
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Magnetic induction probe (Fe) is to measure the thickness of non-magnetic coating on magnetic substrate
-
Substrate: iron, steel, magnetic stainless steel (does not include non-magnetic stainless steel)
-
Coating: zinc, copper, chrome, tin, plastic, powder, paint (nickel is not included)
-
Eddy current probe (NFe) is to measure the thickness of non-conductive coating on non-magnetic substrate
-
Substrate: copper, aluminum, zinc, non-magnetic stainless steel
-
Coating: plastic, powder, paint, anodizing
-
Low and high limits with judgement
-
Automatic power off
Product Specification
Brand |
Insize |
|||
Product Code |
9501-1200 |
|||
Product Type |
Coating Thickness Gage |
|||
Probe Type |
Fe (included) |
NFe (optional) |
Fe90 (optional) |
Fe10 (optional) |
Magnetic induction probe |
Eddy current probe |
Magnetic induction probe for bores and grooves |
Magnetic induction probe qith big range |
|
Measuring Range |
0~1250μm |
0~1250μm |
0~1250μm |
0~10000μm |
Accuracy |
±(3%L+1)μm (range≤1250μm) ±(3%L+10)μm (range>1250μm) L is Measuring Thickness in μm |
|||
Resolution |
0.1μm (range<100μm) |
|||
1μm (range≥100μm) |
||||
Measuring Mode |
Continuous and single |
|||
Minimum Substrate Thickness |
0.5 mm |
0.3 mm |
0.5 mm |
2 mm |
Minimum Measuring Area |
Ø7 mm |
Ø5 mm |
Ø7 mm |
Ø40 mm |
Minimum curvature radius Of Convex Workpiece |
1.5 mm |
3 mm |
- |
10 mm |
Memory |
500 |
|||
Power Supply |
2 x 1.5V AA batteries |
|||
Dimension |
128 x 68 x 32 mm |
|||
Weight |
340 g |
|||
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Thickness Gauge |
Manufacturer Details |
INSIZE INDIA LLP Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad- 380023, India Email : sales-in@insize.com |
Packer Details |
INSIZE INDIA LLP Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad- 380023, India Email : sales-in@insize.com |
Country of Origin |
India |
