Out of Stock!
SKU # 1000115461
KEI Industrial Jelly Filled Co-Axial Cables RG-59
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
KEI’s co-axial cables, RG59, RG6 & RG11 are used in the transmission of RF signals and power for voice, data and video applications
-
The double-shield coaxial cable protects signals from external electromagnetic interference & solid electrolytic grade 99.97% pure copper conductor offers superior electrical performance meeting all requirements of CATV, DTH, Broadband,Digital & Analog signal applications
-
Our co-axial cables are Special Digitally designed for transmission of high frequency signals with minimum loss for DTH, Institute and Digital Headend etc
-
The various configurations of our cables are solid copper center conductor and also available in Copper Clad Steel (CCS), Polyethylene Foam PE, Aluminium laminated tape to provide 100% coverage, Aluminium alloy wire braids to give additional mechanical strength, Flooding Compound jelly to provide internal corrosion & water resistance properties and PVC cover to give environmentally secured safe seal to the construction
-
Our cables tested on 3.0 Ghz spectrum analyser
-
Construction Details
-

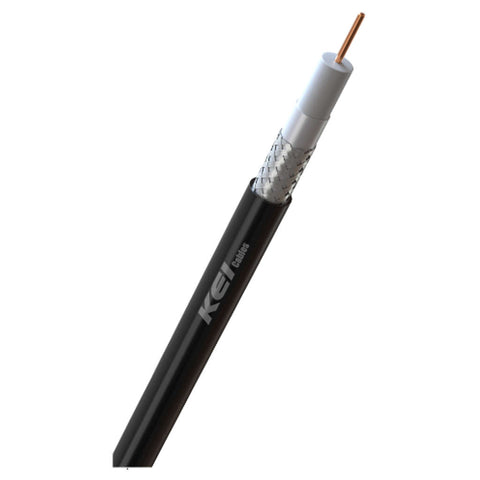

Electrolytic grade solid bare copper conductor, foam polyethylene insulation, with laminated aluminium tape and Aluminium Alloy Wire braid, Jelly flooded and PVC Jacketing in Black colour
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
| Brand | KEI |
| Product Type | Co-Axial Cable |
| Size | RG-59 |
| Packing Length Meters | 100 Meters 305 Meters |
| Shield Constructions | |
| 1st Shield | Bonded Al tape |
| 2nd Shield | Aluminium alloy wire braid with Minimum 60% coverage |
| Nominal O.D of cable | 6.10 mm |
| Bending Radius,Minimum | 40 mm |
| Maximum DC Resistance at 20°C (Ohm/100m) | 3.55 |
| Impedance (Ohm) | 75 ± 3 |
| Velocity of Propagation (Vp)% | Min. 82 |
| Nominal Capacitance (pf/mtr) | 53 |
| Flooding Compounds | Jelly |
| Colour | Black |
| Diameter (Approx) | 0.81mm |
| Material | Physical foam PE |
| Core Diameter (Approx) | 3.60mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) LxWxH | 21.3 x 15.5 x 20 |
| Unit Of Measurement | 1 Piece |
| Weight | 2.5 kg |
| Generic Name | Coaxial Cables |
| Manufacturer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
| Packer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
| Country Of Origin | India |
ProductDescription
-
KEI’s co-axial cables, RG59, RG6 & RG11 are used in the transmission of RF signals and power for voice, data and video applications
-
The double-shield coaxial cable protects signals from external electromagnetic interference & solid electrolytic grade 99.97% pure copper conductor offers superior electrical performance meeting all requirements of CATV, DTH, Broadband,Digital & Analog signal applications
-
Our co-axial cables are Special Digitally designed for transmission of high frequency signals with minimum loss for DTH, Institute and Digital Headend etc
-
The various configurations of our cables are solid copper center conductor and also available in Copper Clad Steel (CCS), Polyethylene Foam PE, Aluminium laminated tape to provide 100% coverage, Aluminium alloy wire braids to give additional mechanical strength, Flooding Compound jelly to provide internal corrosion & water resistance properties and PVC cover to give environmentally secured safe seal to the construction
-
Our cables tested on 3.0 Ghz spectrum analyser
-
Construction Details
-
Electrolytic grade solid bare copper conductor, foam polyethylene insulation, with laminated aluminium tape and Aluminium Alloy Wire braid, Jelly flooded and PVC Jacketing in Black colour
-
Note:*Actual product image may vary from that shown on the picture
ProductSpecification
| Brand | KEI |
| Product Type | Co-Axial Cable |
| Size | RG-59 |
| Packing Length Meters | 100 Meters 305 Meters |
| Shield Constructions | |
| 1st Shield | Bonded Al tape |
| 2nd Shield | Aluminium alloy wire braid with Minimum 60% coverage |
| Nominal O.D of cable | 6.10 mm |
| Bending Radius,Minimum | 40 mm |
| Maximum DC Resistance at 20°C (Ohm/100m) | 3.55 |
| Impedance (Ohm) | 75 ± 3 |
| Velocity of Propagation (Vp)% | Min. 82 |
| Nominal Capacitance (pf/mtr) | 53 |
| Flooding Compounds | Jelly |
| Colour | Black |
| Diameter (Approx) | 0.81mm |
| Material | Physical foam PE |
| Core Diameter (Approx) | 3.60mm |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) LxWxH | 21.3 x 15.5 x 20 |
| Unit Of Measurement | 1 Piece |
| Weight | 2.5 kg |
| Generic Name | Coaxial Cables |
| Manufacturer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
| Packer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
| Country Of Origin | India |
