SKU # 1000070118

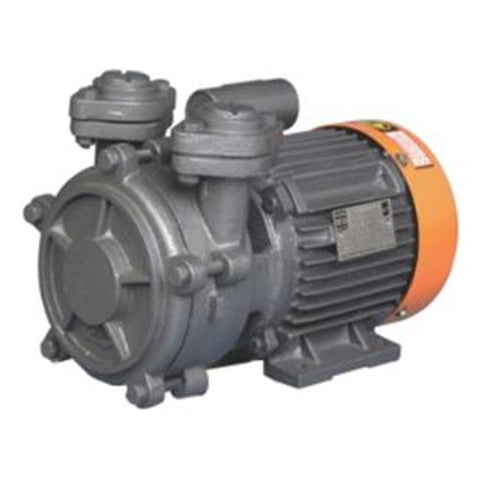

Kirloskar Domestic Self Priming Pump 0.5HP CMS 525N

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Featuring a sturdy design, this pump is fitted with a Totally Enclosed Fan Cooled motor for longer life
-
Self-priming up to 3.0 meters at mean seal level
-
Motor can withstand with wide voltage fluctuation from 180- 240Volts
-
Unique Motor design- TEFC - capacitor start & run motor eliminating centrifugal switch
-
‘B’ class of insulation
-
Fitted with high quality & long life mechanical seal
-
Fitted with Thermal Overload Protector (TOP) for safety of Motor
-
Both Side Shielded ball bearing, no need of external lubrication
-
Sturdy & rigid construction
-
Pump casing made of closed grains cast iron of high tensile strength and has a very smooth surface finish resulting in low friction losses
-
Brass impeller is used to give trouble free services
-
Application:
-
Water supply for domestic use in Bungalows, Apartments, Hotels, Farmhouses etc
-
Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens
Product Specification
|
Brand |
Kirloskar |
|
Product Type |
Self Priming Pump |
|
Product Model |
CMS 525N |
|
Power |
HP : 0.5 kW : 0.37 |
|
Pipe Size (cm) |
Suction : 2.5 Delivery : 2.5 |
|
Full Load Current |
4.5 |
|
Rated Voltage |
240 |
|
No Of Phase |
Single Phase |
|
Impeller |
Brass |
|
Pump Shaft |
Carbon steel |
|
Delivery Casing |
Cast Iron |
|
Motor Body |
Cast Iron |
|
Cover NDE |
Cast Iron |
|
Mechanical Seal |
Carbon ceramic |
|
|
|
|
Total Head In Meters |
Discharge In LPH |
|
10 |
2236 |
|
14 |
2052 |
|
18 |
1782 |
|
22 |
1449 |
|
26 |
1026 |
|
30 |
522 |
|
Warranty |
As Per Manufacturer Terms & Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Self priming Monoblock Pumps |
Manufacturer Details |
Kirloskar Brothers Limited (KBL) Yamuna,Survey No. 98/(3-7), Baner Pune 411 045 India Phone : 1800-123-4443 Email ID: marketing@kbl.co.in |
Packer Details |
Kirloskar Brothers Limited (KBL) Yamuna,Survey No. 98/(3-7), Baner Pune 411 045 India Phone : 1800-123-4443 Email ID: marketing@kbl.co.in |
Country of Origin |
India |
