SKU # 1000122537

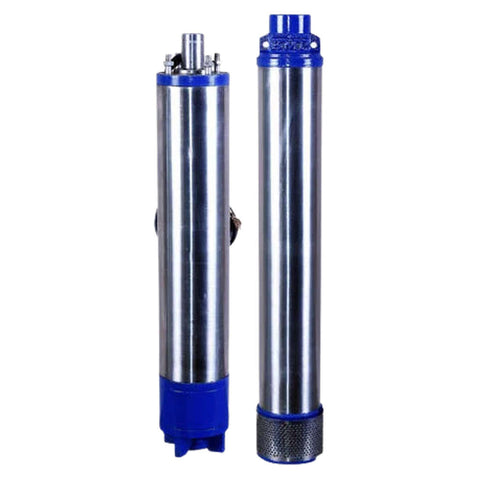

KMP V4 Submersible Pump Set 3Phase KMP4T-6/30
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Other Details
-
V4 Submersible Pump are multistage centrifugal units which operate below water level and are driven by water filled AC single phase (or) three phase induction submersible motors
-
Their pumps are well suited for borewell diameter of minimum 4" (or) 100 mm
-
Our pumps work on principle of a modular structure where with limited number of parts different tailor made request can be achieved
-
A dynamically balanced rotor rotates in a oversized twin bearings on each bearing housing
-
An installed diaphragm in the lower motor housing provides pressure / volume compensation of the motor during internal motor temperature changes
-
This is a very special and successful product because of its simple assembly concept
-
Salient Features
-
Three is a wide range of pumps to match any duty point
-
High pump efficiency
-
Due to less weight installation cost is very less
-
Semi axial impellers make priming automatic
-
Easy to dismantle and repair due to right construction
-
Application
-
Domestic water supply
-
Small irrigation
-
Civil and industrial applications
-
Fire fighting applications
-
Note*Actual product image may vary from that shown on the picture
Product Specification
| Brand | KMP |
| Product Type | Submersible Pumps Set |
| Product Model | KMP4T-6/30 |
| Series | V4 |
| H.P | 6.0 |
| Stage | 30 |
| Delivery | 1½ Inch |
| Head(Feet) | 500 |
| Speed | 2900 RPM |
| Operating Voltage | 360V to 415V |
| No Of Phase | Three Phase |
| Discharge | 6.0 LPS - 0.2 LPS |
| Maximum Starts Per Hour | 20 Times |
| Method Of Starting | DOL - 3 Phase |
| Warranty | As Per Manufacturer Terms And Conditions |
Other Details
| Dimension (CM) LxBxH | 140 x 12 x12 |
| Unit Of Measurement | 1 Piece |
| Weight | 48 kg |
| Generic Name | Submersible Pumps Set |
| Manufacturer Details | KMP Industries No. 43/183, A Puthu Thottam, E.N.G.Pudur Urumandampalayam, Coimbatore - 641029, Tamil Nadu,+91-8048978981 |
| Packer Details | KMP Industries No. 43/183, A Puthu Thottam, E.N.G.Pudur Urumandampalayam, Coimbatore - 641029, Tamil Nadu,+91-8048978981 |
| Country Of Origin | India |
