SKU # 1000067460

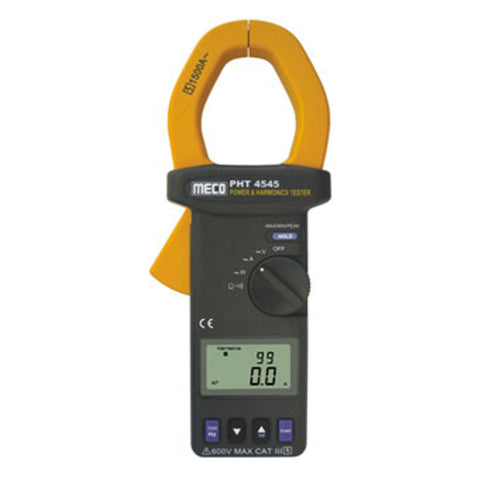

Meco AC Clamp-On TRMS Power & Harmonics Tester PHT4545
![](http://www.bestomart.com/cdn/shop/t/34/assets/panid.png?v=79406228544121282611724821519)
PAN INDIA DELIVERY
![](http://www.bestomart.com/cdn/shop/t/34/assets/pre_qc.png?v=79212665365913751591724821538)
100% Genuine Products
![](http://www.bestomart.com/cdn/shop/t/34/assets/pay_sec.png?v=25498095452997473051724821521)
100% Secured Payments
Product Description
-
Power Analysis
-
W, KW, HP, VA, KVA, VAR, KVAR
-
PF, Phase Angle (Φ)
-
Energy (WH, KWH)
-
Balanced 3Φ Power Quality
-
Balanced 3Φ Sequence
-
Programmable CT Ratio (1 to 250)
-
Dual Displays (W + PF, VA + KVAR...)
-
Active power in HP
-
Resistance and Continuity with Beeper
-
Harmonics Analysis
-
True RMS value (V and A) at 0.5% basic accuracy
-
1500 A AC
-
Harmonics Analysis (V and A) to the 99th Order in % and in magnitude
-
Better Understaning of High Frequency Harmonic Analysis (up to 5/6/KHz)
-
Non-interrupted Harmonic Analysis
-
Analysis of Total Harmonic Distortion(%THD-F)
-
Analysis of Crest Factor (C.F.)
-
Fast Peak Function (33μs for 60Hz and 39μs for 50Hz)
-
Max, Min & Data Hold Function
Product Specification
Brand |
Meco |
Product Model |
PHT4545 |
Product Type |
Harmonics Tester |
Jaw Opening |
Cable Dia 55mm (approx.), 64 x 24mm (Bus Bar) |
Battery Type |
1.5V SUM-3 x 2 |
Display |
4+4 Digits LCD |
Auto-Power-Off |
30 minutes |
Lcd Update Rate |
2 times / sec. |
Operating Temperature |
-10°C to 50°C |
Storage Temperature |
-20°C to 60°C |
Option |
Alligator Clips |
Power Consumption |
10mA (approx.) |
No. Of Samples / Period |
512 (V & A), 256 (W) |
Operating Humidity |
< 85% Relative |
Storage Humidity |
< 75% Relative |
Accessories |
Test Leads, Carry Bag, Users Manual, Batteries (Installed) |
Weight |
650gms Including Battery (approx.) |
Dimension |
271 x 112 x 46mm (approx.) |
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Harmonics Tester |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
