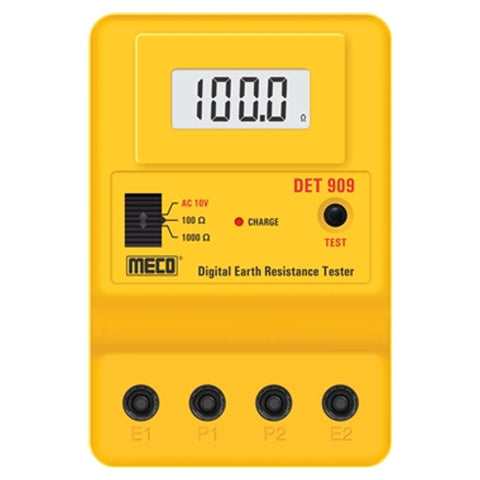

Meco Digital Earth Resistance Tester DET 909

Meco Digital Earth Resistance Tester DET 909

Visit the Meco Store

₹ 5,310.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • MECO DET 909 is designed with technical know how from FUSO Electric Company of Japan

  • It is useful for measurment of Earth Resistance of Earthing in the Electrical System

  • This Instrument finds wide applications for testing Earthing of installations in Power Industries, Telecommunication Networks & Electrical Traction Systems etc

  • It also measures Earth Voltage

  • Digital earth resistance testers are instruments used to measure the resistance of the earth and detect any faults in the grounding system

  • They are also known as ground resistance meters or earth testers

  • 3½ Digit (1999 Counts) 14mm LCD Display

  • Auto Power Off Function (after 3-5min.)

  • Low Battery Indication

  • Capable of Measuring Earth Voltage (0 - 10V AC)

  • Light Weight & Portable

  • Extremely Simple to Operate Connect - Press - Read

  • Designed to Reject High Levels of Noise & Interference

  • Designed to Generally Confirm to IS10656-1983

  • Range Selection & Single Person Push Button Operation Switches

  • Two Ranges for Earth Resistance Measurement

  • Functions Icons on Display

  • Rechargeable Batteries

  • IEC 1010 CAT III 200V

  • Sturdy, Elegant & Compact Body

ProductSpecification

r>

Brand

Meco

Product Type

Earth Resistance Tester

Product Model

DET 909

Display

3½ dgt. ( 1999 Counts ) LCD Display with 14mm height

Accuracy

± (3% rdg. + 5 dgt.) For Earth Resistance

at 23°C ±5°C

± (1% rdg. + 2 dgt.) For Earth Voltage

Conversion Rate

2.5 Sec

Over Range Indication

"1" is displayed

Operating Temperature

0° to 50°C

Storage Temperature

-20° to 60°C

Relative Humidity

80% Maximum

Low Battery

Is Displayed when Battery Voltage drops below Operating Voltage

Dielectric Strength

2.5KV@50Hz for 1min, between Input Terminals & Case

Insulation Resistance

More than 50MΩ @ 500V between Circuit & Case

VA-Power

< 3.0VA

Power

1.2V AA x 8 Rechargeable Batteries

Accessories (Standard)

Carrying Case x 1, 1.2V AA Rechargeable Batteries (fitted in) x 8, Instruction Manual x 1,
Carton x 1, 2 Pin Male-Female Wire

Accessories (Optional)

Test Leads x 1 Set (Red, Yellow, Black), Earthing Spikes (Rods) x 2

Dimensions

166 x 111 x 75mm (Approximate)

Weight (Including Battery)

525 g (Approximate)

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) L x B x H

16.6 x 11.1 x 75

Unit Of Measurement

1 Piece

Weight

0.550 kg

Generic Name

Resistance Tester

Manufacturer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Packer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Country Of Origin

India
