SKU # 1000067168

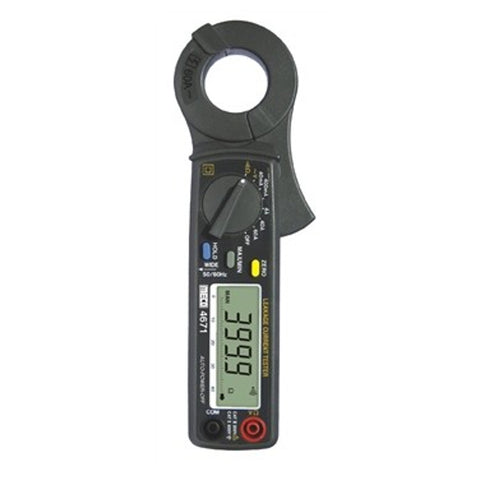

Meco Leakage Current Tester 4671
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
10µA Ultra High Resolution
-
Large Conductor Diameter (30mm)
-
AC Current in 5 Ranges (40mA, 400mA, 4A, 40A, 60A)
-
Wide Frequency Response (40Hz-1KHz)
-
ACA, ACV, Ω and Continuity
-
Large 3¾ Digit LCD (4000 Count)
-
40 Segment Fast Bargraph Display (20 times/sec.)
-
Data Hold and Max / Min Hold
-
Relative Measurement
-
600 Vrms Overload Protection in Resistance Range
Product Specification
|
Brand |
Meco |
|
Model No |
4671 |
|
Product Type |
Leakage Current Tester |
|
Jaw Opening |
Cable Dia 30mm. max. (approx.) |
|
Battery Type |
Two 1.5V SUM-3 |
|
Display |
3¾ LCD with 40 Segment Bargraph |
|
Range Selection |
Manual |
|
Overload Indication |
OL |
|
Power Consumption |
15mA (approx.) |
|
Low Battery Indication |
B |
|
Sampling Time |
3 time/sec. (display) 30 time/sec. (bargraph) |
|
Operating Environment |
-10° to 50°C, RH < 85% |
|
Storage Environment |
20°C to 60°C, RH < 75% |
|
Altitude |
up to 2000M |
|
Dimensions |
210 x 72 x 36 mm |
|
Weight |
210gms Including Battery (approx.) |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Leakage Current Tester |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
