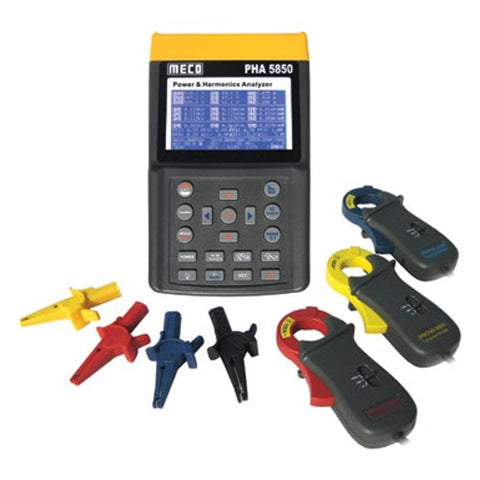

Meco Power and Harmonics Analyzer PHA 5850A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
-
Display of 35 Parameters in one screen (3P4W)
-
Programmable CT (1 to 600) and PT (1 to 3000) Ratios
-
RMS, PEAK Value & Crest Factor
-
True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR)
-
Power Factor, Phase Angle ( Ф ) & Energy (WH, KWH, KVARH, PFH)
-
Average / Maximum Demand (KW, MW, KVA, MVA) with Progrmmable Period
-
Display of 50 Harmonics in one Screen with Wave form with Peak value (1024 Sample / Period)
-
Analysis of total Harmonics Destortion (THD-F)
-
Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE)
-
Built in timer & Calender for Data Logging
-
512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
-
Optical Isolated RS-232C ~ USB Interface
-
Calculated Unbalanced Current through Neutral line
-
Graphic Phasor Diagram
-
Facility to retrieve Power Data & Harmonics on Meter Screen
-
Software for easy download of Recorded Data & Transient events
-
Graphic Phasor Diagram
-
Facility to retrieve Power Data & Harmonics on Meter Screen
-
Software for easy download of Recorded Data & Transient events
Product Specification
|
Brand |
Meco |
||
|
Product Model |
PHA 5850A |
||
|
Product Type |
Harmonics Analyzer |
||
|
Battery Type |
1.5V SUM-3 x 8 |
||
|
External Dc Input |
Power supply adapter 12 Volts. DC |
||
|
Display |
Dot Matrix LCD (240x128) with backlight |
||
|
Lcd Update Rate |
1 time / second |
||
|
Power Consumption |
140mA (approx.) |
||
|
No. Of Samples |
1024 samples / period |
||
|
Data Logging Files |
85 |
||
|
Max. File Capacity |
17474 records (3P4W, 3P3W) 26210 records (1P3W) 52420 records (1P2W) 4096 records (50 Harmonics / record) |
||
|
Sampling Time |
2 to 3000 seconds for data logging |
||
|
Overload Indication |
OL |
||
|
Operating Condition |
-10°C to 50°C < 85% RH |
||
|
Storage Condition |
-20°C to 60°C < 75% RH |
||
|
Ac Current |
(50Hz or 60Hz, Auto Range, True RMS, Crest Factor<4, CT=1) |
||
|
Ac Watt |
(50Hz or 60Hz, PF 0.5~1, CT=1, continuous waveform) |
||
|
Range |
Resolution |
Accuracy Of Readings |
|
|
0.04 - 1a |
0.1mA |
±0.5% ±0.05A |
|
|
0.4 - 10a |
0.001A |
±0.5% ±0.05A |
|
|
4 - 100a |
0.01A |
±1.0% ±0.5A |
|
|
Accessories |
Voltage Test Leads x 4 (3 meter long ) Alligator Clips (Voltage) x 4 (R.Y.B.N.) Carrying Bag x 1 Batteries 1.5V DC x 8 External DC Adaptor x 1 Software CD x 1 Users Manual x 1 Software Manual x 1 Optical USB Cable x 1 Current Clamps x 3 (Any One CT Set) |
||
|
Dimension |
257 x 155 x 57 mm |
||
|
Weight |
1160 g (Batteries included) |
||
|
Warranty |
1 Year |
||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Power Analyzers |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
