Out of Stock!
SKU # 1000067373

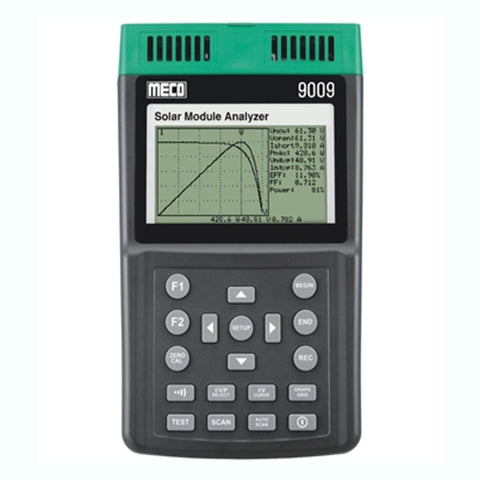

Meco Solar Module Analyzer (Photovoltaic I - V Curve Tester) 9009
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
I-V Curve Test for Solar Panel / Module / Cell
-
Max. Solar Cell/Module Power / Cell Power(Pmax) search by Auto-Scan
-
Capability: 60V, 12A
-
Best Resolution: 1mV , 1mA
-
Manual Single Point I-V Test
-
Max. Voltage (Vmaxp) at Pmax
-
Max. Current (Imaxp) at Pmax
-
Voltage at Open Circuit (Vopen)
-
Current at Short Circuit (Ishort)
-
I-V Curve with Cursor to Display each Data Point
-
Efficiency (%) Calculation of Solar Panel
-
Real Time data logging
-
RS232C (to USB Bridge) Cable for PC
-
Communicate with PC via USB Cable
-
AC Adaptor and Rechargable Lithium Battery
-
Memory Size : 100 Records
-
Sampling Time of Data logging : 0 ~ 99 min
-
Large LCD with Backlight
Product Specification
|
Brand |
Meco |
|
Product Model |
9009 |
|
Product Type |
Solar Power Meter |
|
Battery Type |
Rechargeable Lithium Battery, 3400mAh |
|
Battery Life |
400 times of linear scan from 60V to 0V and 0A to 12A. |
|
Data Logging Memory Size |
100 records |
|
Ac Adaptor |
AC 110 ~ 240V Input, DC 15V / 1~3A Output |
|
Standards |
EN 61326 - 1:2006 EN 61010 - 1:2001 CAT I 60V Pollution Degree 2 |
|
Operation Environment |
50 C ~ 500 C, <85% RH |
|
Temperature Coefficient |
0.1% of full scale / 0 C(<180 C or >280 C) |
|
Storage Environment |
0 0 -20 C ~ 60 C, <75% RH |
|
Accessories |
User Manual x 1, AC Adaptor x 1, Optical USB Cable x 1, Rechargeable Lithium Battery (installed) x 1, Software CD x 1, Software Manual x 1, Kelvin Clips (12A max) x 1 Set, 4 Wire to 2 Wire Connector (10A Max and 12A for 1minute) x 1 set, Carrying Bag x 1 |
|
Dimension |
257 x 155 x 57mm (approx.) |
|
Weight |
1160gms Including Battery (approx.) |
|
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Solar Power Meter |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
