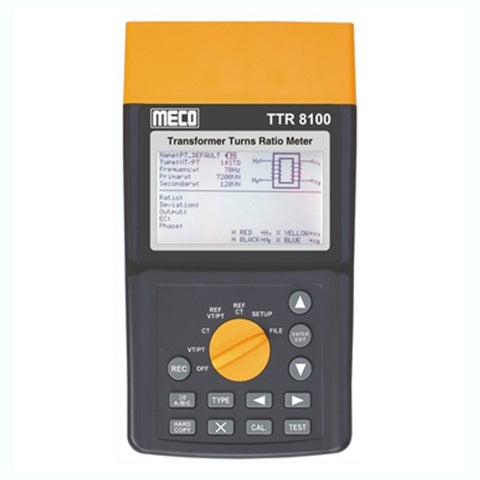

Meco Transformer Turns Ratio Meter with PC Communication Software TTR 8100
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Measurement of 1Φ and 3Φ Transformer / VT / CT Turns Ratio
-
VT / PT Ratio 0.8 ~ 2000, Ct Raio 0.8 ~ 2000
-
Graphical and Literal Illustration of Measurements and connections with Large Back - Lighted Dot Matrix 240 x 128 LCD
-
Displays Turns Ratio, Deviation, Secondary Output, Excitation Voltage and Current, Phase Angle and Nameplate. Transformer VT / CT Values in one page for easy quality interpretation
-
Check for Live Test Points, Short Circuit, Open Circuit and Reverse Polarity before each measurement
-
Store 4096 Files of Transofrmer Nameplate Values (VT / PT / CT 1 Φ / 3Φ, Test Frequency, Primary and Secondary Voltages or Ratio, RCF) and Measuring Data.
-
Ten Test Frquencies (50 ~ 400 Hz)
-
9 Types of 3Φ Winding Connection pre - installed
-
Wireless Blue Tooth Communication with PC
-
Select Filter to Remove Field noise (Slow, Normal, Fast)
-
Record with Date and Time Stamp
-
Powerful Lithium Battery (3400mAH) with built - in Charging Circuit
-
User Programmable RCF (Reference Correction Factor, 0.99 ~ 1.01) to Correct Accuracy within 1% Error
-
PC Application Software Included
-
Friendly File System for Easy On - Site Data Retrieval and Nameplate Values Management
Product Specification
|
Brand |
Meco |
||
|
Product Model |
TTR 8100 |
||
|
Product Type |
Ratio Meter |
||
|
Display |
5” Large Dot Matrix LCD Display (240x128) with Backlight |
||
|
Power Source |
Rechargeable Lithium Battery, 3400mAh |
||
|
Battery Life |
Over 10Hrs of Continuous Operation. Battery life (%) Indication |
||
|
Battery Charger |
Universal Input (90 to 264Vrms Input) |
||
|
Charging Time |
<4Hrs |
||
|
Data Storage |
4096 Files Each (VTM, CTM, VTR, CTR, BMP) |
||
|
Date/Time |
Battery-Backed, Real-time Calendar Clock |
||
|
Measurement Method |
ANSI/IEEE C57.12.90 and IEC 600076.1 |
||
|
Excitation Signal |
VT/PT Mode : 34Vrms max |
||
|
CT Mode : Auto Level 0 to 1A, 0.1 to 20Vrms |
|||
|
Excitation Current Display |
Range : 0 to 1000mA |
||
|
Accuracy : ±(2% of Reading +2mA) |
|||
|
Excitation Frequency (Hz) |
50, 55, 60, 70, 100, 120, 200, 240, 300, 400 |
||
|
Ratio Range (VT/PT) |
Autoranging : 0.8000 to 10000:1 |
||
|
Ratio Range (VT/PT) |
Autoranging : 0.8000 to 10000:1 |
||
|
Accuracy (70Hz) |
Ratio Range |
Accuracy (%of Reading) |
|
|
0.8000 To 999.99 |
±0.1% |
||
|
1000.0 To 4999.9 |
±0.2% |
||
|
5000.0 To 10000 |
±0.25% |
||
|
Ratio Range (CT) |
Autoranging : 0.8000 to 2000.0 |
||
|
Accuracy (70Hz) |
Ratio Range |
Accuracy (%of Reading) |
|
|
0.8000 To 2000.0 |
±0.5% |
||
|
Accessories |
TestLeads x 1 Pair, Alligator Clips x 4, Rechargeable Lithium Battery x 1, Instruction Manual x 1, AC Adaptor x 1, Power Cord x 1, Software CD and Manual x 1, Carrying Bag x 1 |
||
|
Warranty |
1 Year |
||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Ratio Meter |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
