Metravi Battery Impedance Tester TM-6002
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Measures internal impedance and open circuit voltage of the secondary batteries, including Nickel-metal Hydride (NiMH), Nickel-cadmium (NiCd), Lithium-ion (Li-ion), Alkaline and Lead-acid batteries
-

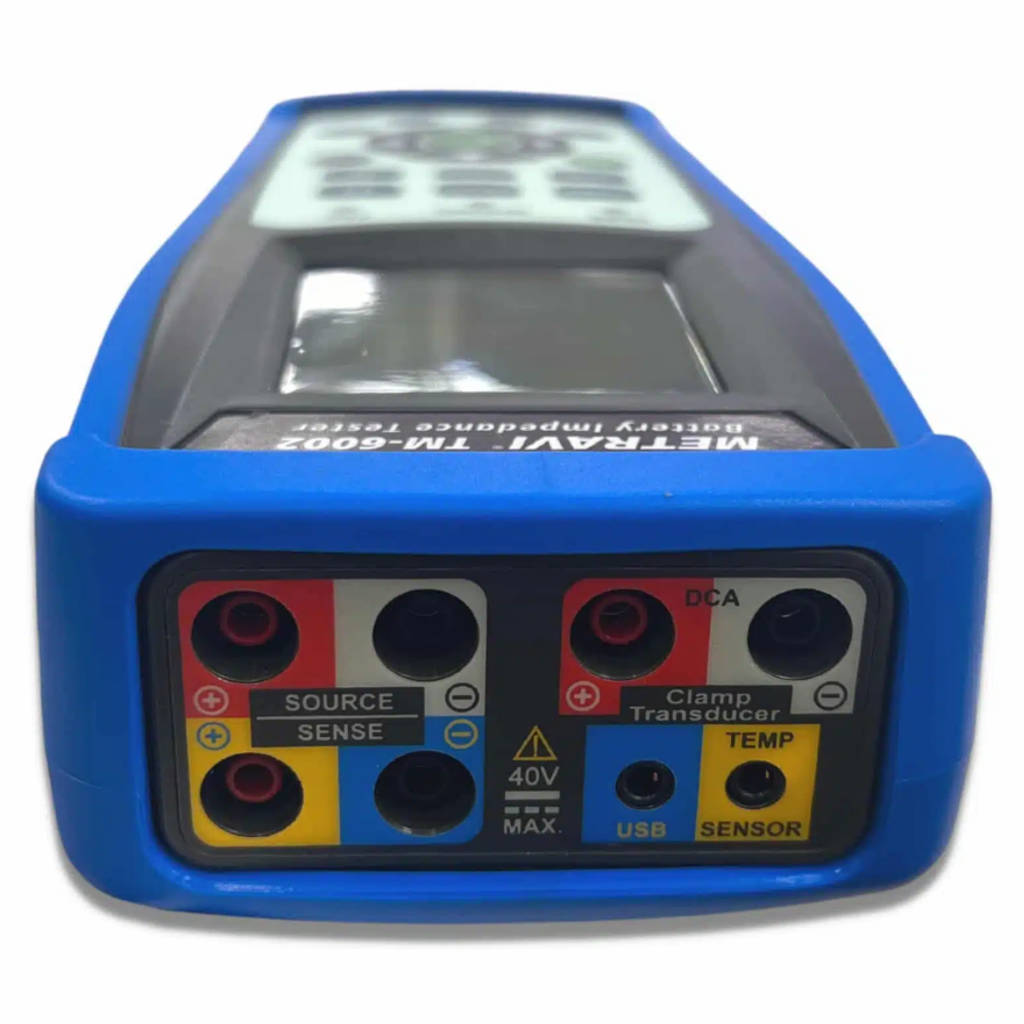

AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get accurate results
-

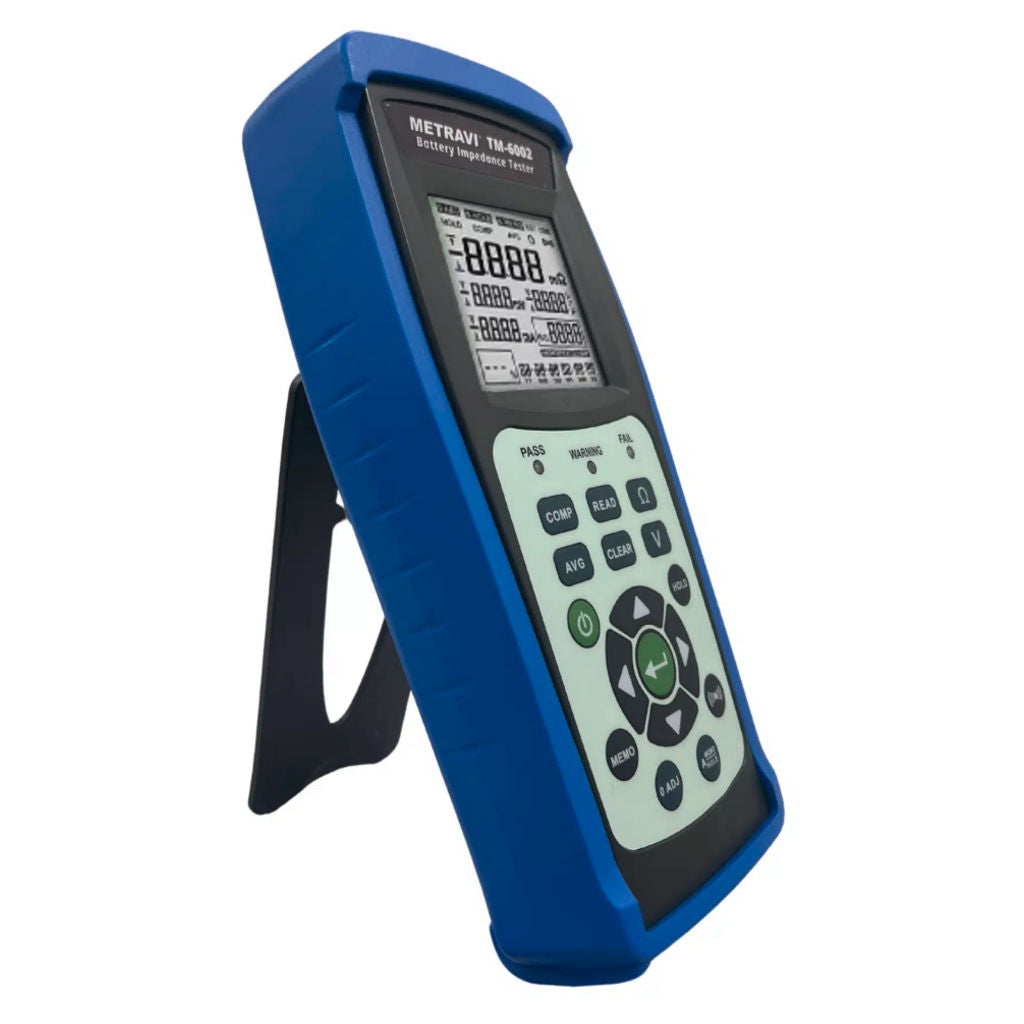

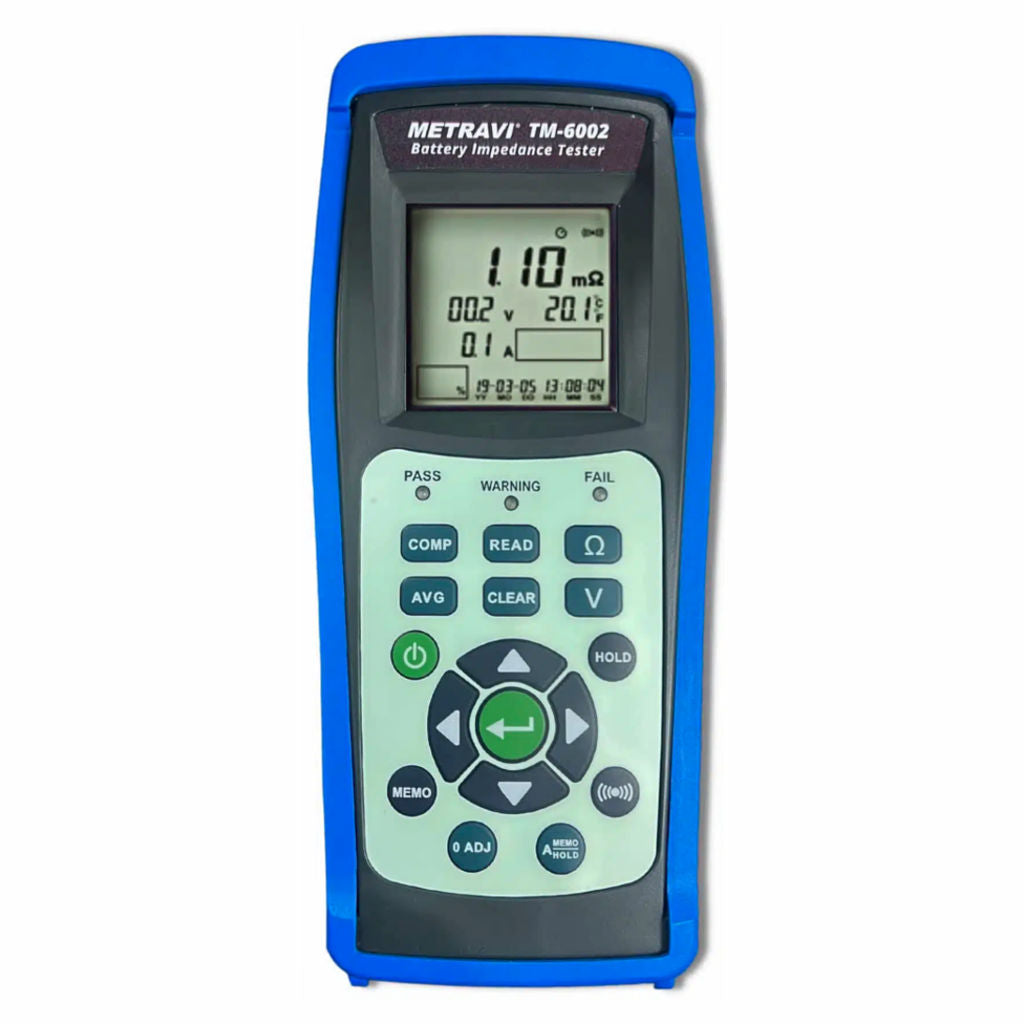

Multi-display to show the internal impedance, voltage and clock of the battery simultaneously
-
It has 99 sets of composite comparator function, which can be set at impedance and voltage values to reliably detect battery deterioration
-
9999 sets of data memory
-
Pin type leads, which can easily contact the battery electrodes are supplied as standard accessory and helps get more accurate 4-terminal measurements
-
An ideal tester for automotive, UPS maintenance and telecommunication applications
ProductSpecification
| Brand | Metravi | |||
| Product Type | Impedance Tester | |||
| Product Model | TM-6002 | |||
| Range | 40mΩ | 400mΩ | 4Ω | 40Ω |
| Resolution | 10µΩ | 100µΩ | 1mΩ | 10mΩ |
| Measurement Current | 100mA Approx | 15mA Approx | 1.5mA Approx | 150 mA Approx |
| Accuracy | (±0.8% reading ±10 digits) | |||
| Voltage Measurements | ||||
| Range | 4V | 40V | ||
| Resolution | 1mV | 10mV | ||
| Accuracy | (±0.8% reading ±6 digits) | |||
| Temperature Measurement | ||||
| Measurement Range | -20ºC ~ 60ºC (-4ºF ~ 140ºF) | |||
| Resolution | 0.1ºC (0.1ºF) | |||
| Accuracy | ±1.0ºC ±1.8ºF | |||
| DC Current (DCA) Measurement | ||||
| Range | 700A | |||
| Sensitivity | 0.6A ~ 700.0A | |||
| Resolution | 0.1A | |||
| Accuracy | (±2.0% reading ±5 digits) | |||
| Measuring Method | Impedance (AC four-terminal method) | |||
| A/D Conversion | Dual slope method | |||
| Display | LCD display and LEDs (comparator output) | |||
| Sampling Rate | 2 Seconds | |||
| Open-Circuit Terminal Voltage | 7.0 Vp-p maximum | |||
| Input Over Range | Screen displays “OL” | |||
| Auto Power Off | The meter turns off automatically after about 15 minutes of inactivity; allows user to set the inactive time (01~99 minutes) | |||
| Comparator Settings | High and Low limits of the comparator impedance and voltage | |||
| Number Of Comparator Settings | 99 sets | |||
| Manual And Auto Continuous Data Logging | 9999 sets | |||
| Operation Temperature And R.H. Value | 5ºC to 40ºC, 80%RH or less (non-condensation) | |||
| Operating Ambience | In-door use, under environmental Pollution Grade II | |||
| Operating Attitude | Max 2000 meters above level | |||
| Power Supply | AC input Voltage is 100Vac to 240Vac 1.0A | |||
| Fuse Specification | 10 mm | |||

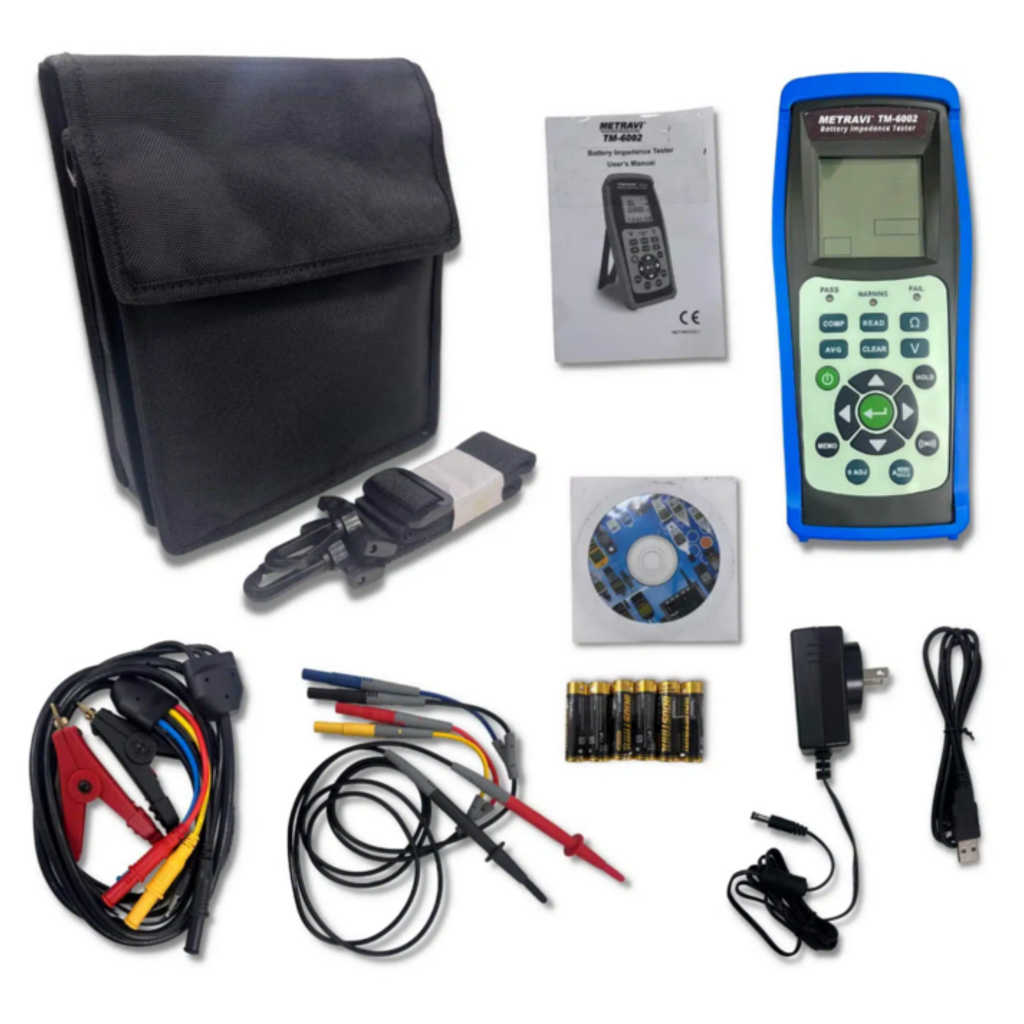

| Accessories | One set of Testing Clips, Instruction Manual, Batteries, Software CD, USB Cable, Carrying Case | |||
| Dimension | 240 x 100 x 45 mm | |||
| Weight | 700 g | |||
| Warranty | 1 Year | |||
OtherDetails
| Dimension (CM) - L x B x H | 24 x 100 x 45 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.7 kg |
| Generic Type | Impedance Tester |
| Manufacturer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
| Packer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
| Country Of Origin | India |
