SKU # 1000136693

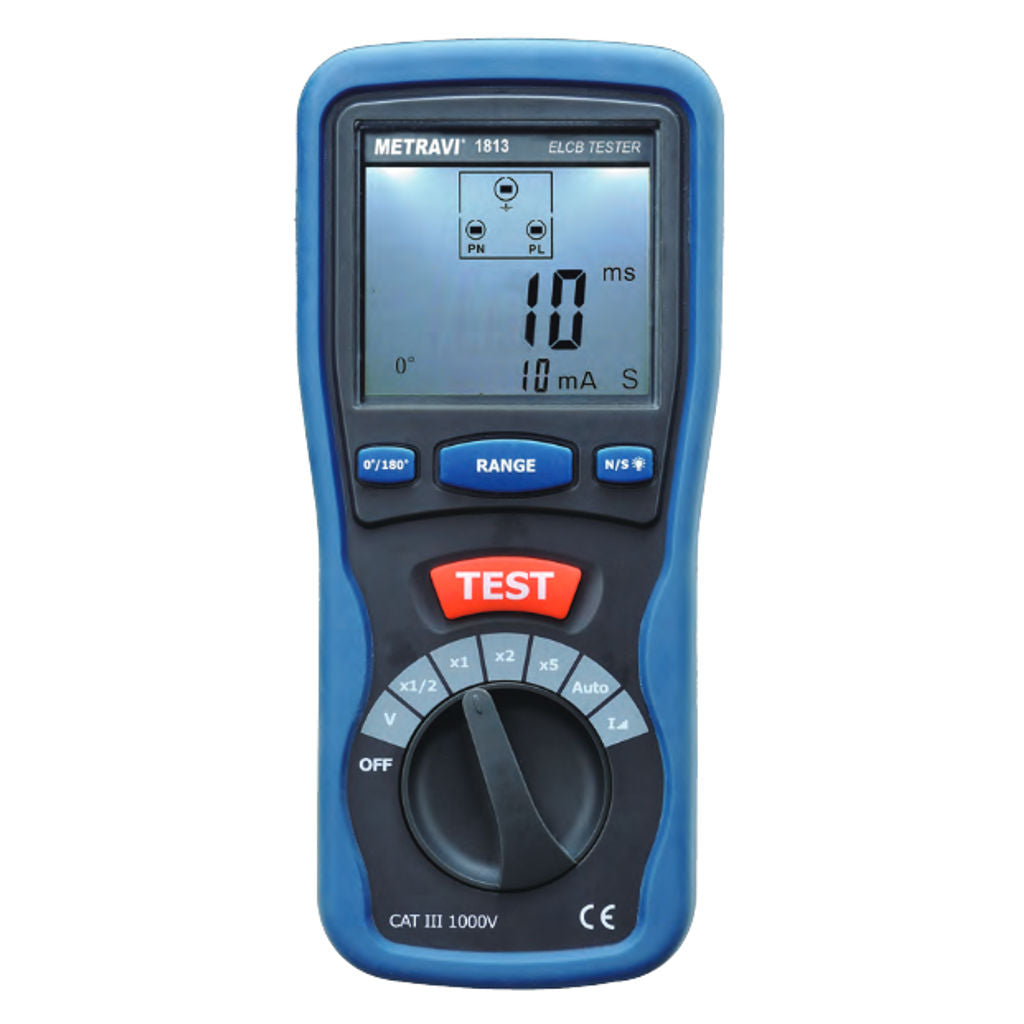

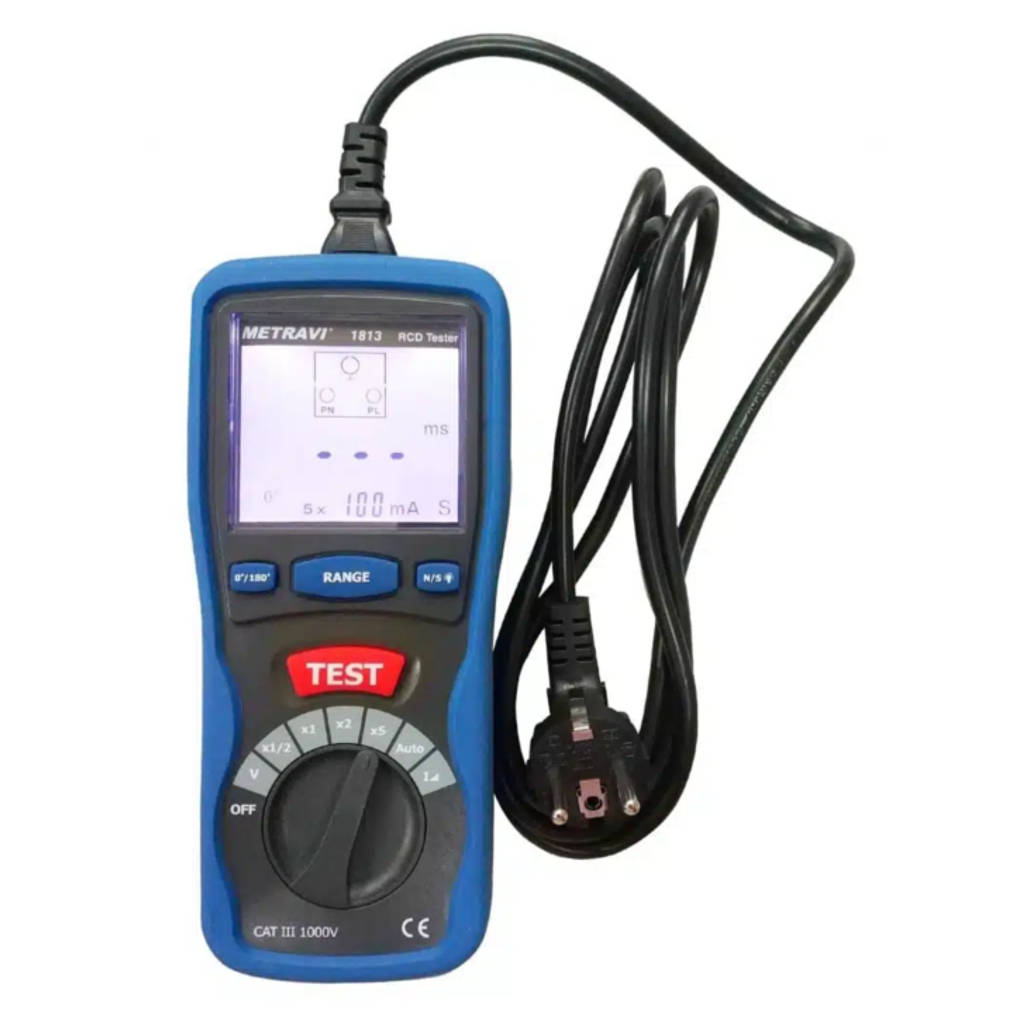

Metravi ELCB RCD Tester 1813

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
Key Features
-
The Metravi 1813 ELCB RCD Tester has the main function of testing and measuring the trip values of ELCB/RCCB in trip time (expressed in ms) or -in trip current value (expressed in mA)
-
This enables 10mA / 30mA / 100mA / 300mA / 500mA and 1000mA differential circuit breakers to be tested irrespective of their type (normal or delayed)
-
This comprehensive appliance can also be used to test the conformity of the network and the connection of the earthing conductor
ProductSpecification
| Brand | Metravi |
| Product Type | ELCB RCD Tester |
| Product Model | 1813 |
| Display | 3-digit measurement display |
| Earthing Systems | Operates on TT neutral and TN system |
| Operating Voltage | 230V (Ph/N) – 10/+6% 50/60 Hz |
| Trip Current | value expressed in mA |
| Trip Time | 10-150 ms at 2x, 10-2000 ms at 0.5x, 10-40 ms at 5x, 10-500 ms at 1x |
| Test Current | 10/30/100/500mA/1A |
| Current Selection | 0.5x, 1x, 2x, 5x nominal current |
| Ramp Test Mode | 0.4x to 1.4 times nominal rated current |
| Power Source | Battery Operated |
| Battery Size | AA |
| Battery Type | Alkaline |
| No Of Batteries | 6 |
| Locking And Warning Signals | For 400V network voltage and contact potential >50V |
| Certifications | CAT-III 600V, EN 61557-6, IEC-61010-1, IEC-61236, IEC-61557-6 |
| Ingress Protection | IP40 |
| 700 g | |
| Warranty | 1 Year |
OtherDetails
| Dimension (CM) - L x B x H | |
| Unit Of Measurement | 1 Piece |
| Weight | 0.7 kg |
| Generic Type | ELCB Tester |
| Manufacturer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
| Packer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
| Country Of Origin | India |
