SKU # 1000136500

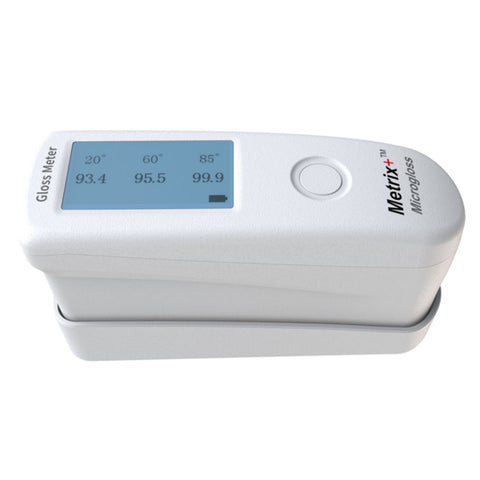

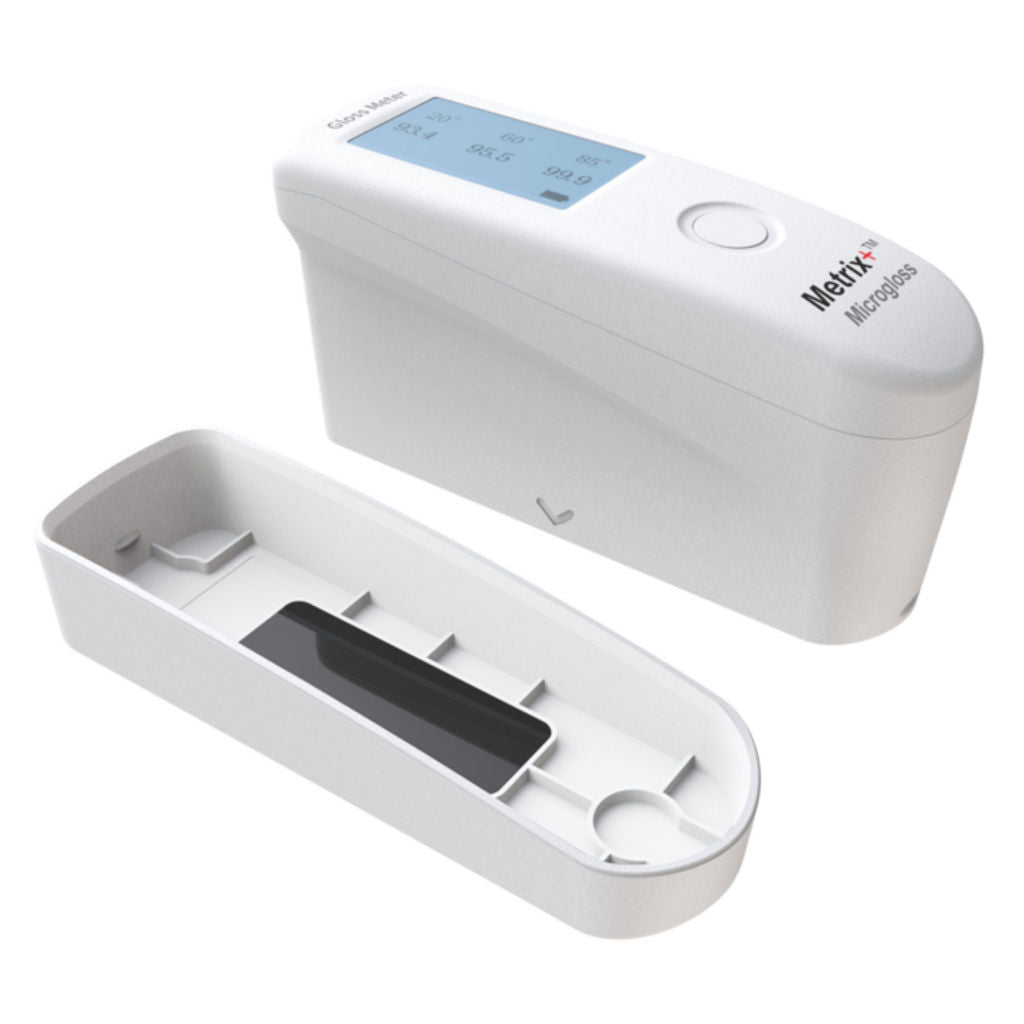

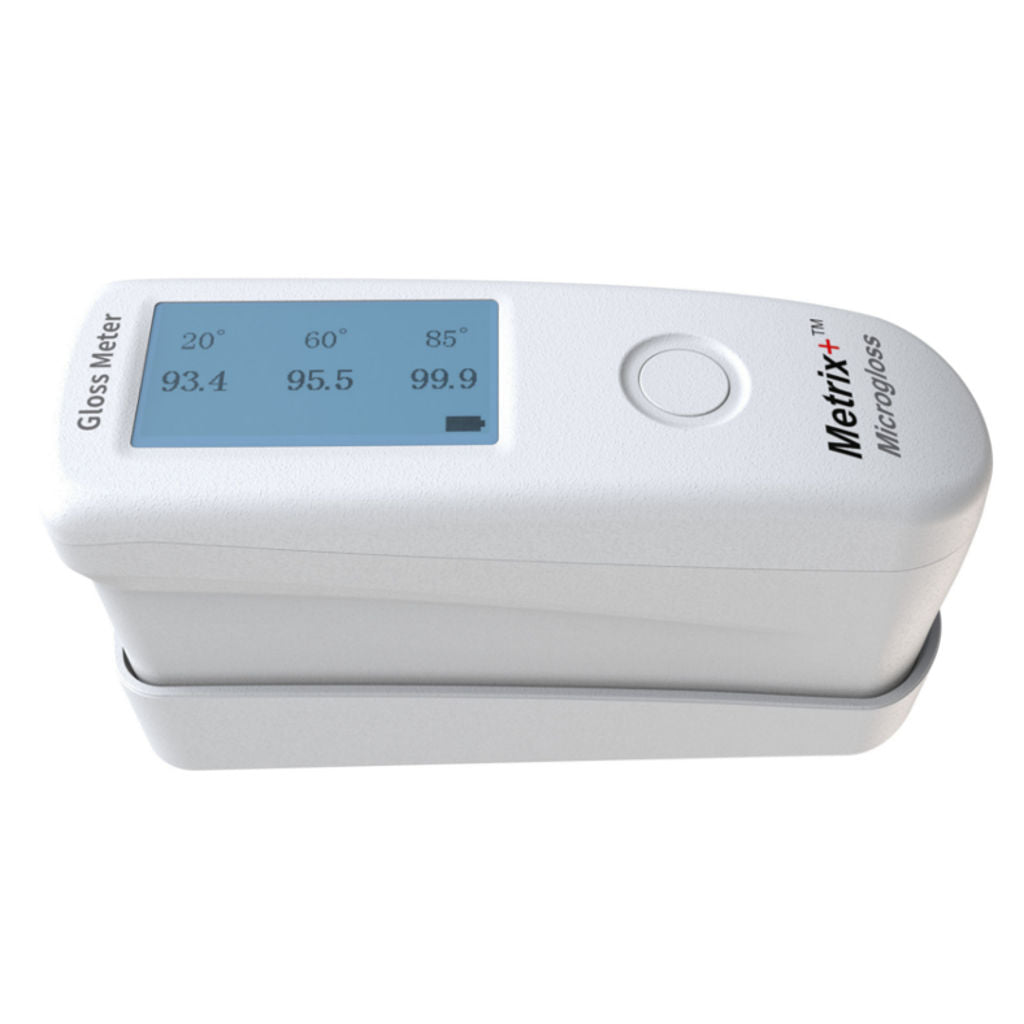

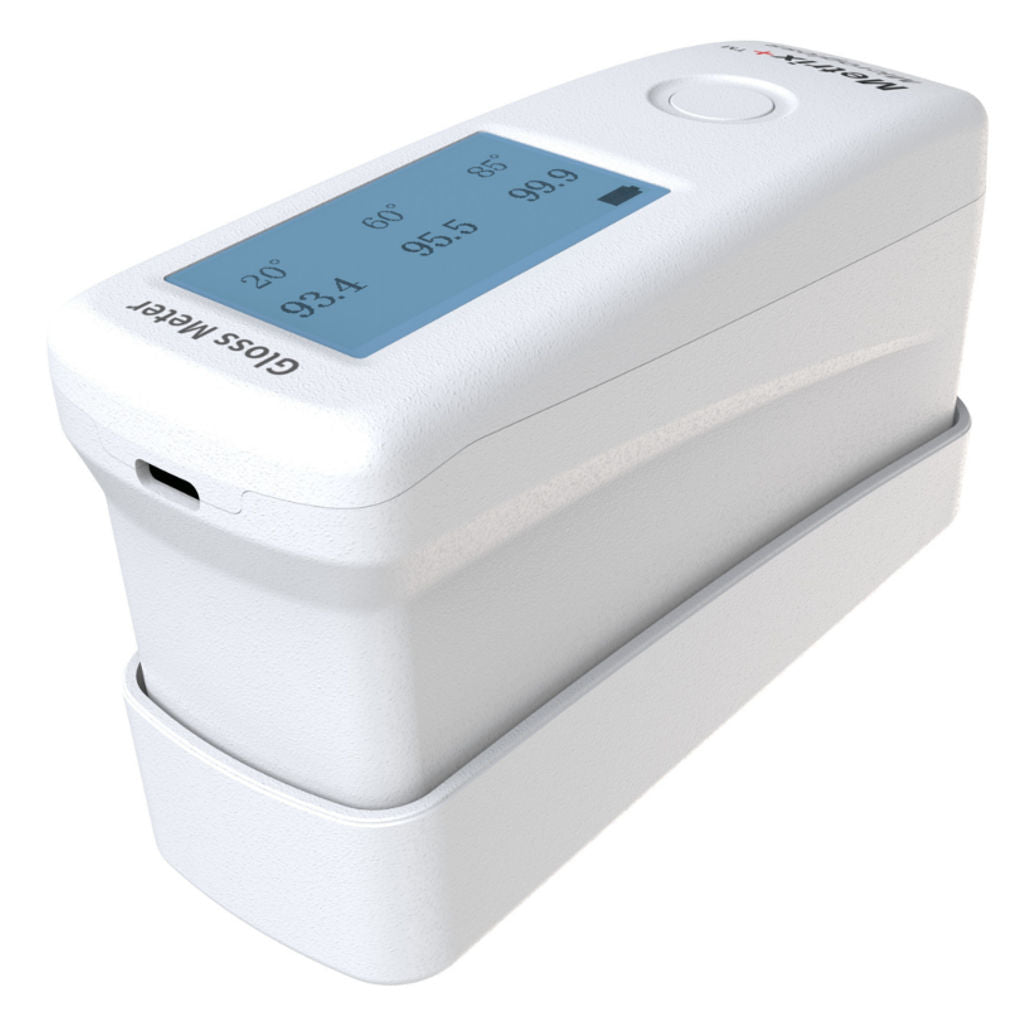

Metrix Plus Microgloss Digital Gloss Meter

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
Key Features
-
Multi angle digital gloss meter with measuring range up to 2000GU and one-button operation
-
Features
-
One-button operation
-
Simultaneous measurement in all three angles
-
USB Type C charging
-
Added functions, including data transfer, with PC interface
-
Applications
-
The glossmeter is used in many industries from paper mills to automotive and are used by the producer and the user alike
-
Few examples include Paints & coatings, additives, inks, plastics, aerospace, automotive manufacture and re-finish, etc
-
Measuring Principle
-
Gloss Meter is used to measure the specular reflection (gloss) of a surface
-
Gloss is determined by projecting a beam of light at a fixed intensity and angle onto a surface and measuring the amount of reflected light at an equal but opposite angle
ProductSpecification
| Brand | Metrix Plus |
| Product Type | Gloss Meter |
| Product Model | Microgloss |
| Standards | Comply with standard ISO 2813, ISO 7668, GB/T 9754, ASTM D 523, ASTM D 2457, DIN 67530, GB/T13891 All indexes meet the requirements of JJG 696-2015 Verification Regulation of “Specular Gloss Meters and Gloss Plates” as the grade 1 working meters |
| Measuring Range | 20o : 0 ~ 2000 Gloss Units 60o : 0 ~ 1000 Gloss Units 85o : 0 ~ 160 Gloss Units |
| Measuring Angle | 20o / 60o / 85o |
| Minimum Test Material Size | 57mm x 10mm |
| Reproducibility | 10 – 100 GU : +0.5 GU 100 – 1000 GU : +0.5% GU |
| Resolution | 0.1 GU |
| Repeatability | 10 – 100 GU : +0.2 GU 100 – 1000 GU : +0.2% G |
| Measuring Aperture | 20o : 9 x 9 mm 60o : 9 x 15 mm 85o : 5 x 38 mm |
| Measuring Time | 0.5 s |
| Battery | Lithium rechargeable battery 3.7V @ 2000mAh, charging via USB Type-C |
| Display | 240 x 128 dot matrix |
| Operating Temperature | 10 ~ 45oC |
| Storage Temperature | -10 ~ 60oC |
| Humidity | <85% RH, no condensation |
| Standard Accessories | Main unit, power adapter, software and cable, calibration plate, operational manual, optical cleaning cloth |
| Dimensions (L x W x H) | 140 x 48 x 75 mm |
| Weight | 300 g |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.300 kg |
| Generic Type | Gloss Meter |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
