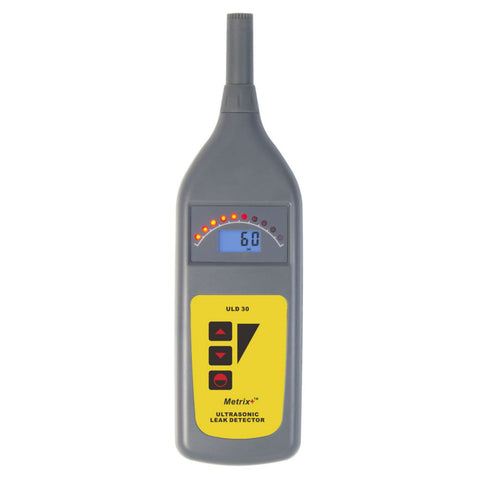

Metrix Plus Ultrasonic Leakage Detector ULD 30

Metrix Plus Ultrasonic Leakage Detector ULD 30

Visit the Metrix Plus Store

₹ 29,780.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Ultrasonic Leakage Detector for fast detection of gas or air leaks by detection of ultrasonic emissions, useful in HVAC systems, steam transfers, engine seals, electrical arcing, etc

  • Features

  • LED indication and audible tone

  • Audible sound can be identified by internal buzzer or optional external headphones

  • Compact size and simple operation

  • Applications

  • This instrument is designed to locate the source of the ultrasonic emissions generated by gas or air leaks, applicable to detect leaks in refrigeration and air conditioning systems, heating systems, internal leaks in steam transfers, compressed air leaks, tire and tube leaks, engine seals, electrical arcing, bake system, bearing problems

  • With ultrasonic transmitter, it is applicable to air leaks around door and window gaskets and seals, water leaks in roofs, conduit and pipe identification, door and trunk seals, windshield leaks

  • Measuring Principle

  • Gas or air leaks usually consists of gas flowing from higher-pressure region to lower one, and when this pressure difference happens through a small opening or a leak, the turbulence created generates an ultrasonic sound

  • This ultrasonic sound is very directional in nature, and this instrument can be used to pinpoint the exact origin of this sound and subsequently the leak

ProductSpecification

Brand

Metrix Plus

Product Type

Leakage Detector

Product Model

ULD 30

Leakage Sensitivity Indicator

LED display panel & audible tone. (LED display is a relative measurement only Audible tone is the frequency of the received ultrasonic sound divided by 32)

Frequency Response

20kHz ~ 100kHz

Power Supply

4 x 1.5V AAA (UM-4) batteries

Power Consumption

Approximately. DC 25mA

Operating Conditions

Temperature : 0 ~ 50°C, Humidity : <= 80% RH

Size

236 x 63 x 26 mm

Weight

140 g (Include batteries)

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

236 x 63 x 26

Unit Of Measurement

1 Piece

Weight

0.140 kg

Generic Type

Leakage Detector

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
