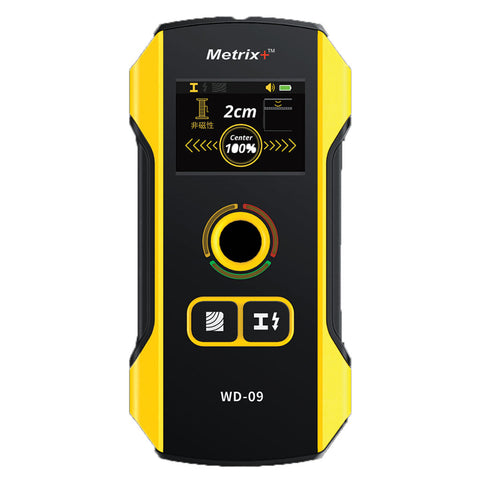

Metrix Plus Wall Metal Detector WD 09

Metrix Plus Wall Metal Detector WD 09

Visit the Metrix Plus Store

₹ 5,890.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Bestomart Diwali Sale 2025

Coupon Image

Use the coupon codes purchase of ₹4,000/- & above

Above ₹2,500
Use
LIGHT100
Above ₹7,500
Use
CRACKER200
Above ₹15,000
Use
SHINE300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • WD 09 is a wall detector to detect metal (steel bars, copper pipes) and cables hidden in walls, ceilings and floors; wooden beams, metal and cables under plasterboard

  • Features

  • Detect and locate metals(magnetic and non-magnetic), AC live wires and wooden materials inside walls, ceilings, plasterboards, plywood, et

  • High definition TFT display with intuitive user interface

  • 3 level sensitivity adjustment

  • Positioning hole design to mark areas, helpful for drilling applications

  • Display helps in centering to the target detection area, with indicator lights

  • Portable and ergonomic to carry with pouch included in the box

  • Manual in Hindi and English languages

  • Universal Type C charging

ProductSpecification

Brand

Metrix Plus

Product Type

Metal Detector

Product Model

WD 09

Detection Type

Metal Detection- Magnetic metals (steel bars, rebars, iron, etc), non-magnetic metals (wires, copper pipes, etc)

Cable Detection (AC live wires)

Wooden Detection (wooden studs, wood rails, light steel joists, nails, conduits, other foreign objects, behind plasterboard walls,

bare wood floors, plywood, coated wood walls) (wooden detection cannot detect objects in concrete, mortar, blocks, bricks, carpets,

foil-faced materials, metal surfaces, tiles, glass or any other dense materials)

Detection Depths

Ferrous metals: 120mm

Non-ferrous metals(copper, etc): 100mm

AC wires: 50mm

Single stranded copper wire (>4mm2): 40mm

Other foreign objects(usually wooden materials): 38mm

Detection Indications

Detection depth distance in main display with prompts for detection strength, light indication and sound indication

Working Conditions

Temperature: -10 ~ 50°C

Humidity: 0 ~ 85% (metal mode), 0 ~ 60% (foreign object mode), 0 ~ 30% (AC wire mode)

Battery

3.7V 300mAh, ~2hrs continuous usage time

Auto Shutdown Time

5mins of no activity

Standard Accessories

Main unit, manual, charging cable, pouch; gift box packing

Dimensions

138 x 68 x 22 mm

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

138 x 68 x 22

Unit Of Measurement

1 Piece

Weight

0.140 kg

Generic Type

Detectors

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
