SKU # 1000128053

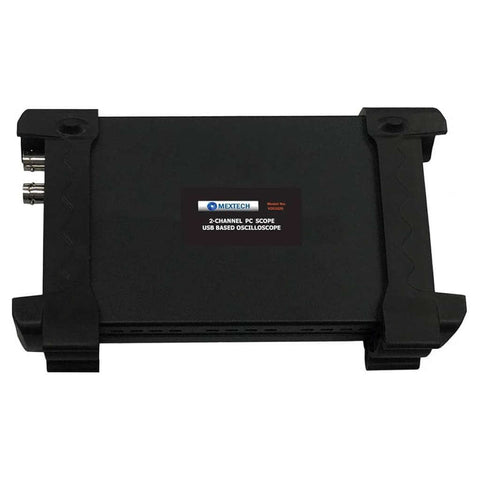

Mextech 2 Channel USB Oscilloscope 20MHz 48MS/s VDS1026
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Application
-
With reference waveform
-
Multiple measurement functions
-
Math: add, subtract, multiply, divide, and FFT
-
USB 2.0 interface, no external power required
-
OS: Windows 2000, Windows XP, Windows 7, Windows8, Windows 10
Product Specification
| Brand | Mextech |
| Product Type | Oscilloscope |
| Product Model | VDS1026 |
| Measurement Inputs | Two separated channels CH1, CH2 |
| Bandwidth (-3dB) | 20MHz |
| Feed Impedance | 1MOhm // 25pF |
| Maximum Sample Rate | 48MSa/s real time |
| Gain Range | 10mV/div -5V/div |
| Timebase Range | 4ns-5000s |
| Maximum Input voltage | +/- 5V |
| DC Accuracy | +/-3% of full scale |
| Input Connection | DC, AC, GND |
| Vertical Resolution | 8 bits |
| Maximum Storage Capacity | 1M |
| Trigger Mode | Auto, Normal, Single |
| Software | Windows from XP |
| Power Supply | USB-Bus-Powered 2 x USB |
| Including Components | Digital Storage Oscilloscope Passive Probe Test Leads with 2 Clips USB Cable Power Cord CD with software and manual |
| Dimension (W X H X D) | Approx. 206 x 120 x 35 mm |
| Weight | 370 g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 20.6 x 12 x 3.5 |
| Unit of Measurement | 1 Piece |
| Weight | 0.37 kg |
| Generic Type | Oscilloscopes |
| Manufacturer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Packer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Country of Origin | India |
