SKU # 1000045823

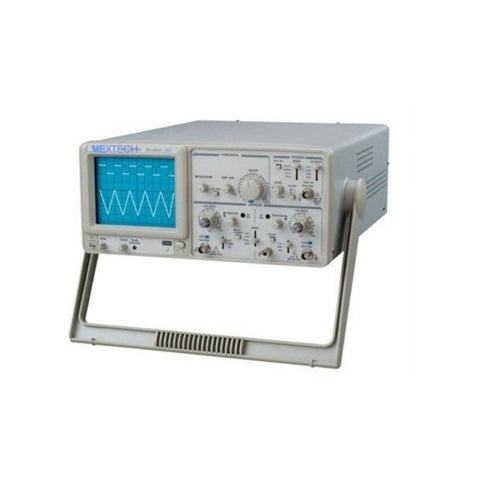

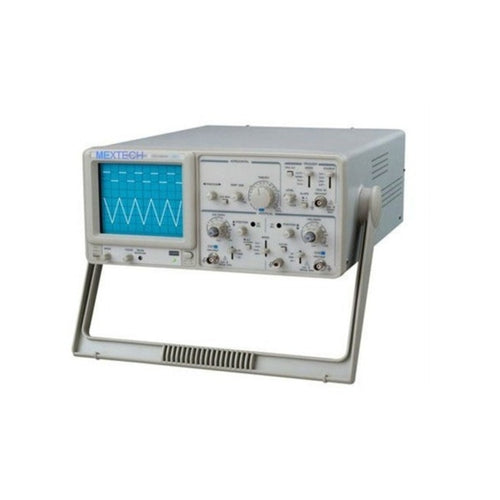

Mextech Analogue Oscilloscope 30 MHZ OS-5030
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High luminance, internal graticule CRT
-
Japanese electronic encoder,light,handy and reliable
-
Fully sealed long live vertical mode switch
-
ALT Triggering Function. Two independent signals
-
simultaneous observation, Build-in 6 Digit Frequency Counter
-
30MHz Dual Channel , 10 times sweep magnification, TV Synchronization-Y mode
-
Horizontal System
-
Sweep time: 0.2uSec~0.5Sec/DIV,20steps in 1-2-5 sequence;
-
Sweep time accuracy:±3%
-
Vernier sweep time control:≤1/2.5 of panel-indicated ＆#118alue;
-
Sweep magnification: 10 times;
-
×10MAG sweep time accuracy: ±5% (20nSec~50nSec are uncalibrated);
-
Linearity:±5%,×10MAG: ±10% (0.2s~1us)
-
Position shift caused by ×10MAG: within 2DIV. At CRT screen center
-
X-Y MODE
-
Frequency bandwidth: DC to at least 500KHz;
-
X-Y phase difference:≤3°at DC~50KHz
-
Sensitivity: Same as vertical axis. (X-axis:CH1 input signal; Y-axis:CH2 input signal.);
-
CALIBRATION VOLTAGE
-
Waveform: Positive-going square wave;
-
Frequency: Approx. 1KHz;
-
Duty ratio: Within 48:52;
-
Output voltage: 2Vp-p±2%;
-
Output impedance: Approx.1KΩ
-
CALIBRATION SIGNAL
-
Waveform: Positive-going square wave;
-
Frequency: Approx. 1KHz;
-
Duty ratio: Within 48:52;
-
Output voltage: 2Vp-p±2%;
-
Output impedance: Approx.1KΩ
-
CRT
-
Type: 6-inch rectangular type, internal graticule;
-
Phosphor:P31;
-
Acceleration voltage: Approx.2KV(20MHz)/Approx.12kv(40MHz);
-
Effective screen size:8×10DIV[1DIV=10mm(0.39in)];
-
Graticule: Internal;
-
Trace rotation: Provided
-
VERTICAL AXIS
-
Sensitivity:5mV~5V/DIV,10 steps in 1-2-5sequence, Sensitivity accuracy:≤3%
-
Vernier vertical sensitivity: Continuously variable to 1/2.5 or less of panel-indicated ＆#118alue Frequency
-
bandwidth: DC~30MHz(x5MAG:DC~7MHz)/DC~40MHz(x5MAG:DC~15MHz)DC~50MHz(X5MAG:DC~15MHz)
-
AC coupling: Low limit frequency 10Hz. (With reference to 100KHz, 8DIV, Frequency response with-3dB.)
-
Rise time: Approx.17.5ns (x5 MAG: Approx.50nS) Approx.8.75ns (x5 MAG: Approx.25nS)
-
Approx.7ns (x5 MAG: Approx.23.3nS)
-
Input impedance: Approx.1MΩ/Approx.25pF
-
DC balance shift: 5mV~5V/DIV: ±0.5DIV, 1mV~2mV/DIV ±2.0DIV
-
Linearity:<±0.1DIV of amplitude change when waveform of 2DIV at graticule center is moved vertically
-
vertical modes: CH1 single channel; CH2 single channel; DUAL: CH1 and CH2 are displayed
-
Simultaneously. ALT or CHOP selectable at any sweep at any sweep rate; ADD: CH1+CH2 algebraic addition
-
Chopping repetition frequency: Approx. 250KHz, Input coupling: AC, GND,DC
-
Maximum input voltage: 300Vpeak (AC: frequency 1KHz or lower);
-
common mode rejection ratio: 50:1 or better at 50KHz sinusoidal wave.
-
(When sensitivities of Ch1 and Ch2 are set equally)
-
Isolation between channels (At 5mV/DIV range):
-
>1000:1 at 50KHz; >30:1 at 15MHz/>30:1 at 35MHz/>30:1 at 45MHz
-
CH2 INV BAL: Balanced point variation:≤1DIV (Reference at center graticule)
-
TRIGGERING
-
Triggering source: CH1,CH2,LINE,EXT
-
Coupling: AC: 20Hz to full bandwidth, SLOPE:+/-
-
Sensitivity: 20Hz~2MHz:1DIV, TRIG-ALT:2DIV EXT:200mV；TRIG-ALT:3DIV,EXT:800mV;
-
2~30MHz:1.5DIV；30MHz~40MHz:2.5DIV；40MHz~50MHz:3DIV；
-
TV: Sync pulse more than 1 DIV (EXT:1V)
-
Triggering modes: AUTO; NORM: TV-V: TV-H: (Both TV-V and TV-H synchronize only
-
when the synchronizing signal is negative)
-
EXT triggering signal input: Input impedance/: Approx:1MΩ/approx.25pF;
-
Max.input voltage:300V (DC+AC peak), AC: Frequency not higher than 1KHz
Product Spacification
|
Brand |
Mextech |
|
Product Code |
OS-5030 |
|
Product Type |
Analogue Oscilloscope |
|
Frequency |
30 MHz |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Analogue Oscilloscopes |
Manufacturer Details |
Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
Packer Details |
Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
Country of Origin |
India |
