SKU # 1000128056

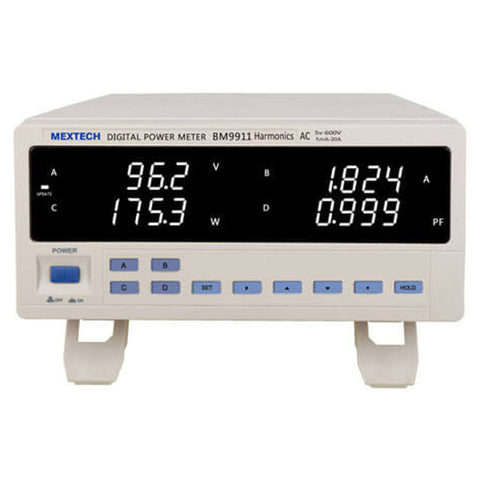

      Mextech Digital Power Meter 5V-600V AC BM9911

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Application
- Power Consumption Test for Household Appliance
- Power Consumption Test for the Air-condition
- Power Consumption for Light Products
- Power Consumption Test for LED Lamps
- Test for Electrical Machine and Motor
- Test for Chargers and Switching Power Supply
- Features
- Four windows simultaneously Display: Voltage, Current, Power, Power Factor / Frequency, 2-50 Harmonics
- All measurements are True RMS
- Auto Ranging
- On the outside with a high noise immunity
- Standard RS232 communication interface
- Standard harmonic testing software
- Suitable for the production line test: Lighting Products, Home Appliances, Electrical Products,Power Products and other
- Wiring Simplex
- Display 4 LED digital tube window, 7 LED digital tube
-
Measurement items Voltage V, current A, active power W, power factor PF, frequency Hz, 2-50 times harmonic
Product Specification
| Brand | Mextech |
| Product Type | Power Meter |
| Product Model | BM9911 |
| Display | 4 LED digital tube window, 7 LED digital tube |
| Wiring | Simplex |
| Measurement Items | Voltage   V, current A, active power W, power factor PF, frequency Hz, 2-50   times |
| Measurement Form | True RMS |
| Voltage Range | 5V ~ 600V AC (automatic range switching) |
| Peak Voltage | 700V AC |
| Minimum Test Voltage | 5V AC (less than 5V can be customized) |
| Current Range | 5mA ~ 20A AC (automatic range switching) |
| Peak Current | 26A AC |
| Minimum Test Current | 5mA AC (less than 5mA can be customized) |
| Power Range | 0.1W-12kW |
| Power Factor Range | 0.001-1.000 |
| Calculation Method | Watts (W) ÷ [Voltage (V) × Current (A)] = Power factor (PF |
| Frequency Range | 45-65 Hz |
| Basic Accuracy | ± (0.4% of reading + 0.1% of range + 1 word) |
| Measure The Speed | 5 times / second |
| Nput Resistance | ≥1MΩ (all voltage ranges) |
| Power Supply | 220V AC, 50/60 Hz |
| Communication Interface | RS232 |
| Including Components | Power Lines, Fuses, Manuals, Software CD-ROM, Communication Lines |
| Dimension (W X H X D) | 380 x 260 x 160 mm |
| Weight | 4.3 Kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 38 x 26 x 16 |
| Unit of Measurement | 1 Piece |
| Weight | 4.3 kg |
| Generic Type | Power Meter |
| Manufacturer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Packer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Country of Origin | India |
