SKU # 1000128057

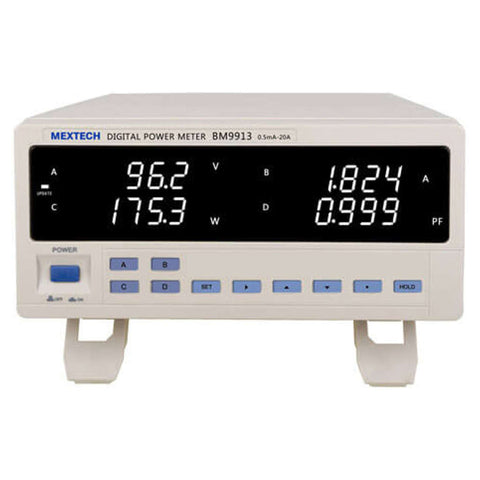

Mextech Digital Power Meter 5V-600V AC BM9913

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Application
-
Power Consumption Test for Household Appliance
-
Power Consumption Test for the Air-condition
-
Power Consumption for Light Products
-
Power Consumption Test for LED Lamps
-
Test for Electrical Machine and Motor
-
Test for Chargers and Switching Power Supply
-
Features
-
Led digital display : voltage, current, power, power factor, frequency
-
All measurements are TRMS
-
Automatic Range
-
Not affected by external noise
-
Min Measuring current is 0.5 Ma
-
Support data latching can be set lower and upper alarm function, PASS the light is Green, NG the light is Red, Easy to distinguish
-
Connection Single Phase
-
Display LED Digital Screen
-
Measuring Items Voltage, Current, Active Power, Power factor, Frequency
Product Specification
| Brand | Mextech |
| Product Type | Power Meter |
| Product Model | BM9913 |
| Display | LED Digital Screen |
| Connection | Single Phase |
| Measuring Items | Voltage, Current, Active Power, Power factor, Frequency |
| Measuring Form | TRMS |
| Voltage Range | 5V - 600V AC (Switch the range automatically) |
| Peak Voltage | 700V AC |
| Minimum Test Voltage | 5V AC (under 5V, can be Customized) |
| Current Range | 0.5mA - 40 A AC (switch the range automatically) |
| Peak Current | 48A AC |
| Minimum Testing Current | 0.5mA AC (under 0.5mA, can be customized) |
| Power Range | 0.01 W – 24KW (Be suitable for stanbdby power consumption of product) |
| Power Factor Range | 0.001 – 1.000 |
| Compute Mode | Watt (W)/ Voltage (V) x Current (A) = Power Factor (PF) |
| Frequency Range | 45-65 Hz |
| Basic Accuracy | ± (0.4% Read + 0.1 % Range +1 Digit) |
| Measuring Speed | 5 times / second |
| Input Impedance | > 1 MΩ , (all voltage ranges) |
| Power Supply | 85 – 265 V AC 50/60Hz, 85 – 265V DC |
| Including Components | Power Supply cable. Fuses, Specification |
| Dimension (W X H X D) | 355 x 223 x 112mm |
| Weight | 1.7 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 35.5 x 22.3 x 11.2 |
| Unit of Measurement | 1 Piece |
| Weight | 1.7 kg |
| Generic Type | Power Meter |
| Manufacturer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Packer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Country of Origin | India |
