SKU # 1000045843

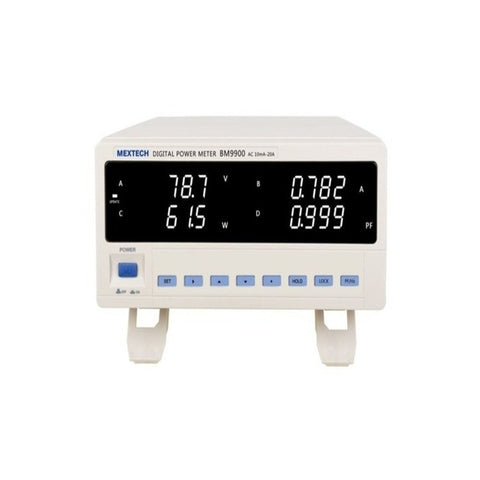

Mextech Power Meter BM9900

Mextech Power Meter BM9900

Visit the Mextech Store

₹ 11,450.00

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch In 14-21 Business days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • LED Digital Display : Voltage, Current, Power, Power Factor, Frequency

  • All Measurements Are Trms

  • Automatic Range

  • Accuracy : 0.5

  • Not Affected By External Noise

  • Support Data Latching

  • Can Be Set Lower And Upper Alarm Function, PASS the light is Green, NG the light is Red, Easy to distinguish

  • Areas OF Application

  • Power Consumption Test For Household Appliance

  • Power Consumption Test For The Air-Condition

  • Power Consumption For Light Products

  • Power Consumption Test For LED Lamps

  • Test For Electrical Machine And Motor

  • Test For Chargers And Switching Power Supply

Product Spacification

Brand

Mextech

Product Code

BM9900

Product Type

Power Meter

Connection

Single Phase

Display

LED Digital Screen

Measuring Items

Voltage, Current, Active Power, Power factor, Frequency

Measuring Form

TRMS

Voltage Range

5V – 600V AC(Switch the range automatically)

Speak voltage : 700V AC

Min. Test Voltage: 5V AC(under 5V, Can be Customized)

Current Range

10mA – 20 A AC(switch the range automatically)

Speak Current : 26A AC

Min. Testing Current 10mA AC (under 10mA, Can be customized)

Power Range

0.1 W – 12 KW

Power Factor Range

0.001 – 1.000

Compute mode: Watt (W)/ Voltage (V) * Current (A) = Power Factor (PF)

Frequency Range

45-65 Hz

Basic Accuracy

+- (0.4% Read + 0.1 % Range +1 Digit)

Measuring Speed

Five times per second

Input Impedance

>1 M ohm, (All Voltages)

Power Supply

85 – 265 V AC 50/60Hz, 85 – 265V DC

Dimensions

355mm(L) x 223mm(W) x 112mm(H)

Weight

1.7kg

Attachment

Power Supply cable. Fuses, Specification, RS232/RS485 Optional

Warranty

As Per Manufacturer Terms And Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Power Meter

Manufacturer Details

Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India

Packer Details

Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India

Country of Origin

India
