SKU # 1000133115

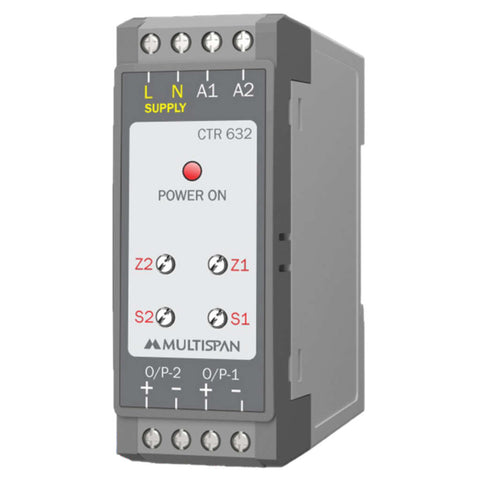

Multispan Current Transducer CTR-632

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Features
-
1.5KV isolation supply, input & output
-
Linearized O/P
-
Zero & span correction facility through trim port
-
Fast response time <150ms
-
Application
-
Field Interface device
-
Impedance matching of
-
transmitters and receiver
-
Isolation of field signals
-
Distribution of signals
-
Factory automation
-
Powering of field Transmitters
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
Brand | Multispan |
Product Type | Current Transducer |
Product Model | CTR-632 |
Input Specification | |
Input | 0 to 5Amp AC (True RMS) |
CMRR | >120dp (Typical) |
Temperature Co-efficient | <100 PPM |
Output Specification | |
Output 1 & 2 | 0 to 20mA DC, 4 to 20mA DC, 0 to 10V DC (Factory Set) |
Response Type | <150ms |
Output Impedance | <500Ω |
Power Supply | |
Auxiliary Voltage | 100 to 270V AC,50/60Hz |
Power Consumption ( VA Rating ) | 4VA @230V AC |
Isolation | |
Isolation Type | Optical - 3 way |
Isolation Between Supply, Input & Output | At least 1.5KV AC for 1 min |
Dimension (HxWxD) | 76 x 27 x 85 |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 7.6 x 2.7 x 8.5 |
Unit of Measurement | 1 Piece |
Weight | 0.4 kg |
Generic Type | Current Transducers |
Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Country of Origin | India |
