SKU # 1000077976

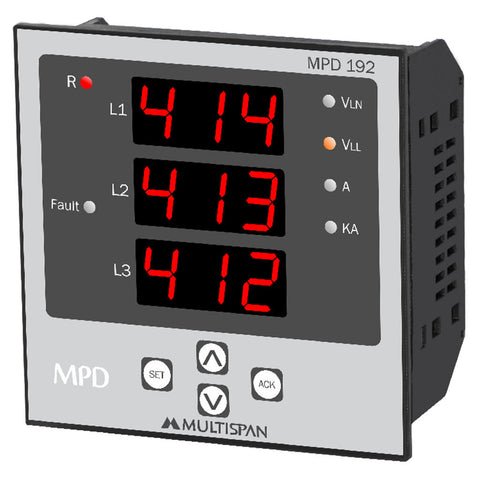

Multispan Motor Production Device 2 Relay MPD-192

Multispan Motor Production Device 2 Relay MPD-192


₹ 3,390.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Specification

Brand

Multispan

Product Type

Protection Device

Product Model

MPD-192

Input Signal

3Ø 4 Wire / 3Ø 3Wire

Voltage

50-520V AC(L-L), 30-300V AC(L-N)

Current

60mA to 5A (CT Selection 5A- 6000A Ac) (Additional Leakage Current Measurement thru CBCT in MPD-19 EL)

Output

1st Relay (NO-C-NC) 10 A, 230V AC, (resistive load)

2nd Relay (NO-C) 5A (with simultaneous actuation)

Tripping Facility

Over Current

Under Current

Short Circuit

Lock Rotor Point

Earth Leakage (In MPD 19EL)

Over Voltage

Under Voltage

Phase sequence

Unbalance

Over Frequency

Under Frequency

Phase Loss

Neutral Loss

Accuracy

Class 1.0

Power Supply

100 to 270V AC (SMPS), 50/60Hz

Dimension (HxWxD)

96 x 96 x 92 mm

Mounting

92 x 92 mm


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Motor Production Devices

Manufacturer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Packer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Country of Origin

India
