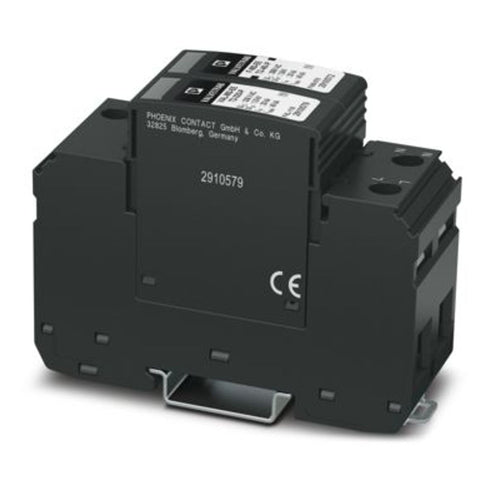

Phoenix Contact Contact Type 2 Surge Arrester VAL-MS-EE-T2-1+1-320
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Plug-in surge arrester, in accordance with Type 2/Class II, for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE)
Product Specification
| Brand | Phoenix Contact |
| Product Type | Surge Arrester |
| Product Model | VAL-MS-EE-T2-1+1-320 |
| Article No | 1185337 |
| IEC Test Classification | II | T2 |
| En Type | T2 |
| IEC Power Supply System | TN-S | TT |
| Surge Protection Fault Message | optical |
| Insulation Characteristics | |
| Pollution Degree | 2 |
| Electrical Properties | |
| Nominal Frequency FN | 50 Hz (60Hz) |
| Indicator/Remote Signaling | |
| Switching Function | Changeover contact |
| Operating Voltage | 5 V AC ... 250 V AC | 5 V DC ... 30 V DC |
| Operating Current | 5 mA AC ... 1 A AC | 5 mA DC ... 1 A DC |
| Connection Data | |
| Connection Method | Screw connection |
| Screw Thread | M5 |
| Tightening Torque | 3 Nm (1.5 mm² ... 16mm²) 4.5 Nm (25mm²...35 mm²) |
| Stripping Length | 16 mm |
| Conductor Cross Section Flexible | 1.5 mm² ... 25 mm² |
| Conductor Cross Section Rigid | 1.5 mm² ... 35 mm² |
| Conductor Cross Section Awg | 15 ... 2 |
| Connection Method | Fork-type cable lug |
| Stripping Length | 16 mm |
| Conductor Cross Section Flexible | 1.5 mm² ... 16 mm² |
| Connection Method | Plug-in/screw connection via COMBICON |
| Screw Thread | M2 |
| Stripping Length | 7 mm |
| Conductor Cross Section Flexible | 0.14 mm² ... 1.5 mm² |
| Conductor Cross Section Rigid | 0.14 mm² ... 1.5 mm² |
| Conductor Cross Section Awg | 28 ... 16 |
| Material Specification | |
| Flammability Rating According To Ul 94 | V-0 |
| Cti Value Of Material | 600 |
| Insulating Material | PA 6.6/PBT |
| Material Group | I |
| Housing Material | PA 6.6 | PBT |
| Protective Circuit | |
| Mode Of Protection | L-N | L-PE | N-PE |
| Direction Of Action | 1L-N & N-PE |
| Nominal Voltage U N | 240/415 V AC (TN-S) | 240/415 V AC (TT) |
| Nominal Frequency F N | 50 Hz (60 Hz) |
| Maximum Continuous Operating Voltage U C (L-N) | 335 V AC |
| Maximum Continuous Operating Voltage U C (L-PE) | 335 V AC |
| Maximum Continuous Operating Voltage U C (N-PE) | 260 V AC |
| Rated Load Current I L | 80 A |
| Residual Current I Pe | ≤ 5 μA |
| Power Consumption Without Load Pc | ≤ 150 mVA |
| Nominal Discharge Current I N (8/20) Μs | 20 kA |
| Maximum Discharge Current I Max (8/20) Μs | 40 kA |
| Total Discharge Current I Total (8/20) Μs | 40 kA |
| Follow Current Interrupt Rating I Fi (N-PE) | 100 A |
| Short-Circuit Current Rating I Sccr | 25 kA |
| Voltage Protection Level U P (L-N) | ≤ 1.5 kV |
| Voltage Protection Level U P (L-PE) | ≤ 1.9 kV |
| Voltage Protection Level U P (N-PE) | ≤ 1.5 kV |
| Residual Voltage U Res (L-N) | ≤ 1.5 kV (at I n ) ≤ 1.3 kV (at 10 kA) ≤ 1.2 kV (at 5 kA) ≤ 1.1 kV (at 3 kA) |
| Residual Voltage U Res (L-PE) | ≤ 1.9 kV (at I n ) ≤ 1.5 kV (at 10 kA) ≤ 5 kV (at 5 kA) ≤ 1.2 kV (at 3 kA) ≤ 0.4 kV (at I n ) |
| Residual Voltage U Res (N-PE) | ≤ 0.25 kV (at 10 kA) ≤ 0.15 kV (at 5 kA) ≤ 0.1 kV (at 3 kA) |
| Tov Behavior At U T (L-N) | ≤ 0.25 kV (at 10 kA) ≤ 0.15 kV (at 5 kA) ≤ 0.1 kV (at 3 kA) |
| Tov Behavior At U T (L-N) | 415 V AC (5 s / withstand mode) 440 V AC (120 min / safe failure mode) |
| Tov Behavior At U T (N-PE) | 1200 V AC (200 ms / withstand mode) |
| Response Time T A (L-N) | ≤ 25 ns |
| Response Time T A (L-PE) | ≤ 100 ns |
| Response Time T A (N-PE) | ≤ 100 ns |
| Max. Backup Fuse With V-Type Through Wiring | 80 A (gG) |
| Max. Backup Fuse With Branch Wiring | 125 A (gG) |
| Ambient Conditions | |
| Degree Of Protection | IP20 (only when all terminal points are used) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible Humidity (Operation) | 5 % ... 95 % |
| Shock (Operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Standards And Regulations | |
