SKU # 1000140310

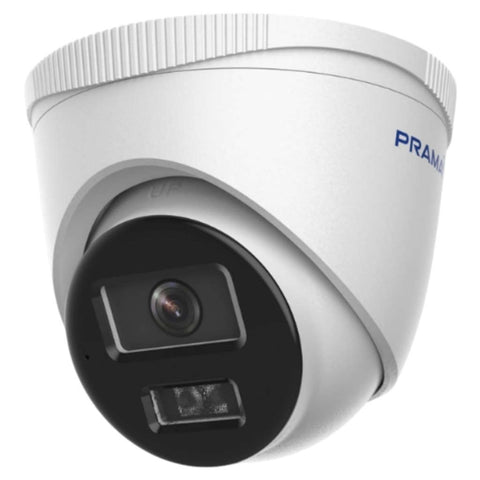

Prama Ranginview Series 2 MP Dual Light Fixed Turret Network Camera PT-NC123D7-WNMS/AW(D2)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
High-Quality Imaging
-
2MP resolution ensures superior image
-
Advanced Imaging
-
24/7 colorful imaging
-
Target Classification
-
Focus on human and vehicle classification based on advanced intelligent algorithms.
-
Smart Dual Light
-
advanced technology with long range
-
Efficient Compression
-
Efficient H.265 compression technology saves bandwidth and storage
-
Enhanced Security
-
Provide real-time security via built-in two-way audio and strobe light alarm
-
On-Board Storage
-
Supports storage up to 512 GB (SD card slot)
-
Durable Design
-
Water and dust resistant (IP67)
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
Prama |
|
Product Type |
Network Turret Camera |
|
Product Model |
PT-NC123D7-WNMS/AW(D2) |
|
Camera |
|
|
Image Sensor |
1/2.8 inch Progressive Scan CMOS |
|
Maximum Resolution |
1920 × 1080 |
|
Minimum Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103° |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F1.0 |
|
DORI |
|
|
DORI |
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m |
|
Illuminator |
|
|
Supplement Light Type |
IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR, VBR |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Audio |
|
|
Audio Type |
Mono sound |
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IP, UDP, Multicast, NTP, DDNS, PPoE, SNMP, QoS, DHCP, IPv4, IPv6, DNS, HTTP,HTTPS, RTSP, SRTP/RTSPS, Bonjour, NAT, RTCP, UPnP, ONVIF, SSH, SMTP |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
ONVIF (Profile S, Profile G, Profile T) |
|
User/Host |
Up to 32 users , 3 user levels: administrator, operator, and user |
|
Security |
Password protection, complicated password, watermark, digest authentication for HTTP, WSSE and digest authentication for ONVIF, TLS 1.3 |
|
Web Browser |
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
Image |
|
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
SNR |
≥ 52 dB |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/micro SDHC/micro SDXC card,up to 512 GB |
|
Built-in Microphone |
Yes, 1 built-in microphone |
|
Built-in Speaker |
1 built-in speaker, Max. Power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types(person and vehicle)), video tampering alarm, exception |
|
Linkage |
Upload to FTP/SFTP/memory card, trigger recording, notify surveillance center, send email, trigger capture |
|
General |
|
|
Language |
English, Hindi |
|
Power |
12 VDC ± 25%, 0.55 A, max. 6.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 8 W |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
General Function |
Heartbeat, mirror, flash log, password reset, password protection, anti-banding |
|
Protection |
IP67 |
|
Flashing Light |
White Light |
|
Material |
Metal & Plastic |
|
Package Dimension |
150 mm × 150 mm × 141 mm (5.91 inch × 5.91 inch × 5.55 inch) |
|
Dimension |
Ø116 mm × 102.4 mm (Ø4.57 inch × 4.03 inch) |
|
With Package Weight |
Approx. 646 g |
|
Weight |
Approx. 400 g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
15 x 15 x 14.1 |
Unit of Measurement |
1 Piece |
Weight |
0.64 kg |
Generic Type |
Turret Camera |
Manufacturer Details |
STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444 |
Packer Details |
STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444 |
Country of Origin |
India |
