LAST SOLD AT ₹ 2,260.00
SKU # 1000084601

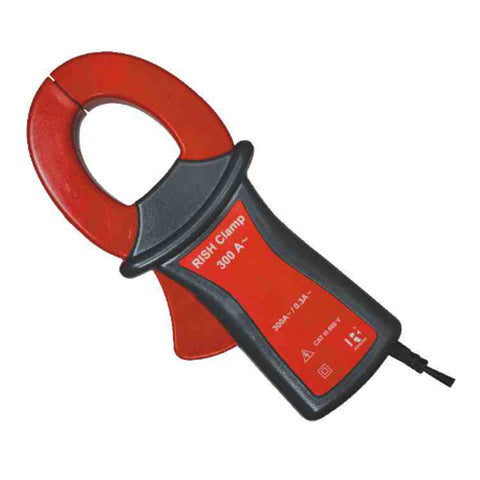

Rishabh Rish Clamp On Current Transformer 300A/0.3A AC

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Rish Clamp-on CT 300 A / 1000A measures current without interrupting the conducting line
-
They are used for electrically isolated measurement of alternating current within a broad range, without interrupting the current conducting cable and bus bars
-
Minimum transformation ratio error
-
Compact, handy design
-
Permanently connected safety cables
-
Measurement
-
Rish Clamp on CT measures AC current without interrupting the conducting line
-
The opening contact of both the core which becomes visible when trigger is pressed must be always kept clean
-
Even small outside particles can deviate measuring accuracy
-
The measuring secondary long cables with contact- protected connection plugs, which electrically isolates the measurement of AC current without interruption
Product Specification
Brand |
Rishabh |
Product Type |
Clamp On Current Transformer |
Product Model |
RISH Clip on CT |
Nominal Primary Current |
4-300 A AC |
Output Signal |
1mA AC / A AC |
Used With |
Rish multi 12s |
Transmission Ratio Input:Output |
1000:1 |
Accuracy / Maximum Error |
Class 1 ( 1.25 VA) (For Current Range From 4A to 300A, 50Hz) |
Maximum Operating Voltage |
CAT III 600 V As Per IEC-61010 |
Frequency Range |
40Hz...1kHz |
Jaw Opening / Conductor Diameter |
35mm / Diameter 35mm |
Application |
The
Current Transformers Are Used For Electrically Isolated
Measurement It Is Possible To Measure AC current without interrupting the current conducting cable and bus bars via hard wired leads with contact protected plugs |
Cable Length |
1.5 meter |
Dimensions(W X H X D) |
(84 X 39 X 202)mm |
Weight |
Approx 500 gms |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Clamp On Current Transformer |
Manufacturer Details |
Rishabh Enterprises, 16/4, Rani Jhansi Road, Behind Guru Nanak Bearing Marketing, Motia Khan, Pahar Ganj, New Delhi , Central Delhi, Delhi-110055, India |
Packer Details |
Rishabh Enterprises, 16/4, Rani Jhansi Road, Behind Guru Nanak Bearing Marketing, Motia Khan, Pahar Ganj, New Delhi , Central Delhi, Delhi-110055, India |
Country of Origin |
India |
