SKU # 1000061625

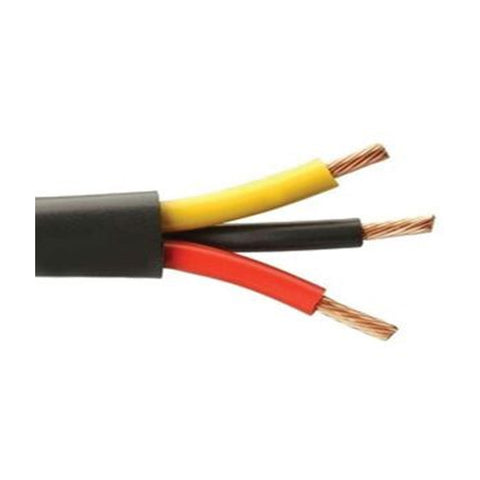

RR KABEL 3Core 1Sq.mm Flexible Cable 100meter
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
These cables are designed for residential and commercial infrastructure
-
They serve as the connecting medium in power and control panels, cabinets & switch gears. They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections
-
PVC insulated & sheathed multi core cables suitable for all general purpose wirings for max. operating temperature of 70oC.
Product Specification
|
Brand |
RR KABLE |
|
Product Type |
Flexible Cable |
|
Nominal Area (Sq. mm) |
1 |
|
Cable Length |
100 Meter |
|
No of Cores |
3 |
|
Current |
13 Amps |
|
Colours |
Black Grey White |
|
Nominal Insulation Thickness (mm) |
0.60 |
|
Max. D.C. Conductor Resistance at 20°C(?/km) |
19.5 |
|
Nominal Thickness of Sheath |
0.9 |
|
Maximum Overall Dimensions (mm) |
8.1 |
|
Conductor |
Electrolytic grade annealed copper Class 5 as per IS 8130 |
|
Voltage Rating |
Up to and including 1100V |
|
Approvals |
IS 694 marked, FIA/TAC |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
3 Core Flexible Cables 100 Meter |
Manufacturer Details |
RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com |
Packer Details |
RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com |
Country of Origin |
India |
