SKU # 1000061562

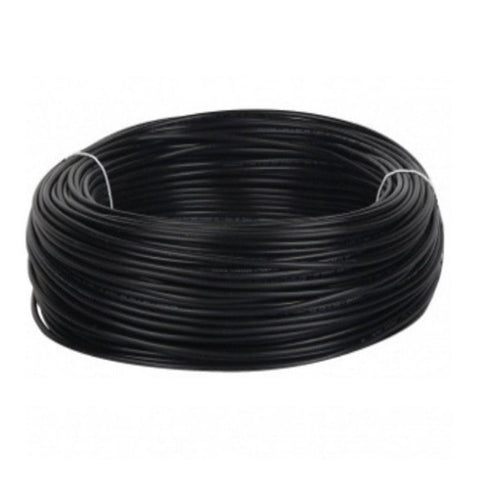

RR KABEL Firex FRLS0H Cable 90meter 6Sq.mm
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
LS0H (Low Smoke Zero Halogen) insulation 90°C
-
Non-Toxic and Non-Corrosive
-
Does not propagate flame and fire
-
Application
-
These cables are ideal for domestic applications, conduit wiring and fixed, protected installations
-
Apart from residential and commercial properties, these cables are best suited for Auditoriums, Hospitals, Hotels, Schools, Stadiums and all constructions for Public usage
-
These cables are ideal for use in environments where high-performance, reliability and safety is a norm
-
Conductor
-
Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility
-
The strands are twisted with high precision to impart circularity for the conductor
-
Insulation
-
Polyolefin cross linked EI5 to BS EN 50363-5 Low Smoke Zero Halogen (LS0H).
-
Insulation Conformity
-
EN 60332-1-2, EN 60332-3 & EN 60754-1 & 2
-
Marking
-
The cables are marked 'FIREX LS0H'
Product Specification
|
Brand |
RR KABLE |
|
Product Type |
FRLS0H(Firex) Cable |
|
Nominal Area (Sq. mm) |
6 |
|
Cable Length |
90 Meter |
|
Colours |
Black Green Red Blue Yellow |
|
Nominal Insulation Thickness (mm) |
0.8 |
|
Number *Nominal Dia. of Strands |
84/0.3 |
|
Approx. Overall Diameter (mm) |
4.6 |
|
Max. DC Conductor Resistance at 20°C (Ω/km) |
3.30 |
|
Current Rating (Amps) |
Casing : 53 Concealed : 43 |
|
Standard |
BS EN 50525-3-41 |
|
Temperature range |
-15°C to +90°C |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
FRLS0H Cable |
Manufacturer Details |
RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com |
Packer Details |
RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com |
Country of Origin |
India |
