SKU # 1000061567

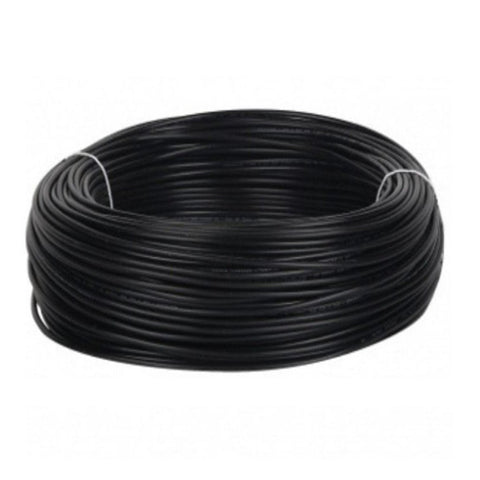

RR KABEL Unilay Heat Resistant Flame Retardant(HRFR) Cable 90meter 1Sq.mm
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
India’s 1st Heat Resistant and Flame Retardant REACH and RoHS Compliant Cable with Unilay Conductor
-
No Loose Contacts, No Broken Ends
-
No Sparking and Overheating
-
REACH,CE,ROHS and CPR Compliant
-
Anti-Rodent, Anti-Termite
-
100% Electrolytic Copper
-
More than 101% Conductivity
-
Application
-
Suitable for use in conduit and for fixed, protected installation, ideal for high density wiring
-
Conductor
-
Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility
-
The drawn strands are uni-laid with high precision and compacted
-
Thus forming a perfectly circular conductor which enables reduction in overall diameter for space saving in high density wiring
-
Conductor Speciality
-
The strands do not get cut when stripping the insulation
-
The conductor offers perfect contact at pins, terminals and sockets
-
Thus, eliminating spot heating and sparking
-
Insulation
-
Specially formulated heat resistant & flame retardant PVC insulation is used
-
The HR FR property retards the propagation of flame without compromising safety
-
Insulation Conformity
-
IS 5831, Type C - HR 85°C + FR
-
Marking
-
The cables are printed with marking of 'RR-UNILAY HR FR’
Product Specification
|
Brand |
RR KABLE |
|
Product Type |
Heat Resistant Flame Retardant(HRFR) Cable |
|
Nominal Area (Sq. mm) |
1 |
|
Cable Length |
90 Meter |
|
Colours |
Black Green Red Blue Yellow |
|
Nominal Insulation Thickness (mm) |
0.7 |
|
Number *Nominal Dia. of Strands |
37/0.20 |
|
Approx. Overall Diameter (mm) |
2.6 |
|
Max. DC Conductor Resistance at 20°C (Ω/km) |
19.5 |
|
Current Rating (Amps) |
Casing : 14 Concealed : 13 |
|
Approvals |
IS 694 marked, FIA / TAC |
|
Voltage Grade |
Up to and including 1100V |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
HRFR Cable |
Manufacturer Details |
RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com |
Packer Details |
RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com |
Country of Origin |
India |
