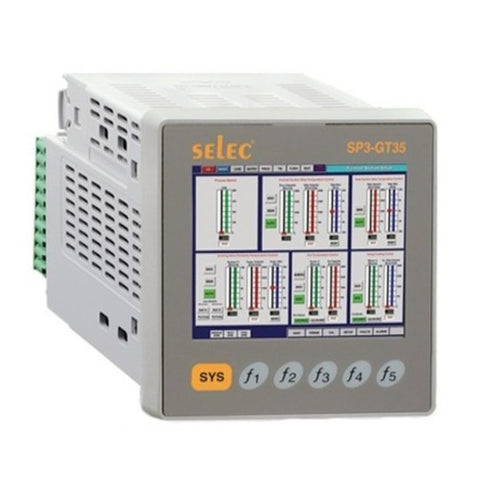

Selec PLC Flexible IO Solution FLEXYS GT35

Selec PLC Flexible IO Solution FLEXYS GT35

Visit the Selec Store

₹ 11,060.00

Quantity

Pack Qty : 1.0



Delivery Availability

Offers and Coupons

Dussehra Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
GND100
Above ₹14,000
Use
GND200
Above ₹21,000
Use
GND300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 3.5" LCD with Touch Screen

  • Flexible I/O Card selection

  • Real Time Clock

  • Expandable

  • Maximum Counting Frequency

  • FC0 (I0 & I1) & FC1 (I2 & I3) - 5KHz (on power supply card only), Normal Digital Inputs – 30Hz

  • Analog Inputs

  • 3 / 4 / 6 Channels per card (TC, RTD, 0-10V, 0 to 20mA)

  • Relay Outputs

  • 4 / 8 per card, NO type 5A @ 230V AC / 30V DC (Resistive)

  • Resolution

  • 14 Bit (0.0 to 100.0% = 0 to 10.000V, 0.0 to 100.0% = 0 to 20.000mA)

Product Specification

Brand

Selec

Product Code

FLEXYS GT35

Product Type

Flexible IO Solution

Size

99(W) x 95.6H) x 90.5(D) mm

Display

TFT 3.5" diagonal Touch screen, Resolution 320x240

No Of Keys

5 function keys +1 System Key

I/Os

3 I/O slots (Please refer I/O card for Flexys series)

Digital Inputs

4 / 10 /14 per card, PNP (6 to 30V DC)

Resolution

12 Bit

Transistor Outputs

8 per card, Source type 100mA @ 24V DC

Analog Outputs

2 / 4 Channels per card (0 - 10V, 0 - 20mA)

Program Memory

221K

Expansion

Yes

Communication Interface

RS485 MODBUS RTU Protocol

RTC

Yes

Baudrate

NA

Response Time

NA

Supply Voltage

18-30V DC,100-240V AC 50 / 60Hz

Mounting Type

Panel Mount

Warranty

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

PLC Flexible IO

Manufacturer Details

Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com

Packer Details

Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com

Country of Origin

India
