SKU # 1000140154

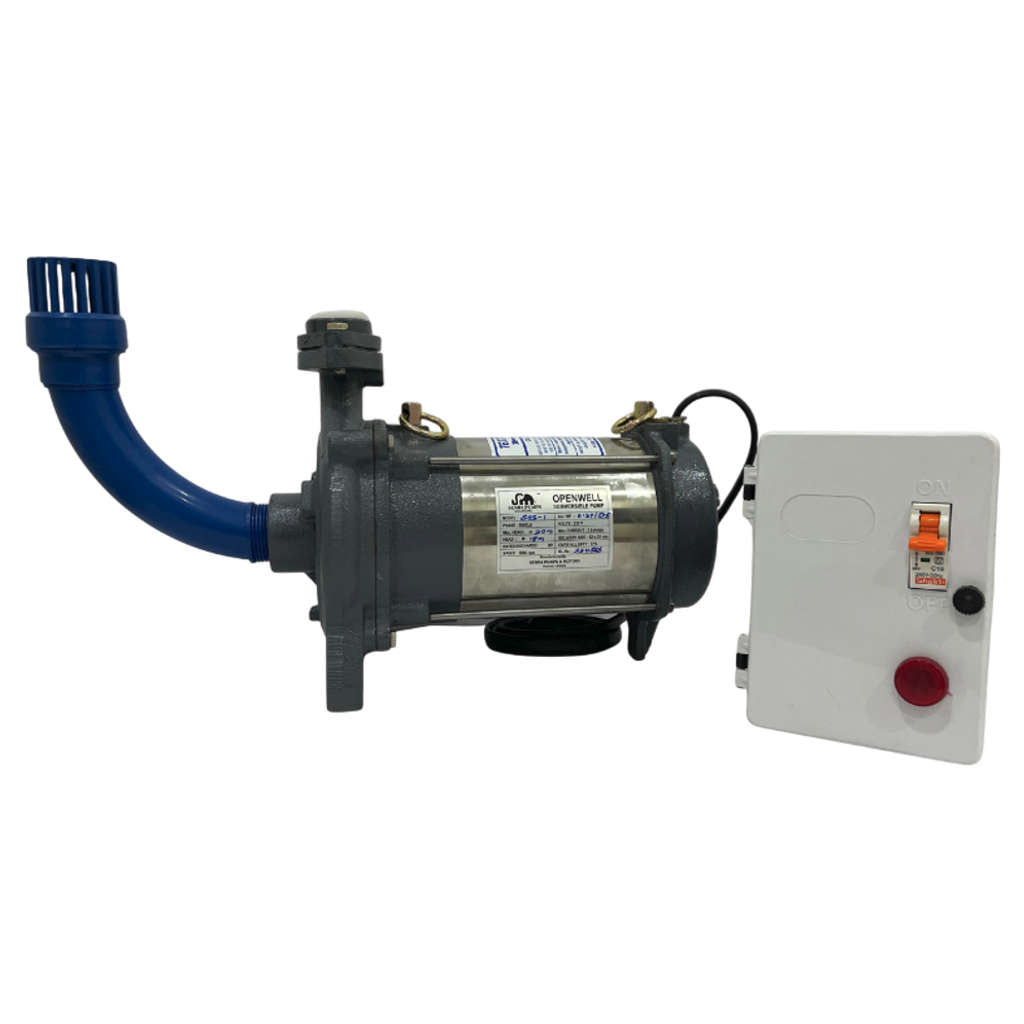

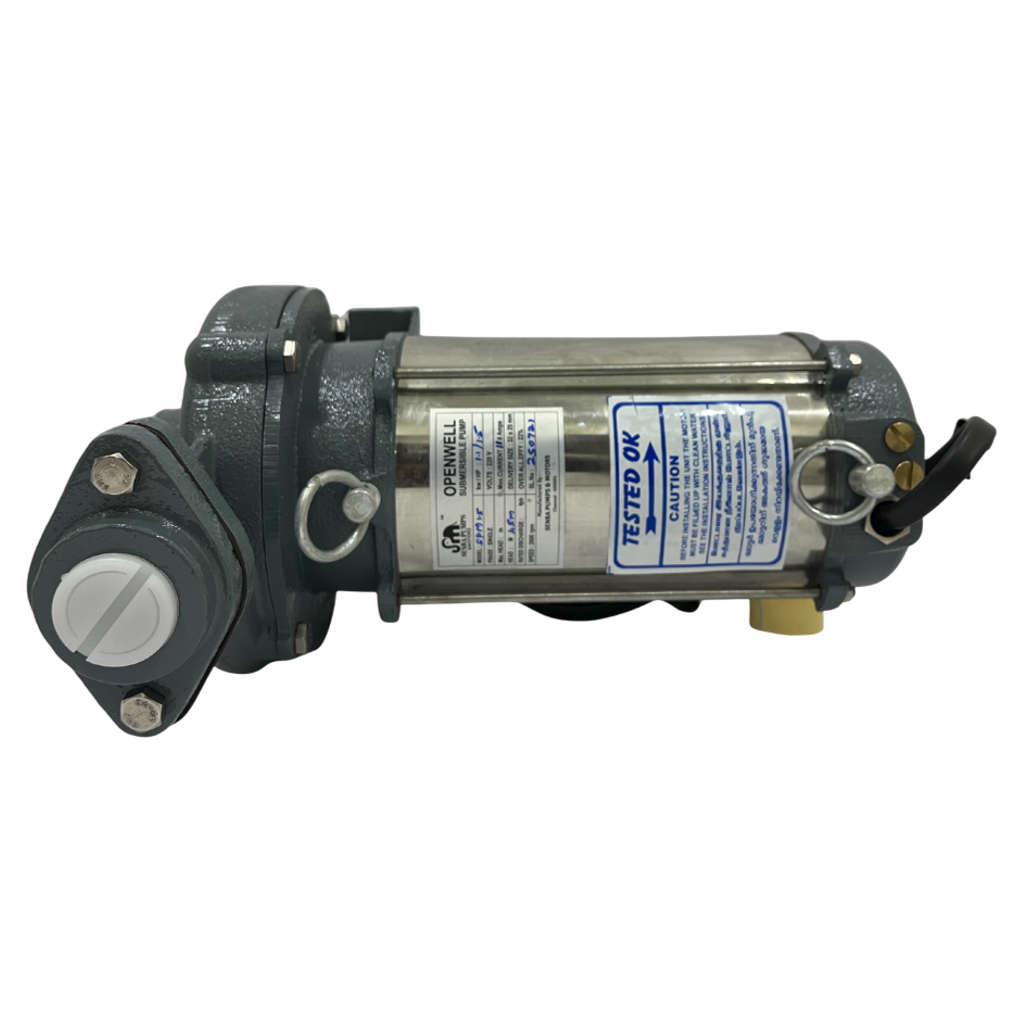

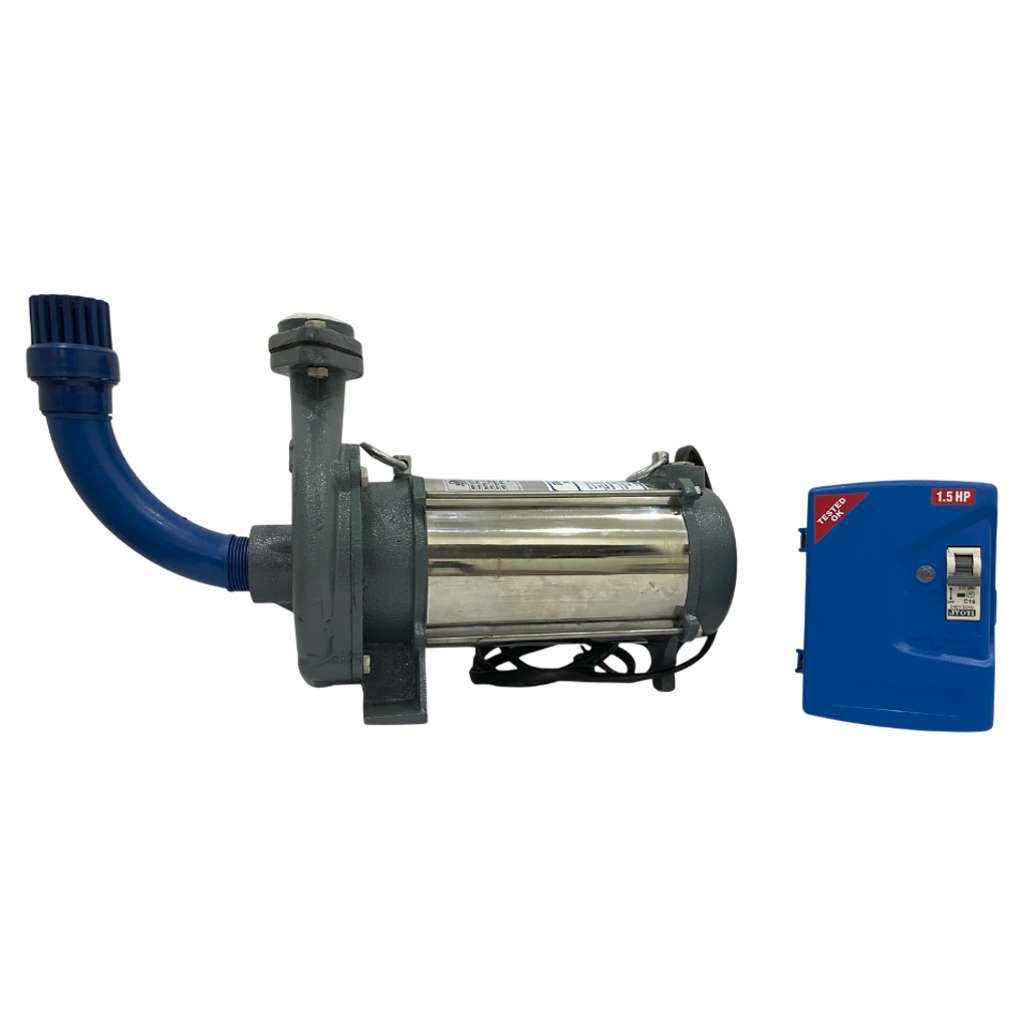

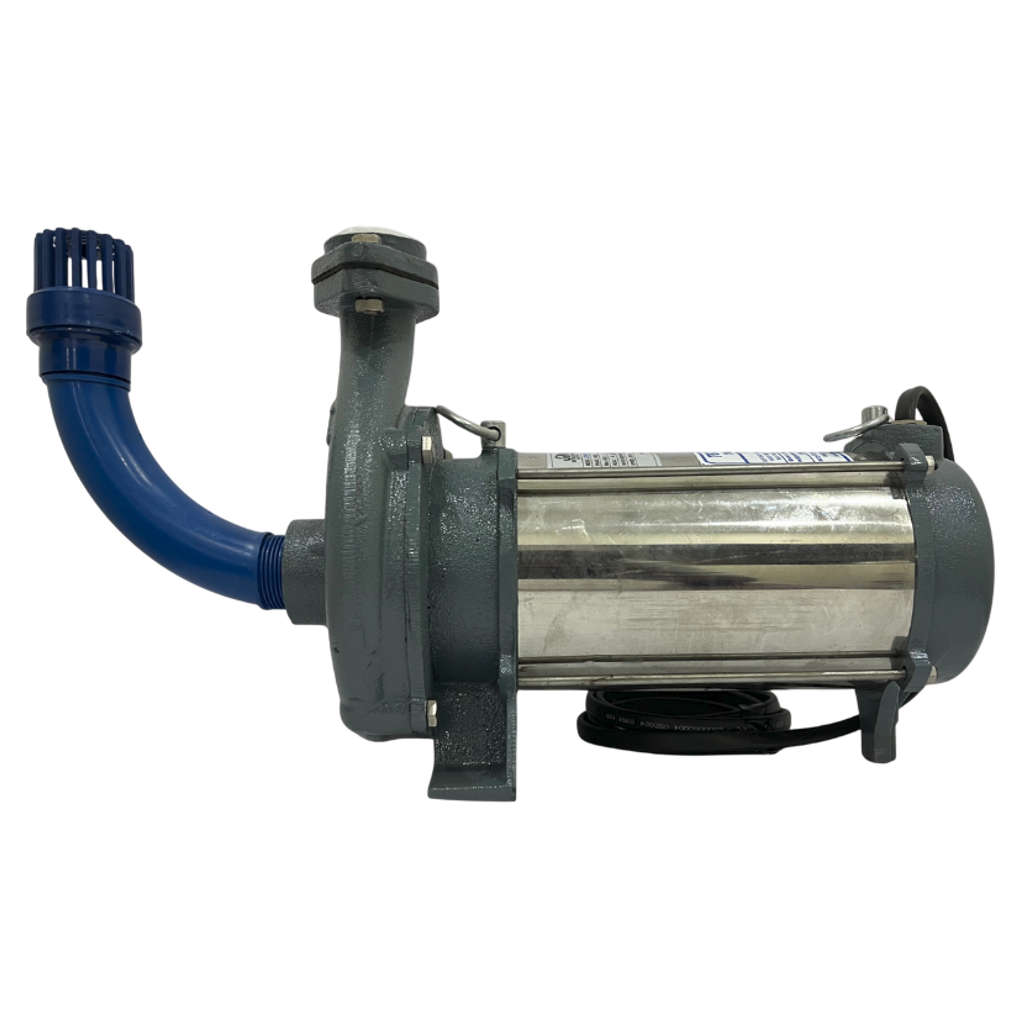

Senba Openwell Submersible Pump Single Phase 1.5 HP SOM-150
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
An open well submersible pump is a fully submerged, self-priming pump designed to lift water from sources like open wells, lakes, and tanks
It works by using a motor to power an impeller, which spins to create centrifugal force, pushing water up through a discharge pipe
This pump type is ideal for applications with fluctuating water levels and provides high efficiency and reliability for agricultural, domestic, and industrial water supply needs
Applications
Residential, construction site
booster application, water feeding in solar system
-
Gardens, small lawn sprinklers, foundation
Product Specification
| Brand | Senba |
| Product Type | Submersible Pump |
| Product Model | SOM-150 |
| Technical Specifications | |
| Power | 1.5 HP |
| Speed | 2900 RPM |
| Voltage Range | 180v-240v (1ph)—50 HZ |
| Duty | S1 ( Continuous) |
| Protection | IP58 |
| Insulation | B Class |
| Pipe Size | 25 *25 mm |
| Head Range | 6-36 mtr |
| Flow Range | 20 to 200 LPM |
| Head (m) | Discharge (LPM) |
| 6 | 180 |
| 12 | 160 |
| 15 | 140 |
| 18 | 120 |
| 21 | 100 |
| 24 | 70 |
| 27 | 50 |
| 30 | 30 |
| 36 | 20 |
| Operating Conditions | |
| Maximum Liquid Temperature | 50 deg cel |
| Maximum Ambient Temperature | 40 deg cel |
| Material | |
| Pump Casing & Flanges | Cast iron |
| Motor Body | ss 304 |
| Impeller | ss 304 |
| Shaft | ss 410 |
| Mechanical Seal | oil seal |
| Winding | Copper |
| bearing | thrust bearing |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 35 x 25 x 36 |
| Unit of Measurement | 1 Piece |
| Weight | 8.8 kg |
| Generic Type | Openwell Submersible Pumps |
| Manufacturer Details | Senba Pumps & Motors 15/29, Thambuchetty Street Support: 9090909090 Email: senbapumpsandmotors@gmail.com |
| Packer Details | Senba Pumps & Motors 15/29, Thambuchetty Street Support: 9090909090 Email: senbapumpsandmotors@gmail.com |
| Country of Origin | India |
