SKU # 1000138747

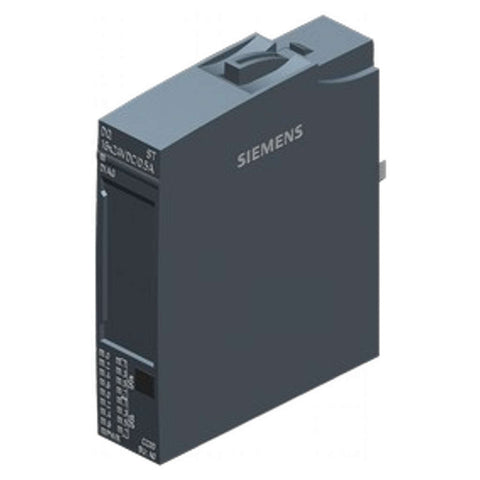

Siemens Digital Output Module 6ES71326BH010BA0

Siemens Digital Output Module 6ES71326BH010BA0

Visit the Siemens Store

₹ 15,095.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The Siemens Digital Output Module 6ES71326BH010BA0 is a component used in industrial automation systems

  • It is designed for controlling digital output signals in programmable logic controllers (PLCs)

  • It is used to control various digital devices, such as solenoids, lights, or other actuators, based on PLC commands

  • Warranty and support will be provided by vendor

  • Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand

Siemens

Product Type

Digital Output Module

Product Model

6ES71326BH010BA0

General Information

Product Type Designation

DQ 16x24VDC/0.5A ST

Hw Functional Status

From FS03

Product Function

I&M Data

Yes; I&M0 to I&M3

Isochronous Mode

No

Supply Voltage

Rated value (DC)

24 V

Permissible Range, Lower Limit (DC)

19.2 V

Permissible Range, Upper Limit (DC)

28.8 V

Reverse Polarity Protection

Yes

Power Loss, Typ

1 W

Isolation

Isolation Tested With

707 V DC (type test)

Address Area

Address Space Per Module, Maximum

2 byte; + 2 bytes for QI information

Digital Outputs

Type Of Digital Output

Source output (PNP, current-sourcing)

Number Of Digital Outputs

16

Current-Sinking

No

Current-Sourcing

Yes

Digital Outputs, Parameterizable

Yes

Limitation Of Inductive Shutdown Voltage To

Typ. L+ (-50 V)

Controlling A Digital Input

Yes

Switching Capacity Of The Outputs

With Resistive Load, Maximum

0.5 A

On Lamp Load, Maximum

5 W

Load Resistance Range

Lower Limit

48 Ω

Upper Limit

12 kΩ

Output Current

For Signal "1" Rated Value

0.5 A

For Signal "0" Residual Current,Maximum

0.1 mA

Switching Frequency

With Resistive Load, Maximum

100 Hz

With Inductive Load, Maximum

2 Hz

On Lamp Load, Maximum

10 Hz

Ambient Conditions

Ambient Temperature During Operation

Horizontal Installation, Minimum

-30 °C; < 0 °C as of FS03

Horizontal Installation, Maximum

60 °C

Vertical Installation, Minimum

-30 °C; < 0 °C as of FS03

Vertical Installation, Maximum

50 °C

Dimensions

Width

15 mm

Height

73 mm

Thickness

58 mm

Weight (Approximate)

30 g
