SKU # 1000027264

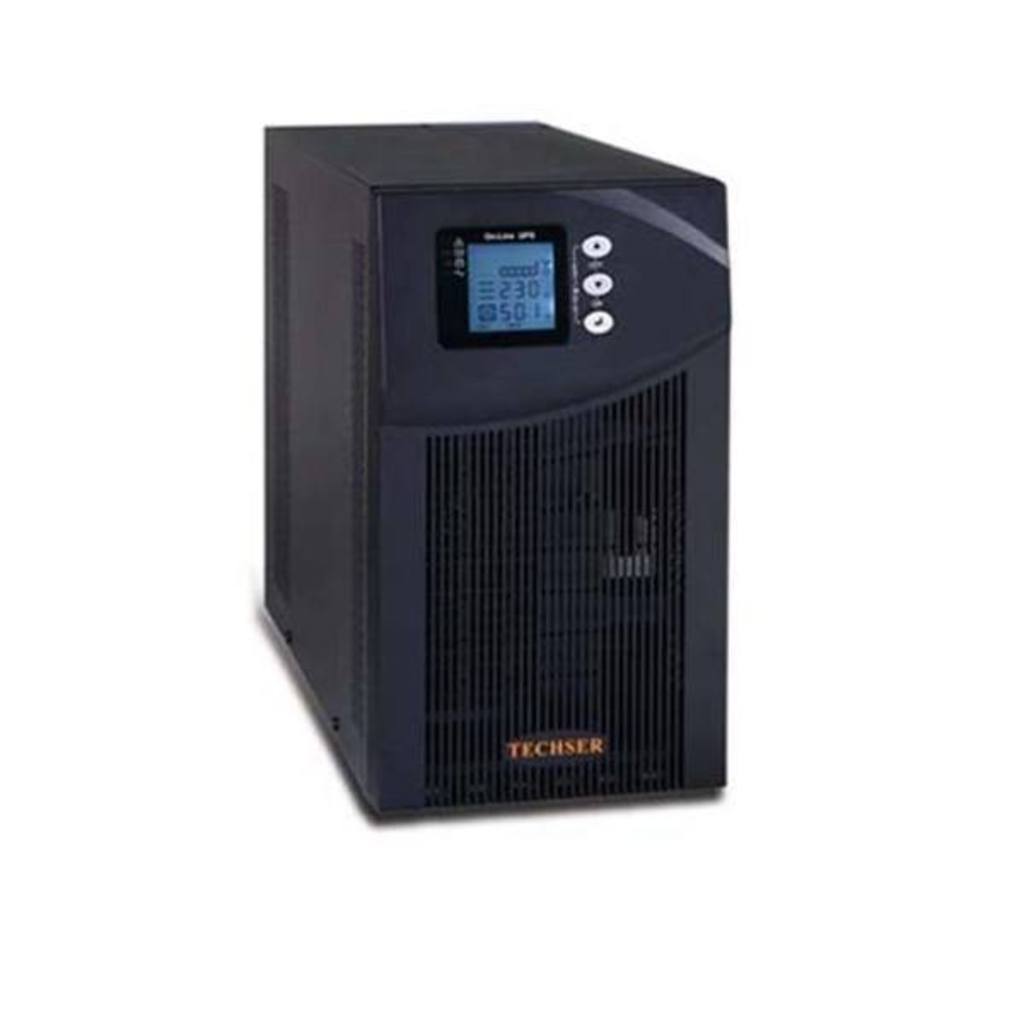

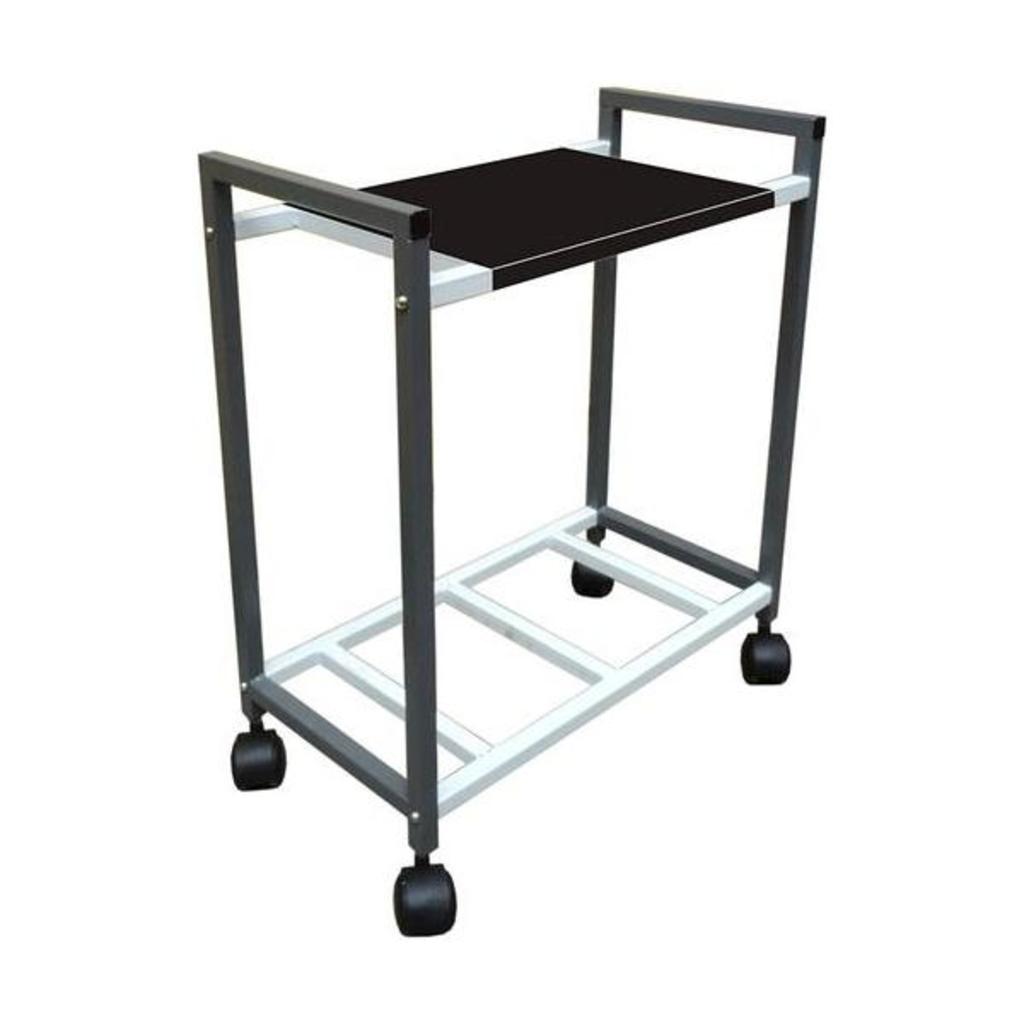

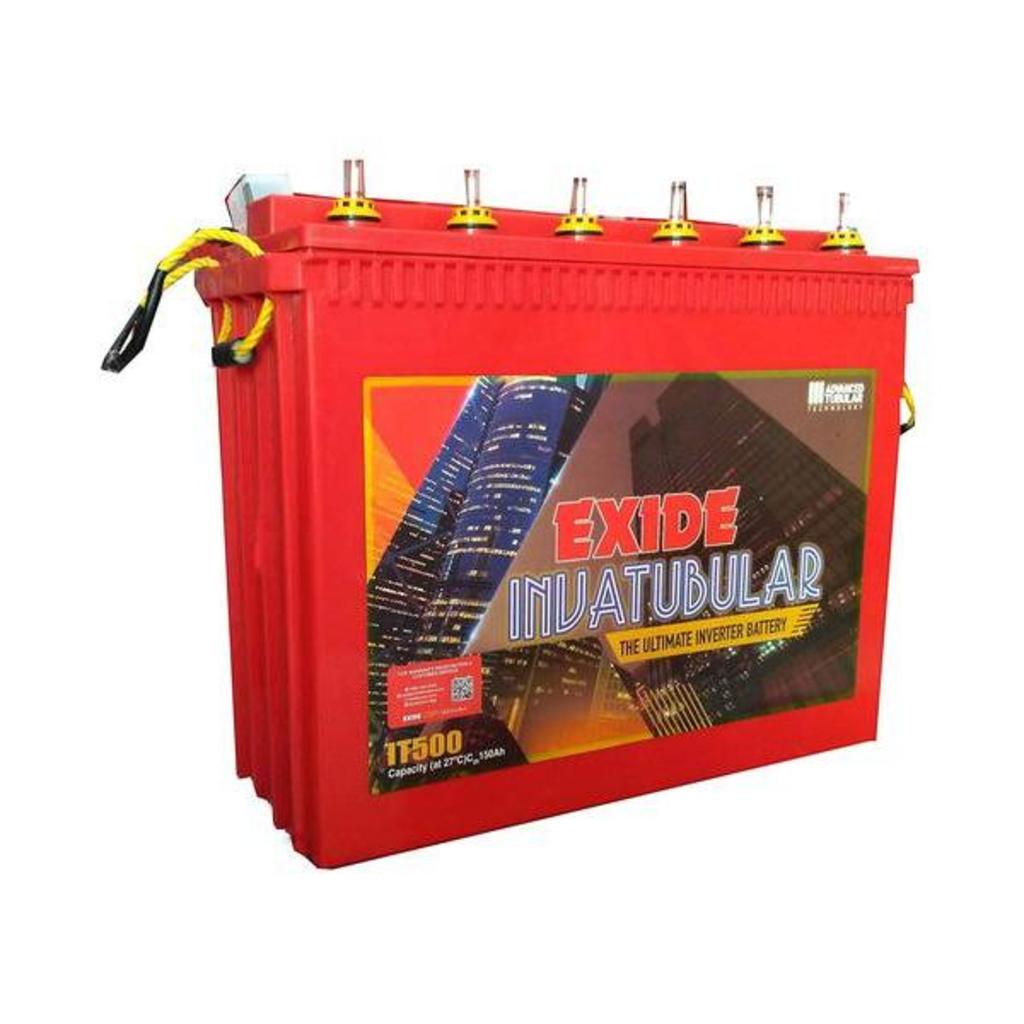

Techser Online UPS Tech Lite Series the phase Input & Single Output IGBT Base Model witb 12 V/6EL100AH Exide tubular Battery-30No's with battery stand 15 KVA 12 KW

Techser Online UPS Tech Lite Series the phase Input & Single Output IGBT Base Model witb 12 V/6EL100AH Exide tubular Battery-30No's with battery stand 15 KVA 12 KW

Visit the Techser Store

₹ 469,040.00

Quantity

Pack Qty : 1.0



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Double Conversion DPS controlled

  • 3 phase systems with PRS, EPO features

  • Low iTHD High Input power factor and efficiency

  • Advanced 3 Phase Power protection For

  • Small-Medium Server Rooms, Data Centers, Industrial, Telecom and other mission-critical Applications

  • Protections

  • Input phase reverse / failure

  • Input / Output frequency out of range

  • DC component at output voltage

  • Over Temperature

  • DC Low

Product Specification

Brand

Techser

Model

Tech lite Series

Product Type

UPS

Capacity VA

15 KVA

Power Watt

12 KW

Input Voltage Range

400 VAC -15% + 18%, 3P+N+PE

Input Frequency Range

45-65 Hz(Selectable)

Input Power Factor

At full Load>0.99

Total Harmonic Distortion

<3%

Rectifier

IGBT

Output Voltage

400 VAC 3P+N ± 1% Static

Output frequency

50 Hz ± 0.5% Synchronous with the Network

Output Voltage THD

Linear Load < 2%? / Non-Linear Load < 6%

Crest Factor (CF)

3:1

Overload Capacity

125% load for 10min, 150% load for 1min

Recovery

0%-100% load, maximum output tolerance ± 5%, Recovery time <40ms

Efficiency

>93%

DC Volts

± 384V

Battery Charger Rating

Nominal 0.1 C

Battery Power

Maximum 25% of the Rated power of UPS

Communication Port

Standard:RS 232, Optional:RS 485, SNMP adapter

Dry Contact

Optional

Software

SEC, TELNET

Quality

ISO 9001, ISO 14001, ISO 18001

Safety

EN62040-1-1, IEN60950

EMC/LVD

EN62040-2, Class A

Technology

Online, Double Conversion, DSP Controlled, 3Phase-3Phase UPS system

Operating Temperature

For UPS 0°C ~ 40°C

Storage Temperature

For UPS-15°C ~ 45°C, For Batteries-10~60°C

Protection Class

IP20

Chassis

Anti-Static Paint Protection

Humidity

0 – 95%

Altitude

<1000m, Correction Factor 1, <2000m, Correction Factor >0.92, <3000m; Correction Factor >0.84

Alerts

500 Event Log.(Operational Status Record)

Parallel Operation

Parallel Redundant Operation up to 8Nos

Manual and Static Bypass

Buit In

EPO (Emergency power Off)

Standard

Isolation Transformer

Optional

Weight

115 Kg

Dimensions (W x D x H) mm

460 x 805 x 1190 mm

Warranty

3 Years


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

UPS

Manufacturer Details

Techser House #12/1, 5th cross, MES Ring Road Sharadhamba Nagar,Jalahalli Bangalore – 560 013 Phone : 080 28384854 Email : bangalore@techser.com

Packer Details

Techser House #12/1, 5th cross, MES Ring Road Sharadhamba Nagar,Jalahalli Bangalore – 560 013 Phone : 080 28384854 Email : bangalore@techser.com

Country of Origin

India
