Available!
SKU # 1000074778

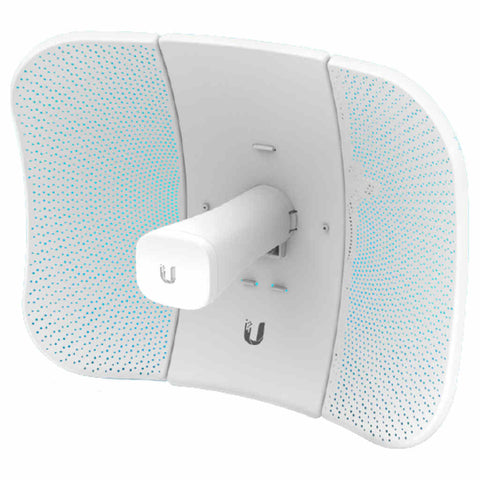

Ubiquiti Litebeam Tower Modem Ap/Station With Integrated Antenna Including Poe Injector 5GHz 450Mbps LBE-5AC-Gen2

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Lightweight, Low-Cost Solution
-
Full Adjustment Flexibility
-
Quick Assembly And Installation
-
Improved Noise Immunity
-
The Litebeam 5ac Gen 2 Directs Rf Energy In A Tighter Beamwidth
-
With The Focus In One Direction, Thelitebeam 5ac Gen 2 Blocks Or Spatially Filters Out Noise, So Noise Immunity Is Improved
-
This Feature Is Especially Important In An Area Crowded With Other Rf Signals Of The Same Or Similar
-
Frequency
-
Integrated Design
-
Ubiquiti’s Innerfeed Technology Integrates The Radio Into The Feedhorn Of An Antenna, So There Is No Need For A Cable
-
This Improves Performance Because It Eliminates Cable Losses Featuring High Performance And
-
Innovative Mechanical Design, The Litebeam 5ac Gen 2 Is Versatile And Cost Effective To Deploy
-
Software Os8
-
Air Os8 Is The Revolutionary Operating System For Ubiquiti Airmax Ac Products
-
Powerful Wireless Features
-
Access Point Ptmp Airmax Mixed Mode
-
Airmax Ac Protocol Support
-
Long-Range Point-To-Point (PtP)
-
Link Mode
-
Selectable Channel Width
-
Ptp: 10/20/30/40/50/60/80 Mhz
-
Ptmp: 10/20/30/40 Mhz
-
Automatic Channel Selection
-
Transmit Power Control : Automatic/Manual
-
Automatic Distance Selection (ACK Timing)
-
Strongest Wpa2 Security
-
Usability Enhancements
-
Airmagic Channel Selection Tool
-
Redesigned User Interface
-
Dynamic Configuration Changes
-
Instant Input Validation
-
Html5 Technology
-
Optimization For Mobile Devices
-
Detailed Device Statistics
-
Comprehensive Array Of Diagnostic Tools, Including Rf Diagnostics And Airview Spectrum Analyzer
-
Installation Charges Will Be Applicable An Actual
Product Specification
Brand |
Ubiquiti |
|||||
Product Type |
Tower Modem |
|||||
Product Model |
Lbe-5ac-Gen2 |
|||||
Power Supply |
24V, 0.3A Gigabit PoE Adapter (Included) |
|||||
Max. Power Consumption |
7W |
|||||
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|||||
Supported Voltage Range |
24V ± 10% |
|||||
Gain |
23 dBi |
|||||
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|||||
Processor Specs |
MIPS 74Kc |
|||||
Memory |
64 MB DDR2 |
|||||
LEDs |
Power, Ethernet |
|||||
Enclosure Characteristics |
Reflector (SGCC 0.6T) / Plastic: PC |
|||||
Mounting |
Pole-Mounting Kit (Included) |
|||||
Wind Loading |
275 N @ 200 km/h (61.8 lbf @ 125 mph) |
|||||
Wind Survivability |
200 km/h (125 mph) |
|||||
ESD/EMP Protection |
± 24 kV Contact / Air |
|||||
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|||||
Operating Humidity |
5 to 95% Noncondensing |
|||||
Certifications |
CE, FCC, IC |
|||||
Channel Sizes |
PtP Mode |
PtMP Mode |
||||
10/20/30/40/50/60/80 MHz |
10/20/30/40 MHz |
|||||
Operating Frequency (Mhz) | ||||||
Worldwide |
5150 – 5875 |
|||||
USA |
U-NII-1: 5150 - 5250 |
U-NII-2A: 5250 - 5350 MHz |
U-NII-2C: 5470 - 5725 MHz |
U-NII-3: 5725 - 5850 |
||
Management Radio (mhz) | ||||||
Worldwide |
2412 - 2472 |
|||||
USA |
2412 - 2462 |
|||||
Output Power: 25 Dbm | ||||||
Tx Power Specifications | ||||||
Modulation |
Data Rate |
Avg. TX |
Tolerance |
|||
Air MAX AC |
1x BPSK (1⁄2) |
25 dBm |
± 2 dB |
|||
2x QPSK (1⁄2) |
25 dBm |
± 2 dB |
||||
2x QPSK (3⁄4) |
25 dBm |
± 2 dB |
||||
4x 16QAM (1⁄2) |
25 dBm |
± 2 dB |
||||
4x 16QAM (3⁄4) |
25 dBm |
± 2 dB |
||||
6x 64QAM (2/3) |
25 dBm |
± 2 dB |
||||
6x 64QAM (3⁄4) |
24 dBm |
± 2 dB |
||||
6x 64QAM (5/6) |
23 dBm |
± 2 dB |
||||
8x 256QAM (3⁄4) |
21 dBm |
± 2 dB |
||||
8x 256QAM (5/6) |
21 dBm |
± 2 dB |
||||
RX Power Specifications | ||||||
Modulation |
Data Rate |
Sensitivity |
Tolerance |
|||
Air MAX AC |
1x BPSK (1⁄2) |
-96 dBm Min. |
± 2 dB |
|||
2x QPSK (1⁄2) |
-95 dBm |
± 2 dB |
||||
2x QPSK (3⁄4) |
-92 dBm |
± 2 dB |
||||
4x 16QAM (1⁄2) |
-90 dBm |
± 2 dB |
||||
4x 16QAM (3⁄4) |
-86 dBm |
± 2 dB |
||||
6x 64QAM (2/3) |
-83 dBm |
± 2 dB |
||||
6x 64QAM (3⁄4) |
-77 dBm |
± 2 dB |
||||
6x 64QAM (5/6) |
-74 dBm |
± 2 dB |
||||
8x 256QAM (3⁄4) |
-69 dBm |
± 2 dB |
||||
8x 256QAM (5/6) |
-65 dBm |
± 2 dB |
||||
Dimensions |
358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73") |
|||||
Weight |
Without Mount |
800 g (1.76 lb) |
||||
With Mount |
980 g (2.16 lb) |
|||||
Warranty |
1 Years |
|||||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Modems |
Manufacturer Details |
685 Third Avenue, New York New York 10017 |
Importer Details |
RP tech India Ariisto House, 5th Floor, N. S. Phadke Road, Mumbai- 400 069 |
Country of Origin |
New York |
