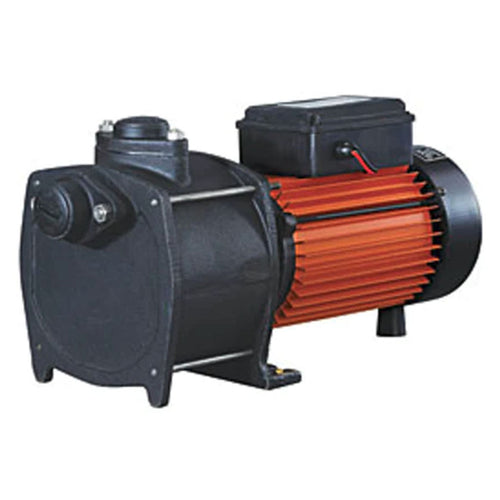

V-Guard 0.5HP Self-Priming Centrifugal Jet Pump VCSW-NH70
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Body: Aluminum extruded motor body- extremely compact and light weight
-
Impeller: NORYL impeller
-
Motor shaft: High Quality alloy steel
-
Motor: The pumps are coupled to high efficient V-Guard induction motors
-
The motors are Totally Enclosed Fan Cooled (TEFC}, Capacitor Start & run type
-
Also, the motors are equipped with Thermal Overload Protector (TOP) to avoid coil burn out
-
Using 99.99% pure super enameled copper wire for motor windings
-
Insulation: Class 'B'
-
Bearings: Double sealed ball Bearings with life lubrication
-
Mechanical Seal: High quality mechanical seal with Graphite face
-
Direction Of Rotation: clockwise, when viewed from motor side Super Suction and Wonder Suction pumps have faster self-priming characteristics compared to other models
-
These pump sets are easy for handling due to light weight
-
Note : Actual product image may vary from that shown in the picture
Product Specification
|
Brand |
V-Guard |
|
Product Type |
Centrifugal Jet Pump |
|
Model |
VCSW-NH70 |
|
Power |
Hp : 0.5 kW : 0.37 |
|
Pipe Size (cm/inch) |
Suction : 2.5/1 Delivery : 2.5/1 |
|
Max. Suction Head (With NRV) |
6m (20ft) |
|
Max. Liquid Temperature |
40°C |
|
Max. Ambient Temperature |
45°C |
|
Speed |
2800 RPM |
|
Version |
Single Phase AC, 50 Hz |
|
Voltage Range |
180 - 240V |
|
Type of Duty |
S1 (Continuous) |
|
|
|
|
Total Head In Meters/Feet |
Discharge In LPH |
|
6/20 |
2170 |
|
9/30 |
2000 |
|
12/40 |
1700 |
|
15/50 |
1300 |
|
18/60 |
950 |
|
21/70 |
500 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Centrifugal Jet Pump |
Manufacturer Details |
V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
Packer Details |
V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
Country of Origin |
India |
