SKU # 1000140907

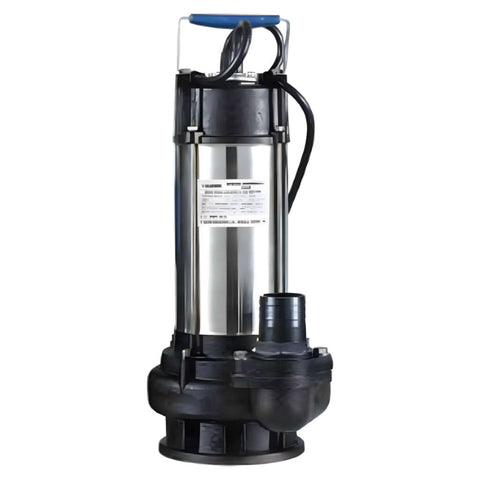

V-Guard Three Phase Sewage Submersible Pump 5 HP VSWST-0560US
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Dry type submersible induction motor (For submersible models)
-
Shaft and fasteners are in stainless steel to enhance life
-
Impeller and casing are coated with chemical resistance coating to improve life and performance
-
Solid handling size up to 20 mm
-
Cable connectors filled with resin to prevent water leakage into the motor through the cable wire
-
Dual mechanical seal prevents water entry into the dry motor portion at two interfaces, one at pump portion to oil chamber and another at oil chamber to dry motor portion
-
Compact in construction
-
High Efficiency
-
Long Durability
-
Note:*Product specifications may vary based on manufacturer update
ProductSpecification
| Brand | V-Guard |
| Product Type | Sewage Pump |
| Product Model | VSWST-0345US |
| Power (HP/kW) | 5 HP / 3.7 kW |
| Water Pipe Size Delivey | 7.5 cm |
| Pump Stage | 1 |
| Rated Current | 8 A |
| Panel Suggested | D.O.L |
| Motor Type | Three Phase |
| Total Head in Metre Vs Discharge in LPH | |
| Total Head (m) | Discharge (LPH) |
| 7 | 58000 |
| 10 | 50000 |
| 12 | 43000 |
| 13 | 40000 |
| 15 | 34000 |
| 16 | 30000 |
| 18 | 20000 |
| Note | Actual product image may vary from that shown on the picture |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 48 x 28 x 20 |
| Unit of Measurement | 1 Piece |
| Weight | 16 kg |
| Generic Type | Submersible Pumps |
| Manufacturer Details | V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
| Packer Details | V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
| Country of Origin | India |
