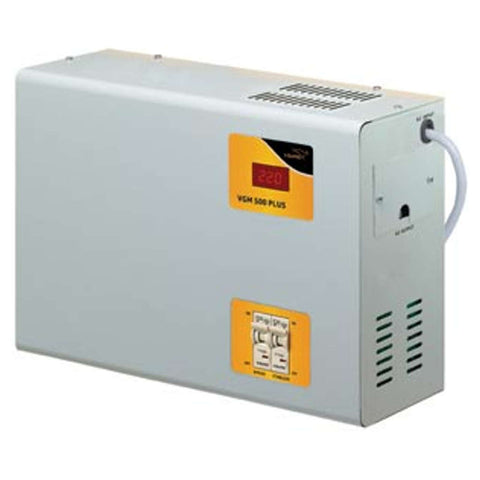

V-Guard VGM 500 Plus Electronic Voltage Stabilizer For Mainline 15A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The VGM 500 Plus from V-Guard is a mainline stabilizer, used in the input power line to ensure that the input voltage is stabilized and does not pass low/high voltages to the loads connected
-
The stabilizer is equipped with a range of excellent technical features like under/over voltage protection, thermal overload protection, micro-controller based fail-safe circuit protection, safe start, etc
-
The VGM 500 Plus is rated for loads up to 15A
-
Wide Input Range
-
The VGM 500 Plus operates over a wide input voltage range of 130-300V, thus making it effective for high voltage fluctuation
-
Under/Over Voltage Protection
-
Electrical devices are designed to operate at a certain standard voltage in order for the product to achieve its specified level of performance, efficiency, safety and reliability
-
Operating an electrical device above or below the specified voltage range can lead to serious problems
-
The VGM 500 Plus features a low/high voltage protection function which protects the connected appliances from these types of failures
-
Digital Display
-
A seven-segment digital display indicates the present status of the stabilizer – the input voltage, output voltage, protection mode enabled like Low Voltage, High Voltage or Over Load cutoff, etc. This helps the user understand the operating status of the stabilizer easily and to be reassured that the connected load, like an AC, is working in a safe voltage range
-
Thermal Overload Protection
-
Under certain conditions, like a short-circuit for example, a component in any of the connected appliances may cause excessive current to be drawn through the stabilizer
-
A thermal sensor in the stabilizer senses this overload condition and immediately disconnects the load to protect both the appliance and the stabilizer itself from further damage
-
Microcontroller Based Fail-safe Protection
-
The highly efficient micro-controller in the VGM 500 Plus ensures that voltage correction is right at the start, between the source of the main supply and the distribution point, which is therefore far more effective, and ensures enhanced life of the connected appliances
-
Safe Start
-
A unique Initial Time Delay function is built into the VGM 500 Plus which delays the output by 4 to 6 seconds when the stabilizer is switched on or during frequent restarts, thus providing added safety for the connected appliances
Product Specification
|
Brand |
V-Guard |
|
Product Type |
Voltage Stabilizer |
|
Product Model |
|
|
Capacity |
15 Ampere |
|
Working Range(Input) |
130V – 300V |
|
Frequency |
50 Hz |
|
Application |
Mainline |
|
Display Type |
Digital |
|
Time Delay |
4 – 6 sec initial time delay |
|
Cabinet Material |
Metal |
|
Warranty |
2 Years |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Stabilizers |
Manufacturer Details |
V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
Packer Details |
V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
Country of Origin |
India |
