SKU # 1000025234

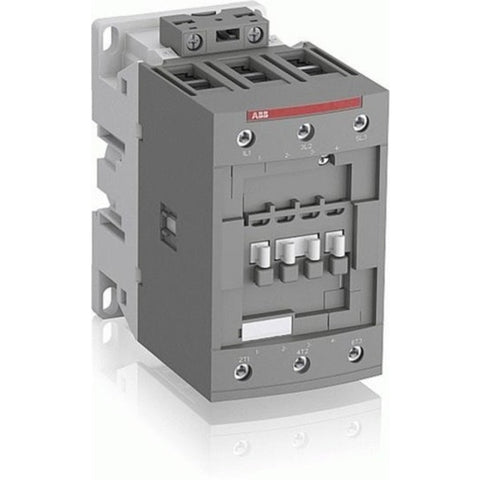

ABB AC Type  Contactor Four Pole A45-22-00

ABB AC Type Contactor Four Pole A45-22-00


₹ 5,804.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • A45 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC

  • The contactors can also be used for many other applications such lighting... The A... series 4-pole contactors are of the block type design

  • Main poles and auxiliary contact blocks: 2 N.O. + 2 N.C. main poles, front and side-mounted add-on auxiliary contact blocks

  • Control circuit: AC operated with laminated magnet circuit

  • Number of Main Contacts NO : 2

  • Number of Main Contacts NC : 2

  • Number of Auxiliary Contacts NO : 0

  • Number of Auxiliary Contacts NC : 0

  • Rated Operational Voltage : Main Circuit 1000 V

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 100 A

  • Short-Circuit Protective Devices : gG Type Fuses 80 A

  • Rated Impulse Withstand Voltage (Uimp) : 8 kV

  • Mechanical Durability : 10 million

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Terminal Type : Screw Terminals

  • Product Net Width : 92 mm

  • Product Net Depth / Length : 119.5 mm

  • Product Net Height : 110 mm

  • Product Net Weight : 1.4 kg

Product Specification

Rated Voltage

Product Id

Type

110V 50Hz / 110-120V 60Hz

1SBL331501R8400

A45-22-00 coil

220-230V 50Hz / 230-240V 60Hz

1SBL331501R8000

A45-22-00 coil

24V 50Hz / 24V 60Hz

1SBL331501R8100

A45-22-00 coil

400-415V 50Hz / 415V-440 60Hz

1SBL331501R8600

A45-22-00 coil
