Available

SKU # 1000021973

ABB-DC-Type-Contactor-Four-Pole-AF80-22-1000021973

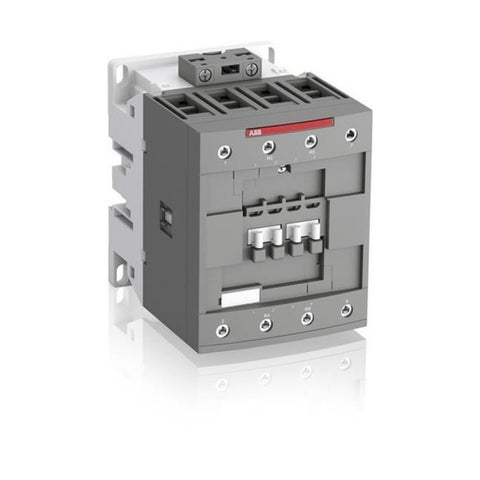

ABB DC Type Contactor Four Pole AF80-22


₹ 12,490.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • AF80 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max

  • Number of Main Contacts NO : 2

  • umber of Main Contacts NC : 2

  • Number of Auxiliary Contacts NO : 0

  • Number of Auxiliary Contacts NC : 0

  • Rated Operational Voltage : Main Circuit 690 V

  • Rated Frequency (f) : Main Circuit 50 / 60 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 125 A

  • Rated Impulse Withstand Voltage (Uimp) : 8 kV

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Terminal Type : Screw Terminals

  • Product Net Width : 90 mm

  • Product Net Depth / Length : 116 mm

  • Product Net Height : 125.5 mm

  • Product Net Weight : 1.49 kg

Product Specification

Rated Voltage

Product ID

Description

24-60V

1SBL397501R1100

AF80-22-00-11 24-60V50/60HZ 20-60VDC Contactor

48-130V

1SBL397501R1200

AF80-22-00-12 48-130V50/60HZ-DC Contactor

100-250V

1SBL397501R1300

AF80-22-00-13 100-250V50/60HZ-DC Contactor

250-500V

1SBL397501R1400

AF80-22-00-14 250-500V50/60HZ-DC Contactor
