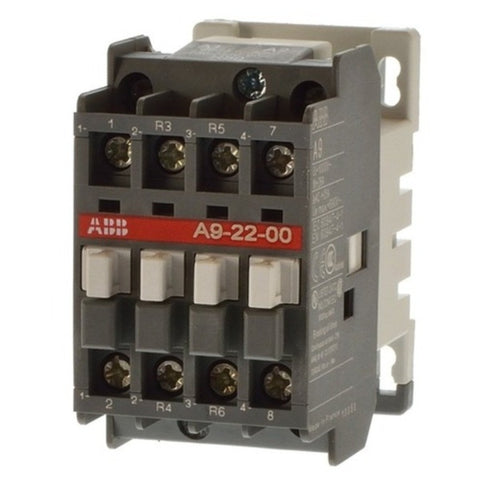

ABB AC Type Contactor Four Pole A9-22-00

Name: ABB AC Type Contactor Four Pole A9-22-00
Brand: ABB
SKU: 1000025214
Price: 1785.0 INR
Availability: InStock

Visit the ABB Store

₹ 1,785.00

Quantity



Pack Qty : 1

Delivery Availability

Bestomart Diwali Sale 2025

Use the coupon codes purchase of ₹4,000/- & above

Above ₹2,500
Use

LIGHT100

Above ₹7,500
Use

CRACKER200

Above ₹15,000
Use

SHINE300

Product Description

A 9 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC
The contactors can also be used for many other applications such lighting... The A... series 4-pole contactors are of the block type design
Main poles and auxiliary contact blocks: 2 N.O. + 2 N.C. main poles, front and side-mounted add-on auxiliary contact blocks
Control circuit: AC operated with laminated magnet circuit
Number of Main Contacts NO : 2
Number of Main Contacts NC : 2
Number of Auxiliary Contacts NO : 0
Number of Auxiliary Contacts NC : 0
Rated Operational Voltage : Main Circuit 690 V
Conventional Free-air Thermal Current (I_th) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 26 A
Short-Circuit Protective Devices : gG Type Fuses 25 A
Rated Impulse Withstand Voltage (U_imp) : 8 kV
Mechanical Durability : 10 million
Maximum Mechanical Switching Frequency : 3600 cycles per hour
Terminal Type : Screw Terminals
Product Net Width : 44 mm
Product Net Depth / Length : 74 mm
Product Net Height : 74 mm
Product Net Weight : 0.34 kg

Product Specification

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	4 Pole Contactors
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
