Out of Stock!
SKU # 1000121961

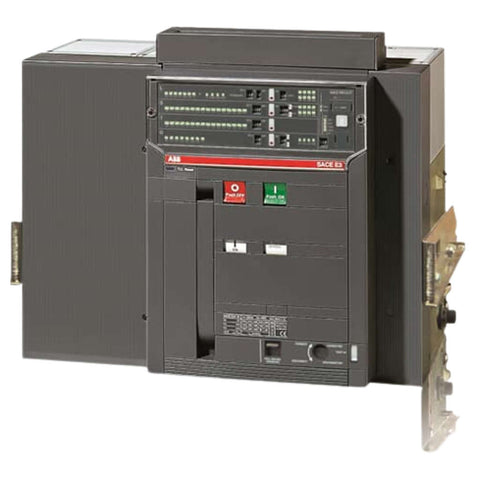

ABB Air Circuit Breaker 4Pole E3N2500PR121/P-LSIGIn 2500A WMP 1SDA056138R1
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductSpecification
| Brand | ABB |
| Product Type | Air Circuit Breaker |
| Product Model | 1SDA056138R1 |
| General Information | |
| Extended Product Type | E3N2500PR121/P-LSIGIn=2500A4pWMP |
| EAN | 8015644574789 |
| Catalog Description | E3N 2500 PR121/P-LSIG In=2500A 4p W MP |
| Long Description | SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E3N 2500A FOUR-POLE OVERCURRENT RELEASE PR121/P-LSIG R2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle Ue = 500 ... 690 V 7000 cycle 20 cycles per hour |
| Mechanical Durability | 20000 cycle 60 cycles per hour |
| Number of Poles | 4 |
| Power Loss | 350 W |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Rated Current (I n) | 2500 A |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (U imp ) | 12 kV |
| Rated Insulation Voltage (U i ) | 1000 V |
| Rated Operational Current (I e ) | 2500 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short- Circuit Breaking Capacity (I cs ) | (220 V AC) 65 kA (230 V AC) 65 kA (380 V AC) 65 kA (400 V AC) 65 kA (415 V AC) 65 kA (440 V AC) 65 kA (500 V AC) 65 kA (660 V AC) 65 kA (690 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA for 3 s 65 kA |
| Rated Ultimate Short- Circuit Breaking Capacity (I cu) | (220 V AC) 65 kA (230 V AC) 65 kA (380 V AC) 65 kA (400 V AC) 65 kA (415 V AC) 65 kA (440 V AC) 65 kA (500 V AC) 65 kA (660 V AC) 65 kA (690 V AC) 65 kA |
| Rated Uninterrupted Current (I u ) | 2500 A |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Version | W |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| Note | Actual product image may vary from that shown on the picture |
| Dimensions | |
| Product Net Width | 558mm |
| Product Net Height | 461mm |
| Product Net Depth / Length | 396.5mm |
| Product Net Weight | 81 kg |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 558 x 461 x 396.5 |
| Unit of Measurement | 1 Piece |
| Weight | 81 kg |
| Generic Type | ACBs |
| Manufacturer Details | ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
| Packer Details | ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
| Country of Origin | India |
